SHOCK ASM. IFS, INTERNALS (7043206)
1
2
3
3
3
3
4
5
6
6
6
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
25
26
27
28
29
30
30
30
31
32
33
34
33
33
1
HOSE ASSEMBLY; 9 IN
1800192
9999999
Not Available
2
LOOP-BODY
1800098
9999999
Not Available
3
END BEARING
1800040
$152,24 Unit Price incl. VAT
3
END CAP SNAP RING
1800041
$15,74 Unit Price incl. VAT
4
SCREW ALLEN (100338)
1800299
9999999
Not Available
5
BOLT; NEEDLE (600124)
1800301
9999999
Not Available
6
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
7
BODY (600152)
1800304
9999999
Not Available
8
NEEDLE 2.25 (100114)
1800300
9999999
Not Available
9
SPRING RETAINER
1800046
$68,24 Unit Price incl. VAT
10
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
11
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
12
WEAR SLEEVE
1800047
$73,49 Unit Price incl. VAT
13
SHAFT SEAL U CUP
1800035
9999999
Not Available
14
D/TYPE WIPER
1800034
$68,24 Unit Price incl. VAT
15
ASM-SHAFT SEAL HOUSING
1800131
9999999
Not Available
16
SHAFT 5/8 IN
1800303
9999999
Not Available
17
SPRING RETAINING RING
1800116
$120,74 Unit Price incl. VAT
18
EYELET
1800103
9999999
Not Available
19
O-RING SHAFT SEAL HEAD (10)
1800037
$3,14 Unit Price incl. VAT
20
CONVEX PISTON WITH BAND ASSEMBLY
1800130
9999999
Not Available
21
BODY-RESERVOIR 4.5
1800120
9999999
Not Available
22
O-RING RESERVOIR
1800028
$3,14 Unit Price incl. VAT
23
RESERVOIR SNAP RING (10)
1800019
9999999
Not Available
24
O-RING(10)
1800108
9999999
Not Available
25
SCREW-BUTTON HEAD 8/32(10)
1800109
$6,29 Unit Price incl. VAT
25
VALVE-NEEDLE
1800107
9999999
Not Available
26
END CAP
1800106
9999999
Not Available
27
KNOB
1800218
$104,99 Unit Price incl. VAT
28
SCREW
1800203
9999999
Not Available
29
O-RING KNOB
1800221
9999999
Not Available
30
BLEED SCREW
1800211
9999999
Not Available
30
O-RING BLEED SCREW
1800210
$3,14 Unit Price incl. VAT
30
PISTON-RES. W/BLEED SCREW
1800214
9999999
Not Available
31
PISTON
1800217
9999999
Not Available
32
SCREW W/THRU HOLE
1800219
$20,99 Unit Price incl. VAT
33
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT
34
HOUSING-ADJ.
1800220
9999999
Not Available
35
SPRING-D-TENT(10)
1800128
$20,99 Unit Price incl. VAT
35
BALL-D-TENT(10)
1800127
$12,59 Unit Price incl. VAT

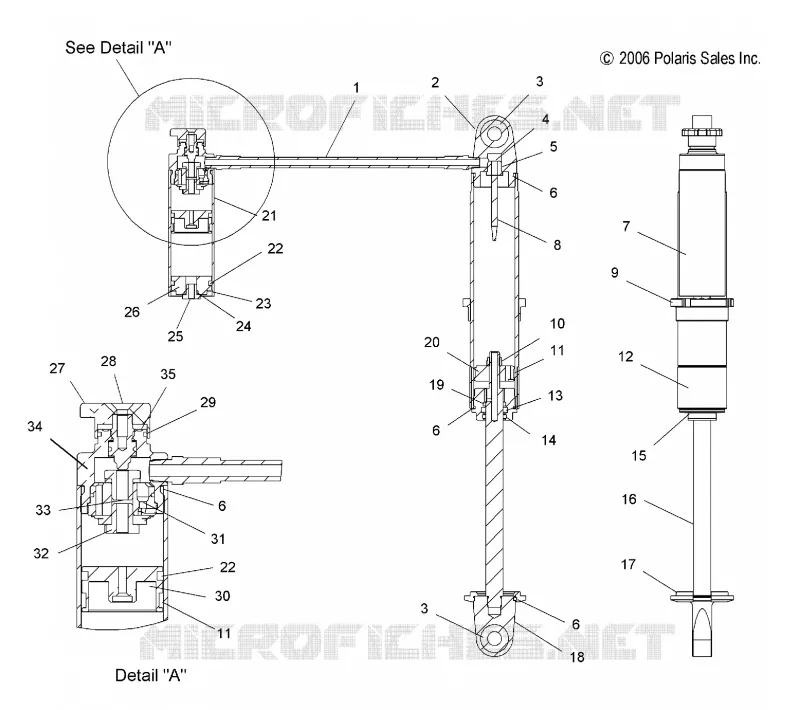

Find the detailed SHOCK ASM. IFS, INTERNALS (7043206) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

750 TURBO IQ 750 2011
