DRIVE TRAIN, GEARCASE INTERNALS for POLARIS PROSTAR S4 INDY XC 129 from 2023

ASM-GEARCASE 1.95 HNR

1334016

$4 058,24 Unit Price incl. VAT

PLUG; M18 X 1.5

3234755

$52,49 Unit Price incl. VAT

SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM

3234756

$57,74 Unit Price incl. VAT

EXPANSION PLUG; 1.662 X .276

3236086

$62,99 Unit Price incl. VAT

HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM

3234898

$17,84 Unit Price incl. VAT

SCREW

3235206

$13,64 Unit Price incl. VAT

SOCKET-TRX PH M4X0.7X10(105523

3236301

$9,44 Unit Price incl. VAT

HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM

3235210

$14,69 Unit Price incl. VAT

WASHER

3235211

$19,94 Unit Price incl. VAT

WASHER-28.3X38X2.75

3236057

$36,74 Unit Price incl. VAT

WASHER; 24.3 X 35 X 2.75

3236058

$52,49 Unit Price incl. VAT

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

RETAINING RING

3235214

$17,84 Unit Price incl. VAT

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

RETAINING RING

3235214

$17,84 Unit Price incl. VAT

RING-RETAIN EXT24X1.75(130373)

3236060

$23,09 Unit Price incl. VAT

RING-RETAIN EXT 28X2.4(130372)

3236059

$41,99 Unit Price incl. VAT

THRUST WASHER; .446 X .88 X .025

3234642

$19,94 Unit Price incl. VAT

NEEDLE BEARING

3233014

$74,54 Unit Price incl. VAT

BEARING

3233018

$47,24 Unit Price incl. VAT

BEARING

3233020

$80,84 Unit Price incl. VAT

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

BALL BEARING

3233265

$68,24 Unit Price incl. VAT

BALL BEARING

3233790

$47,24 Unit Price incl. VAT

BALL BEARING

3234651

$27,29 Unit Price incl. VAT

NEEDLE BEARING; 28 X 33 X 17

3236061

$74,54 Unit Price incl. VAT

SPRING WASHER

3235327

$17,84 Unit Price incl. VAT

SPRING-COMPRESSION (210560)

3236063

$36,74 Unit Price incl. VAT

DRUM-SHIFT MACH (255358)

3236218

$230,99 Unit Price incl. VAT

DETENT BULLET

3234695

$68,24 Unit Price incl. VAT

STAR DETENT (270632)

3236065

$83,99 Unit Price incl. VAT

OUTPUT GEAR; 59T

3236067

$435,74 Unit Price incl. VAT

GEAR-BRAKE 43T (286210)

3236068

$435,74 Unit Price incl. VAT

SHAFT-INPUT 17T (286471)

3236219

$535,49 Unit Price incl. VAT

DETENT PLUG

3234715

$68,24 Unit Price incl. VAT

SPROCKET-REVERSE 33T (354301)

3236071

$241,49 Unit Price incl. VAT

GEAR-37T (354323)

3236074

$257,24 Unit Price incl. VAT

ENGAGEMNT DOG-4FACE (354347)

3236076

$188,99 Unit Price incl. VAT

GEAR-HIGH 38T (354848)

3236220

$246,74 Unit Price incl. VAT

SHAFT-MID 31T (354849)

3236221

$414,74 Unit Price incl. VAT

RAIL-SHIFT SHAFT(354850)

3236217

$52,49 Unit Price incl. VAT

TUBE-ROLLOVER VENT (354953)

3236299

$73,49 Unit Price incl. VAT

SHIFT FORK SUBASSEMBLY

3236077

$152,24 Unit Price incl. VAT

SUBASSEMBLY-LH COVER (413441)

3239329

$1 007,99 Unit Price incl. VAT

SUBASSEMBLY-BELLCRANK (290084)

3239363

$141,74 Unit Price incl. VAT

SUBASSEMBLY-RH CASE (412821)

3236222

$1 028,99 Unit Price incl. VAT

DEFLECTOR-OIL (431116)

3239331

$60,89 Unit Price incl. VAT

CHAIN-.375PX.75WX44L(490075)

1332767

$262,49 Unit Price incl. VAT

SWITCH-ROTARY 2PIN RES(520134)

3236084

$225,74 Unit Price incl. VAT

SENSOR-SPEED (520224)

3236697

$278,24 Unit Price incl. VAT

O-RING -16 (560496)

3236279

$13,48 Unit Price incl. VAT

BRACKET-LIFT HOOK (431133)

3239354

$47,24 Unit Price incl. VAT

TRIPLE LIP SEAL

3235848

$57,74 Unit Price incl. VAT

O-RING

3234729

$25,19 Unit Price incl. VAT

TRIPER LIP SEAL

3233878

$57,74 Unit Price incl. VAT

O-RING

3233836

$12,59 Unit Price incl. VAT

SEAL 35 X 47 X 8

3234307

$31,49 Unit Price incl. VAT

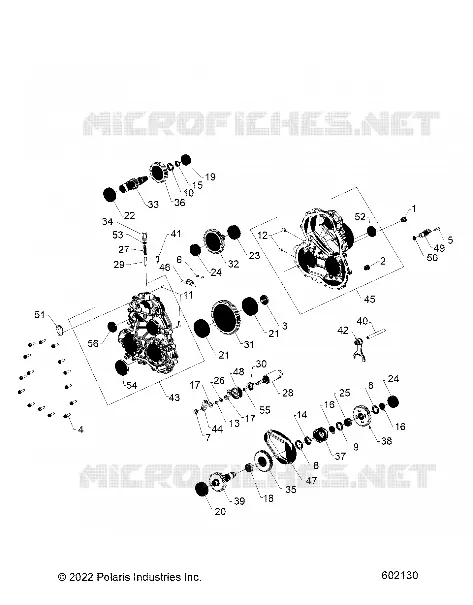

Find the detailed DRIVE TRAIN, GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

INDY XC 129 1000 2023
