1
Engine displacement
400
2
Year
1997
3
Trim
Big Boss 6x6 400L - N97AE38D
4
Parts Catalog

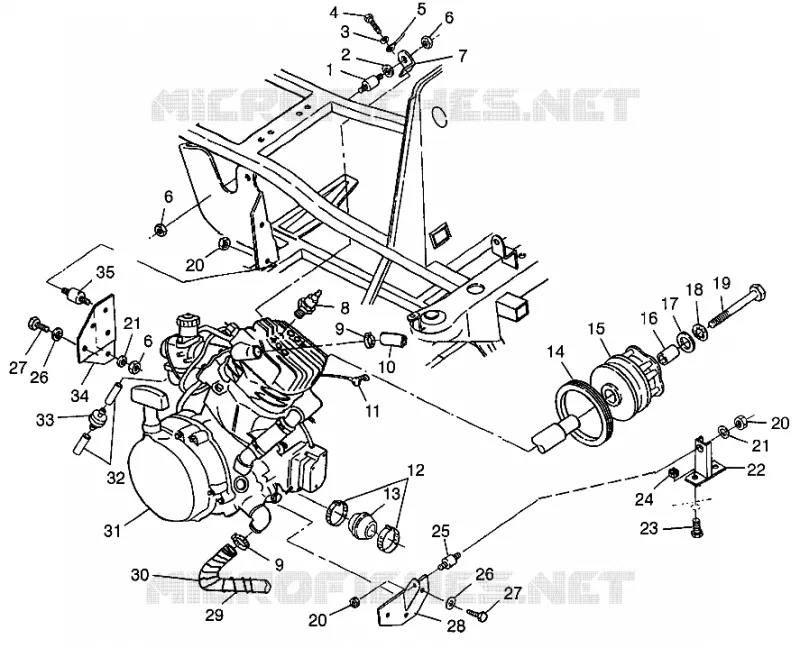

ENGINE MOUNTING BIG BOSS 6X6 400L W97AE38A (4940814081A010)
5
Parts Diagram
Parts Catalog
DECALS BIG BOSS 6X6 400L W97AE38A (4940814081A009)
by
COOLING SYSTEM BIG BOSS 6X6 400L W97AE38A (4940814081A011)
ENGINE MOUNTING BIG BOSS 6X6 400L W97AE38A (4940814081A010)
1
1
2
2
3
3
4
4
5
5
6
6
6
6
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
14
14
14
16
16
17
17
18
18
19
19
20
20
20
20
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
26
26
27
27
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
1
1
2
2
3
3
4
4
5
5
6
6
6
6
6
6
7
7
8
8
9
9
9
9
10
10
11
11
12
12
13
13
14
14
14
14
16
16
17
17
18
18
19
19
20
20
20
20
20
20
21
21
21
21
22
22
23
23
24
24
25
25
26
26
26
26
27
27
27
27
28
28
29
29
30
30
31
31
32
32
33
33
34
34
35
35
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
1
MT. RUBBER ENG.
3110038
9999999
Not Available
2
MOTOR MOUNT INSULATOR
5430802
9999999
Not Available
3
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
4
BOLT
7515321
9999999
Not Available
5
CABLE GND-ENGINE
4010132
9999999
Not Available
6
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
7
MOUNT ENG TOP
5241801067
Not Available
8
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
9
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
10
ENGINE HOSE; UPPER
5410570
9999999
Not Available
11
SOLENOID TO START CABLE; DOUBLE BOOT
4010129
9999999
Not Available
12
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
13
BOOT CLUTCH INTAKE(400)
5410883
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
BUSHING
5430261
$13,64 Unit Price incl. VAT
17
WASHER
5210748
$7,34 Unit Price incl. VAT
18
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
19
BOLT
7512566
9999999
Not Available
20
NUT LOCK
7542403
9999999
Not Available
21
WASHER
7555801
$7,34 Unit Price incl. VAT
22
MOUNT ENG LOW BLK
1040532067
Not Available
23
BOLT
7512457
$7,34 Unit Price incl. VAT
24
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
25
MOUNT MOTOR
3110026
9999999
Not Available
26
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
27
SCREW
7512490
$7,34 Unit Price incl. VAT
28
MOUNT ENGINE
1040231067
Not Available
29
HOSE RETAINER SPRING
7041079
9999999
Not Available
30
HOSE; LOWER ENGINE
5411173
9999999
Not Available
31
ENG.(S.B.)EC38PLE-O7
3085547
9990000
Not Available
32
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
33
CHECKVALVE VENT
7052047
9999999
Not Available
34
MOUNT REAR MOTOR BLK.
5240542067
Not Available
35
MOUNT RUBBER ENG.
3110042
9999999
Not Available

Find the detailed ENGINE MOUNTING BIG BOSS 6X6 400L W97AE38A (4940814081A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
