1
Engine displacement
autre
2
Year
1996
3
Trim
XLT RMK - 0960956
4
Parts Catalog
MAGNETO XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D001)
5
Parts Diagram
Parts Catalog
OIL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C014)
by
RECOIL STARTER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181D002)
MAGNETO XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D001)
1
STATOR PLATE ASM.
3084473
9999999
Not Available
2
COIL PULSE
3084511
Not Available
3
BAND
3084099
9999999
Not Available
4
SCREW & WASHER ASM.
3084096
Not Available
5
BOLT&WASHER ASM.
3083866
9999999
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SCREW&WASHER
3084510
Not Available
8
FLYWHEEL ASM.
3084515
Not Available
9
CDI SYSTEM
3084472
9999999
Not Available
10
RESISTOR PLUG CAP
4020129
4083595
$52,49 Unit Price incl. VAT
11
CODE CP
3084516
9999999
Not Available
12
COIL IGNITION
3085208
9999999
Not Available
13
ASM. BOLT AND WASHER
3083730
9999999
Not Available
14
COUPLER; 2P
3084513
9999999
Not Available
15
COUPLER
3083909
9999999
Not Available
16
COUPLER MALE
3081513
9999999
Not Available
17
HARNESS WIRE
3084514
Not Available
18
GROMMET
3082969
9999999
Not Available
19
CLAMP
3081146
9999999
Not Available
20
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
21
BAND WIRE
3084512
9999999
Not Available

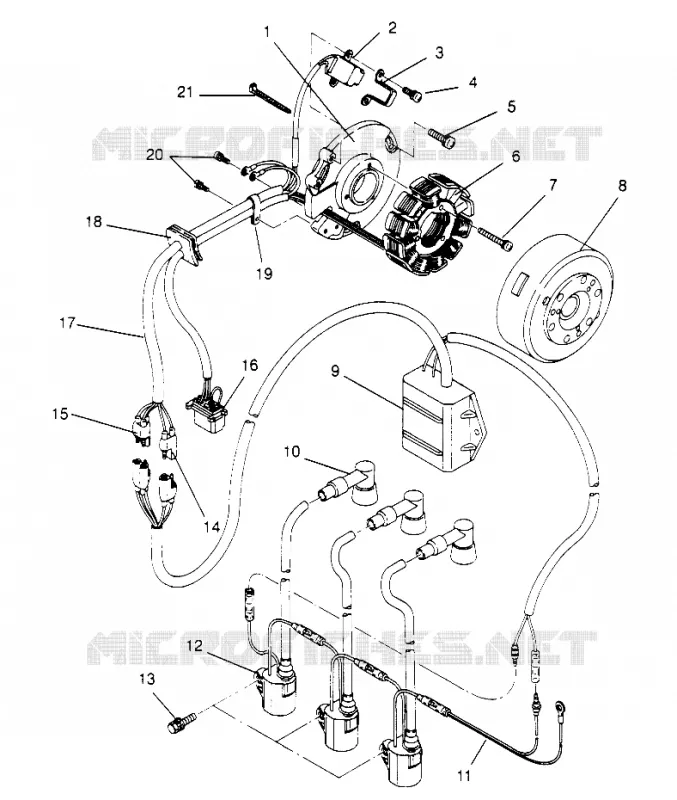

Find the detailed MAGNETO XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
