1
Engine displacement
autre
2
Year
2001
3
Trim
DIESEL - A10CH46CA
4
Parts Catalog
GOVERNOR
5
Parts Diagram
Parts Catalog
GEAR SELECTOR
by
WATER PUMP
GOVERNOR
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
LEVER 4GOVERNOR
3086032
9999999
Not Available
2
STOPPER
3086166
9999999
Not Available
3
O-RING
3086054
9999999
Not Available
4
SPRING RETURN STOP
3086046
9999999
Not Available
5
NUT(10)
3084375
9999999
Not Available
6
SCREW
3086056
9999999
Not Available
7
PLUG
3084860
9999999
Not Available
8
GASKET
3084861
9999999
Not Available
9
SCREW-ADJUSTING
3086164
9999999
Not Available
10
NUT(10)
3084912
9999999
Not Available
11
PLUG BLIND
3086038
9999999
Not Available
12
FLANGE NUT
3082910
9999999
Not Available
13
WASHER(10)
3080356
9999999
Not Available
14
SPRING-RETURN
3086189
9999999
Not Available
15
LEVER STOPPER
3086045
9999999
Not Available
16
CONTROL SPEED
3086042
9999999
Not Available
17
PIVOT LINK
3086052
9999999
Not Available
18
SPRING-GOVENOR
3087095
9999999
Not Available
19
LEVER 3-GOVERNOR
3086165
9999999
Not Available
20
SPACER
3086168
9999999
Not Available
21
CLIP(10)
3086053
9999999
Not Available
22
WASHER(10)
3080142
9999999
Not Available
23
SPACER
3086050
9999999
Not Available
24
BOOT PLANGER
3086051
9999999
Not Available
25
BOLT; FLANGE
3083568
7520710
$7,34 Unit Price incl. VAT
26
BRACKET SOLENOID
3086047
9999999
Not Available
27
SPRING PIN
3086049
9999999
Not Available
28
SOLENOID ASM.
3086167
9999999
Not Available
29
BAND; WIRE
3084823
9999999
Not Available
30
SCREW
3086055
Not Available
31
SPRING CONTROL
3086057
9999999
Not Available
32
WASHER(10)
3080078
9999999
Not Available
33
LEVER 1-GOVERNOR
3086163
9999999
Not Available
34
ROD-GOVENOR
3087096
9999999
Not Available
35
LEVER 2GOVERNOR
3086033
9999999
Not Available
36
SPRING START
3086036
9999999
Not Available

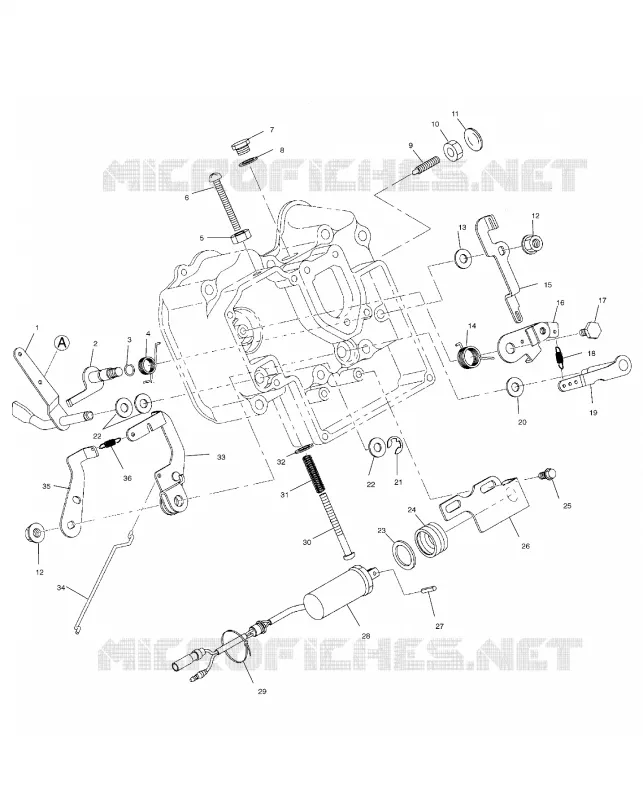

Find the detailed GOVERNOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
