ENGINE MOUNTING for POLARIS TRAIL BOSS 330 - A05CA32AA from 2005

ENGINE MOUNTING

1

FUEL LINE; 1/4 ID

84500031525

Not Available

2

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

3

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

4

FLAT WASHER

7558301

$2,09 Unit Price incl. VAT

5

BRKT-CARB MNTPLTD

5247946

9999999

Not Available

6

SCREW AND WASHER

3084205

9999999

Not Available

7

NUT

7547108

$9,44 Unit Price incl. VAT

8

CABLE GND-ENGINE

4010132

9999999

Not Available

9

BOLT

7512232

$2,09 Unit Price incl. VAT

10

BOLT

7512315

$9,44 Unit Price incl. VAT

11

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

12

MOUNT RUBBER ENGINE 45 DURO

3021181

9999999

Not Available

13

MOTOR MOUNT INSULATOR

5430802

9999999

Not Available

14

WASHER

7555823

$7,34 Unit Price incl. VAT

15

BRKT-ENGINE MNT TOPPLATED

5247344

9999999

Not Available

16

DECAL-DRAIN RECOIL

7172562

9999999

Not Available

17

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

18

CLUTCH INTAKE BOOT

5411721

9999999

Not Available

19

FUEL LINE;1/8 ID;100 CM.

8360009100

Not Available

20

ENGINE-ES32PFE103

1202789

9990000

Not Available

21

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

22

MOUNT RUBBER FRONT

3110046

9999999

Not Available

23

MOUNT ENGINE REAR BLK

1013413067

Not Available

24

NUT-3/8-16 FLG LOCK-Y

7547089

9999999

Not Available

25

SCREW

7515417

9999999

Not Available

26

MOUNT-LOWER FRONT ENG;PLTD

5247342

9999999

Not Available

27

BUSHING

5430261

$13,64 Unit Price incl. VAT

28

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

29

BOLT

7512566

9999999

Not Available

30

WASHER

5210748

$7,34 Unit Price incl. VAT

31

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

32

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

33

Line Fuel

8450103600

Not Available

34

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

35

FUEL LINE; 600 CM

8450040600

Not Available

36

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

37

MOUNT CARBURETOR

3110050

$19,94 Unit Price incl. VAT

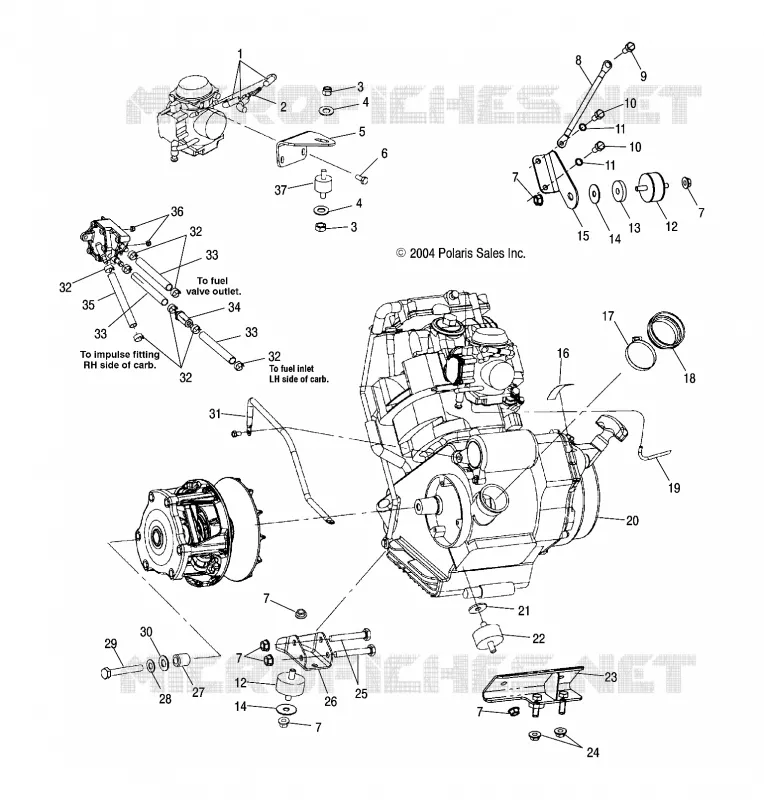

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
