1
Engine displacement
600
2
Year
1995
3
Trim
600 XCR - 0951676
4
Parts Catalog
FRONT SUSPENSION AND SKI 600 XCR 0951676 (4929132913B002)
5
Parts Diagram
Parts Catalog
MASTER CYLINDER 600 XCR 0951676 (4929132913B001)
by
BRAKE 600 XCR 0951676 (4929132913B008)
FRONT SUSPENSION AND SKI 600 XCR 0951676 (4929132913B002)
1
2
3
3
4
4
5
5
6
7
7
7
7
8
8
9
9
10
11
12
13
13
13
13
13
13
13
13
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
37
38
39
40
41
42
42
43
44
45
45
46
47
48
49
50
51
51
52
53
53
54
55
1
BOLT
7512551
9999999
Not Available
2
BOLT
7512678
$36,74 Unit Price incl. VAT
3
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
4
BOLT(10)
7515515
9999999
Not Available
5
NUT; FLEXLOC B
7542456
9999999
Not Available
6
STEERING ARM
5220326067
Not Available
7
STOP LH STRG BLK.
5240397067
Not Available
7
STOP RH STRG BLK.
5240398067
Not Available
8
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
9
WASHER
7555721
$2,09 Unit Price incl. VAT
10
TUBE TRAILING ARM
5010187
9999999
Not Available
11
PIVOT-TRAILING ARM
5410382
9999999
Not Available
12
BOLT
7512584
9999999
Not Available
13
ARM TRLG LH
1822205
9999999
Not Available
13
ARM TRLG RH
1822206
9999999
Not Available
15
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
16
BUSHING
7556509
$3,14 Unit Price incl. VAT
17
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
18
SPINDLE BLK HARDENED
6230075067
Not Available
19
STOP RUBBER
5521276
9999999
Not Available
20
SCREW
7515462
9999999
Not Available
21
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
22
SKI WELD BLK
1820332067
Not Available
23
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
24
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
25
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
26
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
27
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
28
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
29
BOLT
7515492
7515540
$9,44 Unit Price incl. VAT
30
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
31
BOLT
7515529
7515528
$15,74 Unit Price incl. VAT
32
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
33
ROD RAD LOW WIDE BLK SP Substituted by 2202105
1822139067
Not Available
34
ROD RAD UP.BLK. Substituted by 2202104
1822138067
Not Available
35
NUT JAM(10)
7542520
9999999
Not Available
36
ROD END; RH
7060155
9999999
Not Available
37
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
38
NUT FLEXLOCK
7542503
9999999
Not Available
39
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
40
BRACE PAN
5223997067
Not Available
41
NUT FLEXOC;
7542703
9999999
Not Available
42
STRAP SPACER BOTTOM
5211345
9999999
Not Available
43
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
44
BUSHING 1.16 IN
5020613
9999999
Not Available
45
BUSHING SHOCK .220
5431540
9999999
Not Available
46
SPRING RETAINER; SLOTTED
5020618
$36,74 Unit Price incl. VAT
47
SPRING (BLK.) IFS COMP.
7041252067
Not Available
48
RING RETAINING(10)
7710424
9999999
Not Available
49
RETAINER; SPRING BODY
5020617
9999999
Not Available
50
SHOCKGASIFSIFPCAM
7041346
9999999
Not Available
51
BUSHING SHOCK
5431727
9999999
Not Available
52
BUSHING (1.34 IN.)
5020612
9999999
Not Available
53
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
54
RIVET
7661637
$2,09 Unit Price incl. VAT
55
BRACE BLKHD/STRG BLK.
5211589067
Not Available

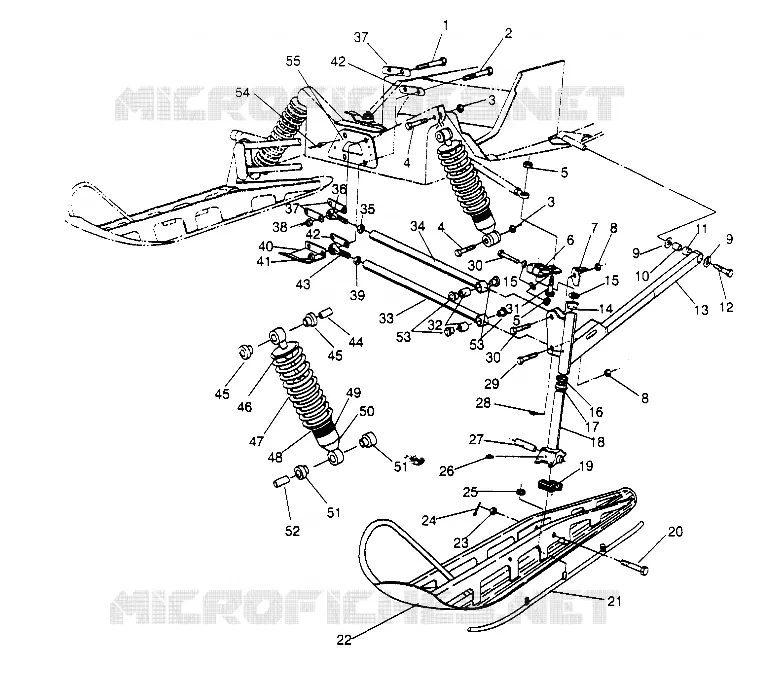

Find the detailed FRONT SUSPENSION AND SKI 600 XCR 0951676 (4929132913B002) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
