1

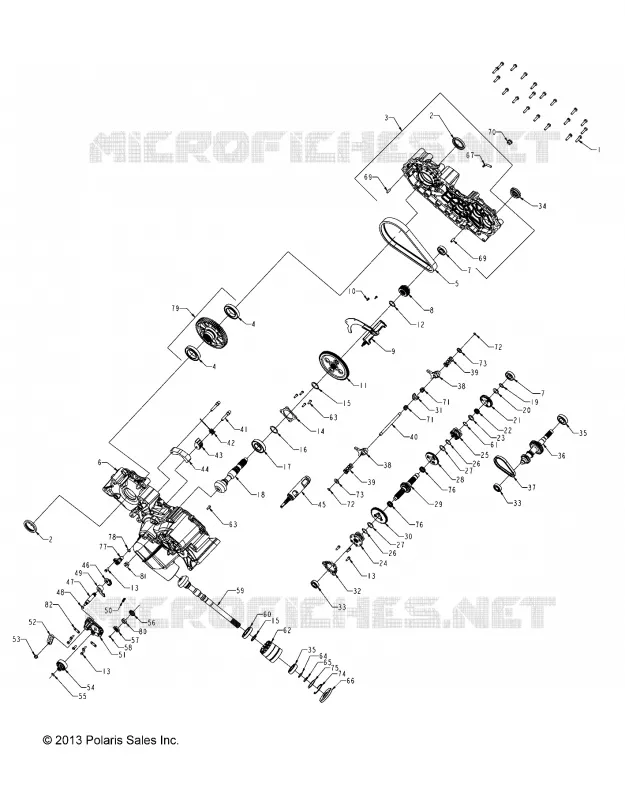

SINGLE TRANSMISSION DIFFERENTIATOR ASM
1333274
9999999
Not Available
2
SEAL TRIPLE LIP
2324300
Not Available
3
COVER; LEFT
3234260
$803,24 Unit Price incl. VAT
4
BALL BEARING; 50 X 80 X 10
3234275
$47,24 Unit Price incl. VAT
5
CHAIN
3234057
$519,74 Unit Price incl. VAT
6
MAIN GEARCASE; RIGHT; MACHINED
3235593
9999999
Not Available
7
BEARING
3233018
$47,24 Unit Price incl. VAT
8
SPROCKET; 19 TOOTH
3234060
$451,49 Unit Price incl. VAT
9
OIL DEFLECTOR
3234061
3239943
$52,49 Unit Price incl. VAT
10
SCREW
3233749
$10,49 Unit Price incl. VAT
11
GEAR OUTPUT
3234062
$493,49 Unit Price incl. VAT
12
RING-RETAINING
3233699
$13,64 Unit Price incl. VAT
13
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
14
COVER-CENTER DRIVE BEARING
3234063
$62,99 Unit Price incl. VAT
15
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
16
SHIM; 1.700 X 1.385
3234271
$47,24 Unit Price incl. VAT
17
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
18
PINION; 13T CENTER DRIVE
3234263
$818,99 Unit Price incl. VAT
19
RETAINING RING
3234067
$14,69 Unit Price incl. VAT
20
WASHER
3233176
$17,84 Unit Price incl. VAT
21
HELICAL GEAR; 35T
3235525
$167,99 Unit Price incl. VAT
22
BEARING; NEEDLE
3233009
$68,24 Unit Price incl. VAT
23
WASHER
3233855
$19,94 Unit Price incl. VAT
24
DOG; L/P
3234257
$283,49 Unit Price incl. VAT
25
ENGAGEMENT DOG 6 FACE
3234258
$178,49 Unit Price incl. VAT
26
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
27
THRUST WASHER; 1.300 X .995 X .065
3234248
$17,84 Unit Price incl. VAT
28
SPROCKET; 6-FACE; 38 TOOTH
3234290
$283,49 Unit Price incl. VAT
29
REVERSE SHAFT; 26 TOOTH
3234280
$488,24 Unit Price incl. VAT
30
GEAR; 33T 6-FACE
3234291
$325,49 Unit Price incl. VAT
31
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
32
PLATE-PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
33
BEARING; BALL; 17 X 40 X 12
3234274
$47,24 Unit Price incl. VAT
34
SEAL
3234851
$68,24 Unit Price incl. VAT
35
NEEDLE BEARING
3233017
$60,89 Unit Price incl. VAT
36
SHAFT-INPUT HELICAL 39T
3235526
$451,49 Unit Price incl. VAT
37
CHAIN; .25 P X .40 W X 50 L
3234264
$188,99 Unit Price incl. VAT
38
SPRING COMPRSSN.54ODX.44IDX.05
3234277
$26,24 Unit Price incl. VAT
39
SHIFT FORK
3234077
$335,99 Unit Price incl. VAT
40
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
41
RAIL-SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT
42
DOWEL PIN
3233432
$13,64 Unit Price incl. VAT
43
TORISON SPRING
3233431
$47,24 Unit Price incl. VAT
44
CHAIN TENSIONER CAM
3233434
$26,24 Unit Price incl. VAT
45
CHAIN TENSIONER SHOE
3233433
$62,99 Unit Price incl. VAT
46
DRUM SHIFT
3234360
$335,99 Unit Price incl. VAT
47
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
48
SHIFT SHAFT
3233831
$115,49 Unit Price incl. VAT
49
O-RING
3233869
$10,49 Unit Price incl. VAT
50
DETENT PAWL
3233829
$68,24 Unit Price incl. VAT
51
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
52
GEARCASE COVER
3234188
$209,99 Unit Price incl. VAT
53
BELLCRANK 510 HOLE 92 DEGREE
3234584
$52,49 Unit Price incl. VAT
54
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
55
SWITCH ROTARY
3231999
Not Available
56
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
57
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
58
GEARCASE-MAIN
3233908
9999999
Not Available
59
DETENT STAR
3233909
$52,49 Unit Price incl. VAT
60
O-RING
3233076
$11,54 Unit Price incl. VAT
61
SNORKEL; 13 TOOTH
3234262
$608,99 Unit Price incl. VAT
62
BALL BEARING
3233265
$68,24 Unit Price incl. VAT
63
RING RETAINING BSCEXTERNAL0.84
3234336
$10,49 Unit Price incl. VAT
64
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
65
SCREW-TORX TRUSS HD
3234086
$10,49 Unit Price incl. VAT
66
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
67
SNAP RING
3233106
$10,49 Unit Price incl. VAT
69
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
70
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
71
PIN DOWEL 5/16 X 1.0
3234244
$13,64 Unit Price incl. VAT
72
HEX PLUG W/ O-RING; HOLLOW
3233794
$31,49 Unit Price incl. VAT
73
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
74
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
75
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
76
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
77
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
78
ENGAGEMENT DOG
3234928
$136,49 Unit Price incl. VAT
79
TORSION RETURN SPRING
3234276
$16,79 Unit Price incl. VAT
80
FORK; PIVOT SHIFT REAR DIFF
3234285
$120,74 Unit Price incl. VAT
81
GEAR SUBASSEMBLY; 36 TOOTH; SIDE
3234363
$435,74 Unit Price incl. VAT
82
CARRIER SUBASSEMBLY
3234470
$509,24 Unit Price incl. VAT
