COOLING SYSTEM
1
2
3
4
4
4
4
5
6
6
6
6
6
6
6
7
8
8
9
9
9
10
11
12
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
26
27
28
28
29
30
31
31
31
31
31
31
32
32
33
34
35
36
36
37
38
39
40
41
42
43
1
COOLANT BOTTLE WELD
2521004
9999999
Not Available
2
CAP-PRESSURE
1240169
1240300
$73,49 Unit Price incl. VAT
3
RIVET
7621472
$2,09 Unit Price incl. VAT
4
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
5
HOSE-BOTTLE/TNL CLR RETURN
5414003
9999999
Not Available
6
CLAMP SPRINGBAND 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
7
HOSE-CTR CLR/TNL CLR SUPPLY
5414004
9999999
Not Available
8
WELD-WEAR STRIP COOLER 136 LH
1240604
9999999
Not Available
8
WELD-WEAR STRIP COOLER 136 RH
1240605
9999999
Not Available
9
RIVET 4.8 MM
7661973
$2,09 Unit Price incl. VAT
10
WELD-COOLER BULKHEAD
1240442
9999999
Not Available
11
HOSE-ENGINE/CTR COOLER SUPPLY
5413862
9999999
Not Available
12
CLAMP HOSE 1 IN NYLON
7080653
$9,44 Unit Price incl. VAT
13
HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM
7518045
9999999
Not Available
14
RIVET
7661637
$2,09 Unit Price incl. VAT
15
FITTING 1/2ID.HOSE
7052222
$41,99 Unit Price incl. VAT
16
HOSE-BULKHEAD/ENGINE RETURN
5413706
9999999
Not Available
17
GROMMET-16.5X28.5X9.5MM
5413710
9999999
Not Available
18
TUBE-ENGINE/RADIATOR
5335679
9999999
Not Available
19
HOSE-TUBE RADIATOR OUT
5413508
9999999
Not Available
20
RADIATOR ASSEMBLY; SNOW
1240403
9999999
Not Available
21
HOSE-TUBE RADIATOR IN
5413507
9999999
Not Available
22
HOSE-ENGINE/BULKHEAD SUPPLY
5413857
9999999
Not Available
23
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
24
SCR-M8X1.25X40 10.9 HX/FL ZOD
7518954
$10,49 Unit Price incl. VAT
25
CLAMP HOSE SS
7080560
$20,99 Unit Price incl. VAT
26
CONDUIT FLEX
552128708
Not Available
26
HOSE-BOTTLE/ENGINE IN
5413462
9999999
Not Available
27
CONNECTOR TEE 3/4
7052093
$15,74 Unit Price incl. VAT
28
THERMOSTAT-50C TBYS ADH
7052376
9999999
Not Available
28
O-RING LIP SEAL
5411521
9999999
Not Available
29
HOSE-ENGINE OUT/T IN
5413858
9999999
Not Available
30
HOSE-BYPASS
5413859
9999999
Not Available
31
CLAMP SPRING BAND
7081692
$8,39 Unit Price incl. VAT
32
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
33
FUEL HSE-5/16 DP SAE J30R9 SVC
8450123153
Not Available
34
FUEL HOSE-150 CM
8450117150
Not Available
35
HOSE-TUNNEL COOLER/MFC
5413973
9999999
Not Available
36
CLAMP SPRINGBAND
7081693
$8,39 Unit Price incl. VAT
37
MID FLAP COOLER WELD
1240579
9999999
Not Available
38
SCR-M8X1.25X70 8.8 HH ZOD
7518992
9999999
Not Available
39
WASHER-.344X.688X.063 FL-ZOD
7556524
$1,56 Unit Price incl. VAT
40
SPACER-COOLER
5137860
9999999
Not Available
41
HEX FLANGE SCREW; 8 MM X 1.25 MM X 40 MM
7519267
$7,34 Unit Price incl. VAT
42
WEARSTRIP-MACH 136
5137679
9999999
Not Available
43
RIVET-POP
7621220
9999999
Not Available

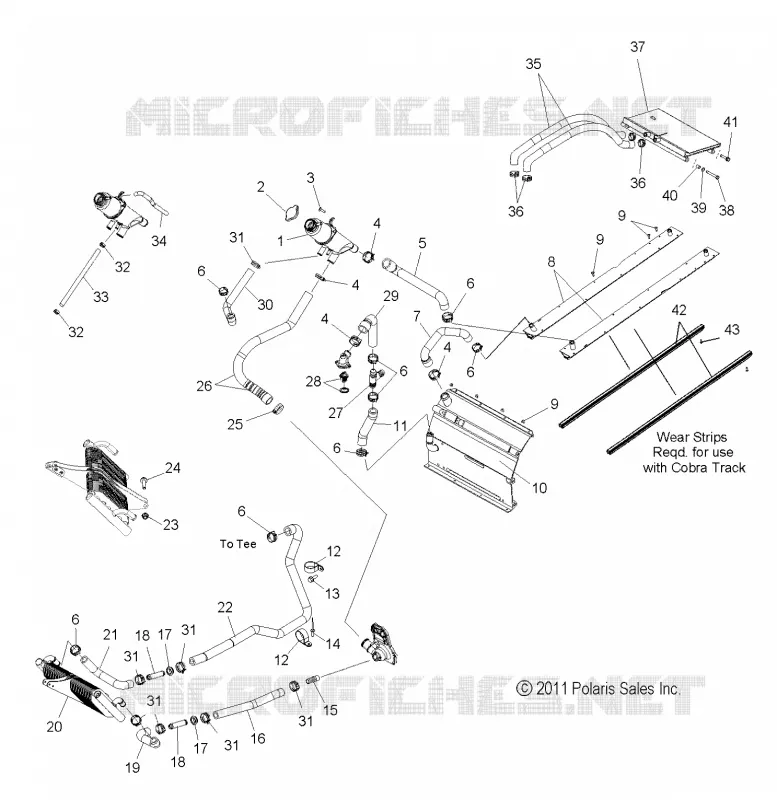

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

600 SWITCHBACK ADVENTURE 600 2012
