1
Engine displacement
550
2
Year
2023
3
Trim
550 RMK EVO 144
4
Parts Catalog
FUEL SYSTEM, FUEL TANK ASM.
5
Parts Diagram
Parts Catalog
FUEL SYSTEM, FUEL PUMP MOUNTING
by
REFERENCE, OWNERS MANUAL AND TOOL KIT
FUEL SYSTEM, FUEL TANK ASM.
1
ASM-FUEL TANK MID MACH CARB
2521860
$992,24 Unit Price incl. VAT
2
FTTG-90 ;1/4 OUT X3/8;DEX
7052455
$68,24 Unit Price incl. VAT
3
GROMMET-3/4 VITON
5435941
$11,54 Unit Price incl. VAT
4
FUEL LINE ETHER VLT 3/8 IN
8350020160
Not Available
5
FUEL PICK-UP WITH MESH
7052215
$83,99 Unit Price incl. VAT
6
FUEL CAP WITH GAUGE; 13.00
2521922
$104,99 Unit Price incl. VAT
7
BOLT ALLEN M6 X 1.0 X 14
7517431
$10,49 Unit Price incl. VAT
8
SEAT MOUNT BRACKET
5247431
$52,49 Unit Price incl. VAT
9
HEX FLANGE NUT; 6 MM X 1.0 MM
7547453
$7,34 Unit Price incl. VAT
10
WASHER
7555935
$4,19 Unit Price incl. VAT
11
SCR-SPCL M6X1.0X20 8.8 ZOD
7520464
$7,34 Unit Price incl. VAT
12
GAS TANK PAD
5813874
$62,99 Unit Price incl. VAT
13
PAD-RUBBER 1.0 X 2.50 X.13
5813729
$52,49 Unit Price incl. VAT
14
PAD-GAS TANK;RH
5813875
$62,99 Unit Price incl. VAT
15
FUEL LINE 1/4 SAE #30R7;100CM
8450040100
Not Available
16
COMPRESSION RING
7080768
$8,39 Unit Price incl. VAT

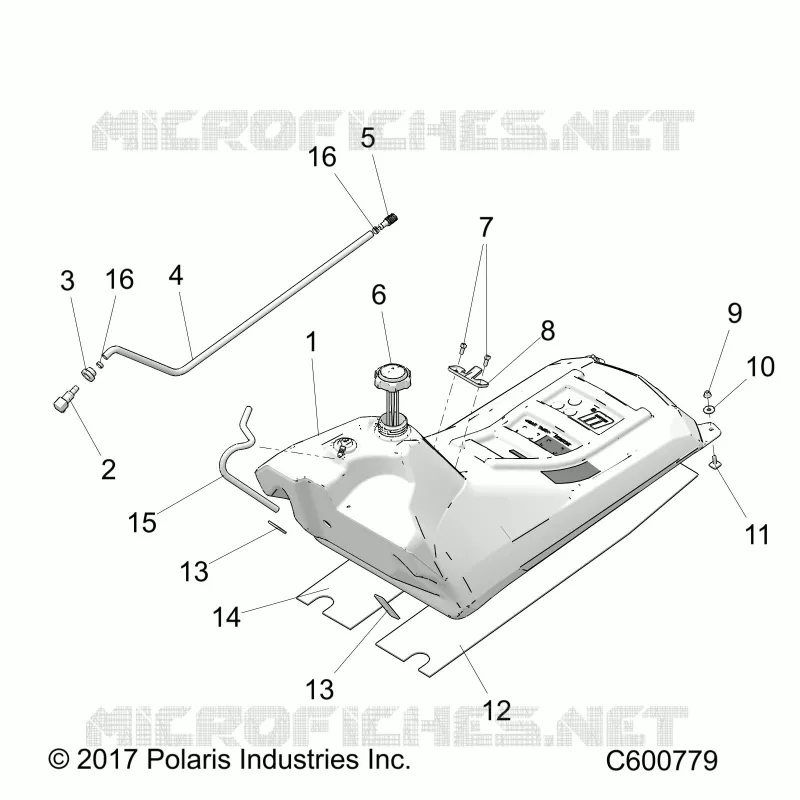

Find the detailed FUEL SYSTEM, FUEL TANK ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
