1
Engine displacement
550
2
Year
2003
3
Trim
550 SUPERSPORT EDGE
4
Parts Catalog
SHOCK (REAR TRACK)(EDGE)
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM (EDGE)
by
SHOCK AND RESERVOIR (REAR TRACK)(EDGE)
SHOCK (REAR TRACK)(EDGE)
-
1
1
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
1
1
16
17
17
18
19
20
21
22
22
23
23
24
25
26
27
28
-
1
1
2
2
2
3
4
5
6
7
7
8
9
10
11
12
13
14
1
1
16
17
17
18
19
20
21
22
22
23
23
24
25
26
27
28
-
SHOCK-R/T ALUM PPS
7042129
9999999
Not Available
1
O-RING DRUM OUTER
1500022
9999999
Not Available
1
SCREW-#10-24X.375 800-10-000
1500295
9999999
Not Available
2
O-RING ENDCAP
1500003
9999999
Not Available
2
ASM-FLOATING PISTON
1500481
9999999
Not Available
2
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
3
VALVE CHECK NBR DURO A 90
1500306
9999999
Not Available
4
BODY ASM INNER P.S.
1500331
9999999
Not Available
5
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
6
PLATE BACKUP
1500015
9999999
Not Available
7
PISTON-.063 BLEED
1500489
9999999
Not Available
7
DAMPER; PISTON RING
1500002
9999999
Not Available
8
SHAFT-.5X8.41 TLG
1500487
9999999
Not Available
9
EYELET-.88W 1.38TLG 808-05-002
1500302
9999999
Not Available
10
O-RING .103X.73ID
1500483
9999999
Not Available
11
SCRAPER-FIST DELRIN
1500485
9999999
Not Available
12
URETHANE U-CUP
1500266
$52,49 Unit Price incl. VAT
13
O-RING 14MM IDX1 MM
1500484
9999999
Not Available
14
RING-SNAP INTERNAL
1500486
9999999
Not Available
15
O-RING DRUM OUTER
1500022
9999999
Not Available
15
SCREW-#10-24X.375 800-10-000
1500295
9999999
Not Available
16
ASM-BEARING FIST
1500482
9999999
Not Available
17
O-RING
1500228
9999999
Not Available
18
O-RING
1500127
9999999
Not Available
19
BEARING-.5 IDX.5 TLG
1500488
9999999
Not Available
20
O-RING-.070CSX1.489ID
1500459
9999999
Not Available
21
PLATE TOP OUT
1500017
9999999
Not Available
22
RING-RETAINING WIRE
1500097
$9,44 Unit Price incl. VAT
23
COLLAR ALUMINUM
1500336
9999999
Not Available
24
ASM-BODY PPS3
1500480
9999999
Not Available
25
SLEEVE .56X.81X1.28
1500311
9999999
Not Available
26
BUSHING .35ILG .63TLG
1500307
$13,64 Unit Price incl. VAT
27
SLEEVE; .385 X .560 X 1.30
5333907
9999999
Not Available
28
BUSHING
5010422
$18,89 Unit Price incl. VAT

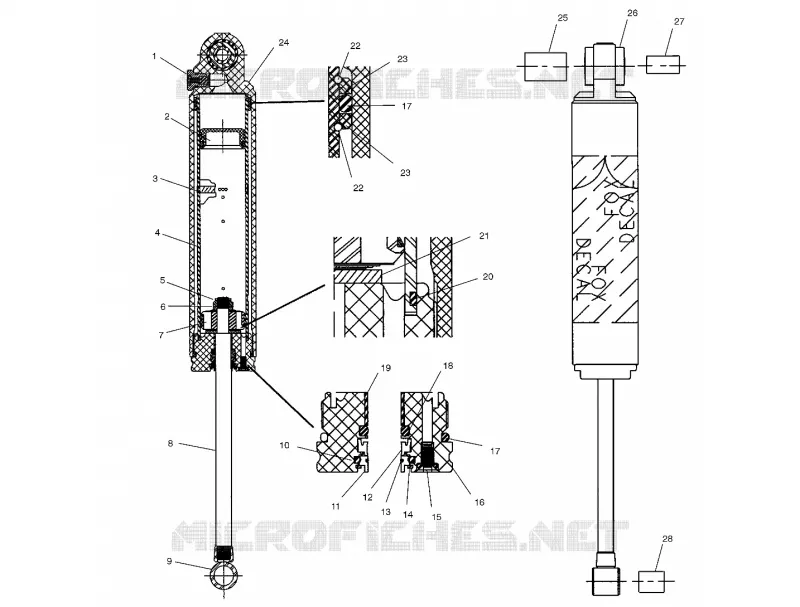

Find the detailed SHOCK (REAR TRACK)(EDGE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
