1
Engine displacement
700
2
Year
2005
3
Trim
700 / 800 XC SP M-10 F/O
4
Parts Catalog
IFS SHOCK
5
Parts Diagram
Parts Catalog
RAIL MOUNTING (M-10)
by
IFS SHOCK (COMPRESSION ADJUST)
IFS SHOCK
8
9
10
11
12
13
14
15
16
-
8
9
10
11
11
11
11
12
13
14
14
14
15
15
16
-
SHOCK-IFS IFP 11X16.25 ALUM AR
7041976
9999999
Not Available
1
BUSHING
1700036
$13,64 Unit Price incl. VAT
2
SLEEVE-.38 IDX.63 ODX1.18STEEL
1700037
9999999
Not Available
3
NUT SPRING RETAINER
1700033
9999999
Not Available
4
BUSHING
1700072
$16,79 Unit Price incl. VAT
5
BUMPER COMPRESSION
1700042
9999999
Not Available
6
UPPER MOUNT
1700010
9999999
Not Available
7
CYL HEAD ASSY(1/2 ROD)
1700007
9999999
Not Available
8
ROD SEAL
1700021
9999999
Not Available
9
CAP SEAL
1700022
9999999
Not Available
10
SHAFT-1/2 DIAX7.88 L
1700025
9999999
Not Available
11
TOP-OUT WASHER
1700077
$18,89 Unit Price incl. VAT
11
BANDED PISTON .093" ORIFICE
1700109
9999999
Not Available
11
PISTON WEAR BAND
1700031
9999999
Not Available
11
BACK-UP WASHER
1700078
9999999
Not Available
12
KIT VALV.PISTON
2200618
9999999
Not Available
13
NUT
1700057
9999999
Not Available
14
IFP
1700023
9999999
Not Available
14
IFP-O-RING
1700048
9999999
Not Available
14
IFP WEAR BAND
1700032
9999999
Not Available
15
PRESS-VALVE O-RING (10)
1700047
9999999
Not Available
15
PRESS-VALVE ASSY
1700076
9999999
Not Available
16
VALVE SCREW
1700056
9999999
Not Available

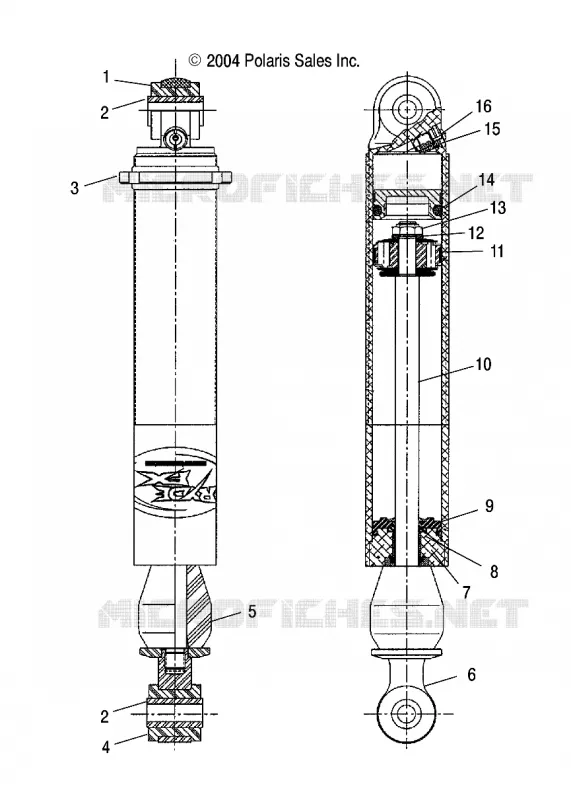

Find the detailed IFS SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
