CHASSIS, MAIN FRAME AND SKID PLATES
1
2
3
4
5
6
7
8
9
10
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
MAIN FRAME WELD; MATTE BLACK
1024526458
Not Available
2
MAIN FRAME SECTION; FRONT; MATTE BLACK
1024370458
Not Available
3
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
4
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
5
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
6
SKID PLATE; GLOSS BLACK
5456432070
Not Available
7
SKID PLATE; GLOSS BLACK
5450556070
Not Available
8
PLATE-SKID REAR BLK
5458186070
Not Available
9
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
10
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
11
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
12
SUSPENSION MOUNT BRACKET; FRONT; MT BLK
5259449458
Not Available
13
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
14
DASH; BLACK
1024577329
Not Available
15
MULTI PASSENGER SEAT BASE WELD; BLACK
1020572329
Not Available
16
SEAT SUPPORT BRACKET; FRONT; BLACK
5258097329
Not Available
17
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$7,34 Unit Price incl. VAT
18
BOLT
7519650
$7,34 Unit Price incl. VAT
19
SEAT BASE WELD; REAR; BLACK
1019777329
Not Available
20
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
21
BOX STRAP BRACKET; BLACK
5260947329
Not Available
22
BOX SUPPORT BRACKET; REAR; BLACK
5264553329
Not Available
23
SUPPRT WELD; REAR; BLACK
1019529458
Not Available
24
CLOSEOFF SUPPORT BRACKET; BLACK
5260539329
Not Available
25
SCREW
7516732
$3,14 Unit Price incl. VAT
26
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
27
PLUNGER-LATCH SEAT
5632848
$25,19 Unit Price incl. VAT

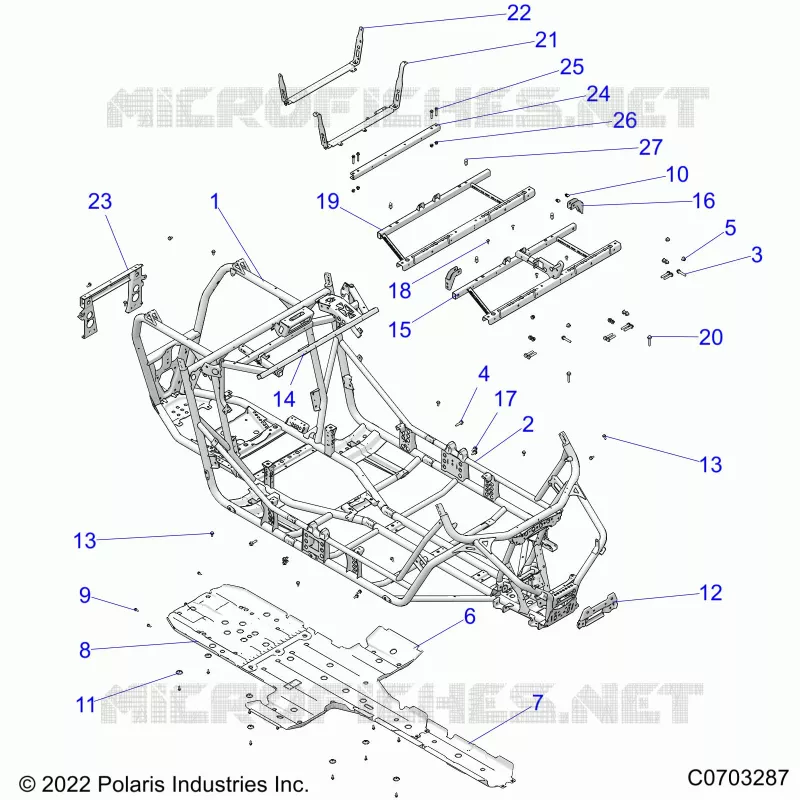

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

RZR XP 4 1000 HIGH LIFTER 1000 2022
