1
Engine displacement
900
2
Year
2014
3
Trim
RGR 4X4 900D HIPPO MPS - R14WH9EMD
4
Parts Catalog
BATTERY
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, TRANSMISSION MOUNTING
by
HEADLIGHTS, TAILLIGHTS AND BULBS
BATTERY
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
18
19
20
21
22
23
24
25
27
1
TERMINAL BLOCK; 3 POST
4011892
$62,99 Unit Price incl. VAT
2
NYLOK NUT
7546601
$2,09 Unit Price incl. VAT
3
STRAP-GROUND
5248659
9999999
Not Available
4
SCREW(10)
7512018
$6,29 Unit Price incl. VAT
5
BRKT-BATTERY STRAPBLK
5258288329
Not Available
6
BATTERY-575 CCA;FLOODED;FILLED
4014132
4014132-P
$257,24 Unit Price incl. VAT
7
CABLE-POSITIVE SPLIT
4013001
$60,89 Unit Price incl. VAT
8
CABLE-GROUND SPLIT
4013002
9999999
Not Available
9
MOUNT-BATTERY HIPPO ECOAT
5259787329
Not Available
10
BOLT-M6X1.0X15 HXFLG TAP/R-OD
7518513
9999999
Not Available
11
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT
12
HARDWARE CONTACTOR
TBA
Not Available
13
CABLE-TERMINAL BLOCKACC.
4013007
9999999
Not Available
14
CABLE-TERMINAL BLOCKACC.
4013008
9999999
Not Available
15
WELD-MNT PUMP M.BLK
1019633458
Not Available
16
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$7,34 Unit Price incl. VAT
18
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
19
BRKT-FOOTWELL SUPPORTE-COAT
5257693329
Not Available
20
FOAM-BATTERY STRAP
5813671
9999999
Not Available
21
ASM-TENSIONER BELT
2412580
9999999
Not Available
22
BRKT-HARNESS M.BLK
5259546458
Not Available
23
CABLE TIE;EVAP
7080924
$14,69 Unit Price incl. VAT
24
BOLT-M10X1.25X85MM HXFLG OLV D
7520152
$5,99 Unit Price incl. VAT
25
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
27
EDGE TRIM - BLACK
8360012
9999999
Not Available

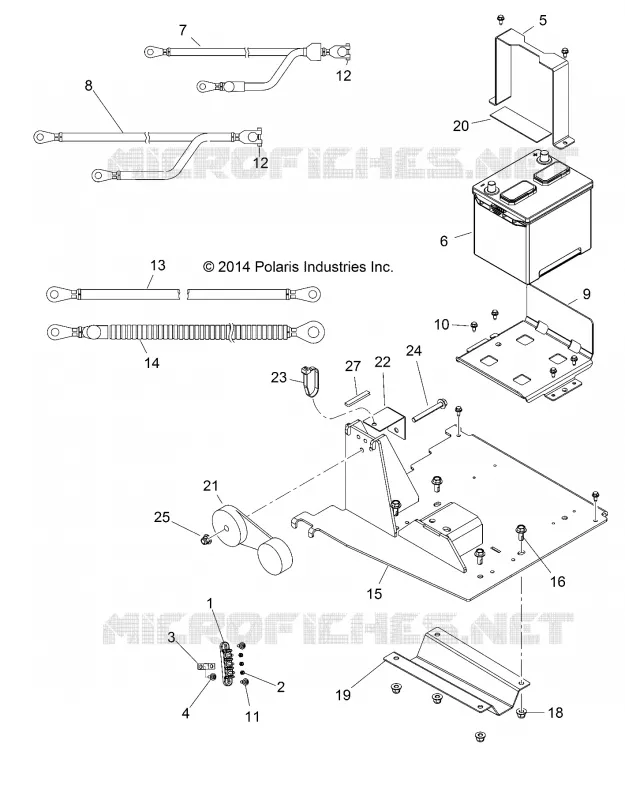

Find the detailed BATTERY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
