1
Engine displacement
780
2
Year
1997
3
Trim
INTL SL 780 - I974088
4
Parts Catalog
FRONT STORAGE COMPARTMENT SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A008)
5
Parts Diagram
Parts Catalog
DECALS SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A007)
by
STEERING SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A013)
FRONT STORAGE COMPARTMENT SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A008)
1
2
3
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
1
2
3
3
4
5
6
6
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
19
20
21
21
22
23
24
24
25
26
27
28
29
30
1
SUBSTITUTED BY 7512045
7512083
$7,34 Unit Price incl. VAT
2
WASHER; LOCK
7552615
9999999
Not Available
3
WASHER; FLAT; S.S.
7555837
9999999
Not Available
4
LATCH ASMCOMP./DOOR
2653008
9999999
Not Available
5
DOOR-COMPART SL WLD GRAPE
5432544237
Not Available
6
WASHER; LOCK; S.S.
7555838
9999999
Not Available
7
BOLT; S.S.(10)
7515121
9999999
Not Available
8
BOLT; S.S.
7515365
9999999
Not Available
9
WASHER; FLAT; S.S.
7555831
9999999
Not Available
10
RETAINER DOOR SUPPORT
5222782
9999999
Not Available
11
NUT HEX S.S.(10)
7542335
Not Available
12
HINGE ASM;COMPARTMENT
2635012
9999999
Not Available
13
PIN; HINGE
7661629
9999999
Not Available
14
SPRING;DOOR SUPPORT
7042038
9999999
Not Available
15
SUPPORT PORT DOOR COMP.
5224788
9999999
Not Available
16
RIVET (10)
7621478
9999999
Not Available
17
SEALFR.STORAGE BKT.
5521252
9999999
Not Available
18
BOX TOOL
5431508
9999999
Not Available
19
HOOK; D;SST/SS;(10)
5224472
9999999
Not Available
20
STRAP RUBBER
5410853
9999999
Not Available
21
CLIP
5240187
9999999
Not Available
22
BUCKET;STORAGE;FRONT
5432526
9999999
Not Available
23
BOLT
7515127
9999999
Not Available
24
WASHER; FLAT; S.S.(10)
7555839
9999999
Not Available
25
BOLT(10)
7515130
9999999
Not Available
26
LID STOR.EXTINGUISHER
5432579
9999999
Not Available
27
PAD;FOAM;FIRE EXT.
5810799
9999999
Not Available
28
CAP FIRE EXT. YELLOW
5431398053
Not Available
29
SCREW(10)
7512049
9999999
Not Available
30
BAFFLE AIR INTAKE CUT
5432591
9999999
Not Available

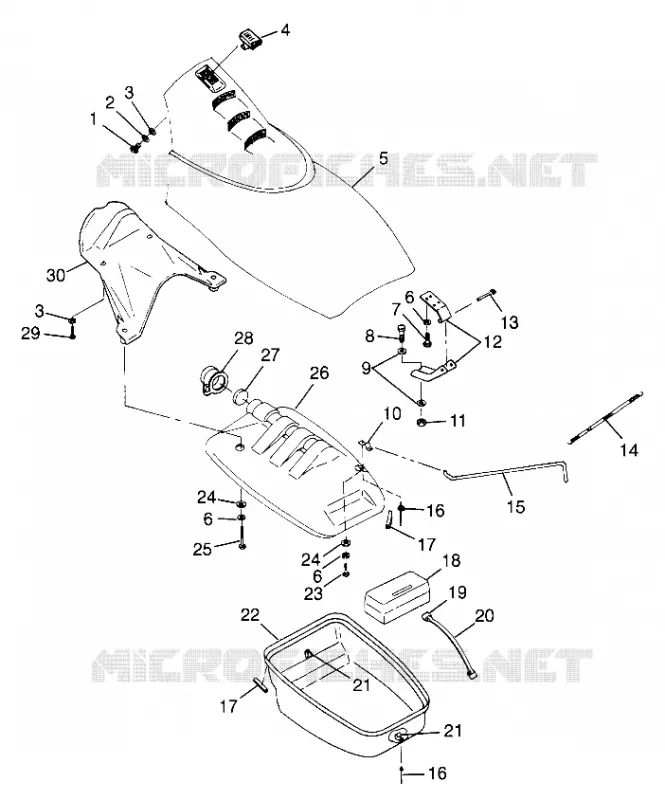

Find the detailed FRONT STORAGE COMPARTMENT SL 780 B974088 AND INTL. SL 780 I974088 (4940924092A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
