1
Engine displacement
autre
2
Year
1989
3
Trim
NOR STAR - N890927
4
Parts Catalog
PISTON AND CRANKSHAFT SPRINT E/S (4915431543025A)
5
Parts Diagram
Parts Catalog
PISTON AND CRANKSHAFT STAR (4915431543024A)
by
MAGNETO STAR (4915431543026A)
PISTON AND CRANKSHAFT SPRINT E/S (4915431543025A)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
-
1
2
2
3
4
4
5
5
6
6
7
8
9
9
10
10
10
10
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
14
14
14
14
15
16
17
18
19
19
-
1
2
2
3
4
4
5
5
6
6
7
8
9
9
10
10
10
10
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
14
14
14
14
15
16
17
18
19
19
-
1
2
2
3
4
4
5
5
6
6
7
8
9
9
10
10
10
10
10
10
10
10
11
11
12
12
12
12
12
12
12
12
13
13
14
14
14
14
15
16
17
18
19
19
-
CRANKSHAFT
3083577
9999999
Not Available
1
CRANKSHAFT #1
3083578
9999999
Not Available
2
CRANKSHAFT #2 ASSEMBLY
3083579
9999999
Not Available
3
CRANKSHAFT #3
3083580
9999999
Not Available
4
CONNECTING ROD
3083581
9999999
Not Available
5
CRANK PIN
3083582
9999999
Not Available
6
BEARING LARGE END
3083583
9999999
Not Available
7
SPACER
3083388
9999999
Not Available
8
BEARING BALL
3083544
9999999
Not Available
9
BALL BEARING
3083805
9999999
Not Available
10
PISTON
3083585
9999999
Not Available
10
SET PISTON .020/.50MM O/S
3083718
9999999
Not Available
11
PIN PISTON
3083586
9999999
Not Available
12
STANDARD PISTON RINGS SET
3083587
9999999
Not Available
12
SET-PISTON RING .020/.50MM O/
3083719
9999999
Not Available
13
SMALL END BEARING
3080998
9999999
Not Available
14
CLIP PISTON PIN
3083759
9999999
Not Available
15
NUT
3083093
7547895
$7,34 Unit Price incl. VAT
16
WASHER-SPRING(10)
3083094
7557228
$6,29 Unit Price incl. VAT
17
KEY
3081447
9999999
Not Available
18
DRIVEGEAR OILPUMP
3083780
9999999
Not Available
19
BALL BEARING
3515501
$47,24 Unit Price incl. VAT

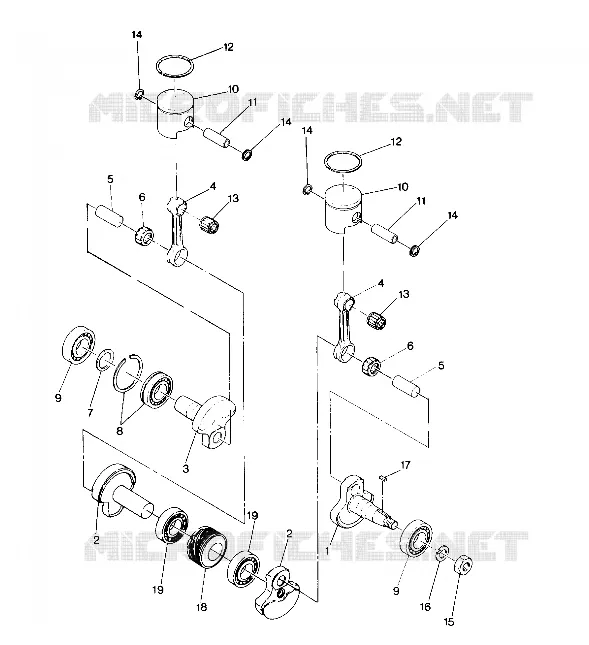

Find the detailed PISTON AND CRANKSHAFT SPRINT E/S (4915431543025A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
