1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

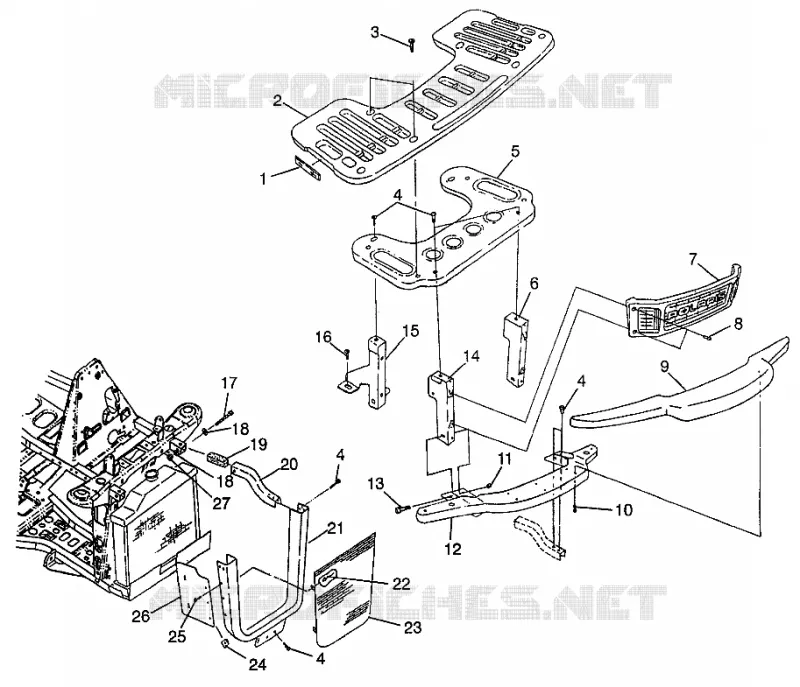

FRONT RACK BUMPER MOUNTING (400L) XPRESS 400L W97CA38C (4939603960A010)
5
Parts Diagram
Parts Catalog
FRONT RACK BUMPER MOUNTING (300) XPRESS 300 W97CA28C (4939603960A009)
by
ENGINE MOUNTING (300) XPRESS 300 W97CA28C (4939603960A011)
FRONT RACK BUMPER MOUNTING (400L) XPRESS 400L W97CA38C (4939603960A010)
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
18
18
19
20
20
20
20
21
22
23
24
25
26
26
26
26
27
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
18
18
19
20
20
20
20
21
22
23
24
25
26
26
26
26
27
1
REFLECTOR AMBER
2670071
9999999
Not Available
2
RACK ASMFRONT
2670180
9999999
Not Available
3
SCREW
7515194
7517685
$3,14 Unit Price incl. VAT
4
SCREW
7515399
9999999
Not Available
5
MOUNT ASMFR.RACK
1040565
9999999
Not Available
6
WELD-SUPPORT FRONT RACK LH BLK
1040471067
Not Available
7
PANEL GRILL BLK
5432299070
Not Available
8
SCREW
7517396
9999999
Not Available
9
BUMPER FRONT BLK
5431774070
Not Available
10
SCREW
7515182
7512095
$9,44 Unit Price incl. VAT
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
MOUNT BUMPER BLK
1040461067
Not Available
13
BOLT
7512130
$7,34 Unit Price incl. VAT
14
WELD-SUPPORT FRONT RACK RH BLK
1040472067
Not Available
15
SUPPORT RH F.RACK
1040555067
Not Available
15
SUPPORT LH F.RACK
1040554067
Not Available
16
BOLT
7512232
$2,09 Unit Price incl. VAT
17
BOLT(10)
7515384
9999999
Not Available
18
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
19
PLUG; FRAME
5810467
9999999
Not Available
20
EXTENSION RH.FRAME BLK.
5241399067
Not Available
20
EXTENSION LH.FRAME BLK.
5241398067
Not Available
21
GUARD BRUSH BLK
5241583067
Not Available
22
POP RIVET
7621330
$2,09 Unit Price incl. VAT
23
GRILL BRUSHGUARD BLK.
5240591067
Not Available
24
NUT
7670094
$10,49 Unit Price incl. VAT
25
SCREW(10)
7512097
9999999
Not Available
26
SHIELD LH RADIATOR
5431814
9999999
Not Available
26
SHIELDRH RADIATOR
5431815
9999999
Not Available
27
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT

Find the detailed FRONT RACK BUMPER MOUNTING (400L) XPRESS 400L W97CA38C (4939603960A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
