1
Engine displacement
300
2
Year
1999
3
Trim
XPLORER 300 - A99CC28CA
4
Parts Catalog
CV JOINT
5
Parts Diagram
Parts Catalog
FRONT TIGHTENER
by
FRONT STRUT
CV JOINT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
HSG.ASM CV W/SLV BTB-GKN
1380119
9999999
Not Available
2
SLEEVE SEAL
5222299
9999999
Not Available
3
CLAMP LARGE
3260115
9999999
Not Available
4
CIRCLIP DRIVESHAFT BTB
7670091
9999999
Not Available
5
CV JOINT BOOT
5411106
9999999
Not Available
6
SHAFT LONG
1380094
2200960
$383,24 Unit Price incl. VAT
7
CARDON WELDLONG
1380092
2200960
$383,24 Unit Price incl. VAT
8
KIT CROSS&BEARING
2200771
9999999
Not Available
9
YOKE SPLINED
3260130
9999999
Not Available
10
SPRING PIN
7661913
$7,34 Unit Price incl. VAT
11
WAVE WASHER
7571605
$11,54 Unit Price incl. VAT
12
CLAMP BAND
7080627
9999999
Not Available
13
KIT BOOT CV JOINT BTB
2200773
9999999
Not Available
14
KIT DRIVESHAFT W/SLV BTB
2200961
2200960
$383,24 Unit Price incl. VAT

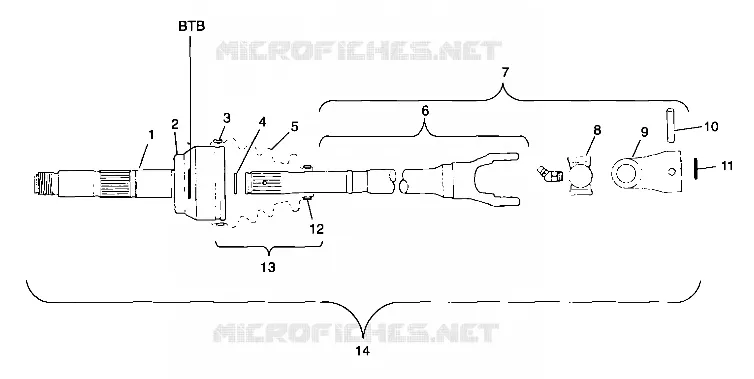

Find the detailed CV JOINT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
