1
RAIL ASM LH [No Longer Available] (Incl. 64-66)
1540622
Not Available
2
RAIL ASM RH (Incl. 64-66)
1540623
Not Available
3
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
4
BOGIE WHEEL BRACKET
5130570
$89,24 Unit Price incl. VAT
5
WASHER
7555743
9999999
Not Available
6
IDLER WHEEL
1594032
9999999
Not Available
7
WASHER FLAT
7555732
9999999
Not Available
8
RIVET
7621501
$4,19 Unit Price incl. VAT
9
TUBESPACER CTR OUTSIDE
5330171067
Not Available
10
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
11
SPACER OUTER
5332784
9999999
Not Available
12
SCREW
7515433
$3,14 Unit Price incl. VAT
13
WASHER
7555804
$7,34 Unit Price incl. VAT
14
BUSHING
7556301
$6,29 Unit Price incl. VAT
15
SPACER
5332786
$13,64 Unit Price incl. VAT
16
SHAFT-PIVOT ARM
5020392
5020723
$47,24 Unit Price incl. VAT
17
SHAFT-PIVOT ARM
5020415
9999999
Not Available
18
TUBE; SUSPENSION
5332783
9999999
Not Available
19
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
20
SPACER
5330152
9999999
Not Available
21
WHEEL IDLER
1594040
Not Available
22
NUT LOCK
7542403
9999999
Not Available
23
BOLT
7512404
$7,34 Unit Price incl. VAT
25
ROLLER-SPRING
5430540
9999999
Not Available
26
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
27
NUT
7542404
$3,14 Unit Price incl. VAT
28
SCREW 3/8-16X3 1/2HXHD TAP
7515459
$10,49 Unit Price incl. VAT
29
SLIDE RED (HIFAX)
5521104
5521452
$73,49 Unit Price incl. VAT
30
DESC NOT_AVAILABLE
7612467
Not Available
31
BUMPER; RAIL
5810554
9999999
Not Available
32
SCREW
7512242
$4,19 Unit Price incl. VAT
33
COVER-RAIL TIP
5430627
9999999
Not Available
34
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
35
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
36
SHAFT REAR IDLER
5020416
Not Available
37
BOLT
7512659
9999999
Not Available
38
TRACK
5410601
Not Available
39
REINF.; BUMPER
5222629
9999999
Not Available
40
INSERT-WHEEL
5430789
5431531
$19,94 Unit Price incl. VAT
41
CLIP METAL(YOKOHAMA)
5222109
9999999
Not Available
42
SPRING EXT.LH.(L.T.)
7041145
Not Available
43
SPRING EXT RH(L.T.)
7041146
Not Available
44
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
45
WHEEL; IDLER
1594021
9999999
Not Available
46
SHAFT PIVOT ARM
5020452
Not Available
47
SPACER IDLER R.INNER Substituted by 5333086
5332734
Not Available
48
SPACER-IDLER-OUTER
5332641
9999999
Not Available
49
SUSP.EXT.ASM.
1540621
Not Available
50
SCREW
7512227
$6,29 Unit Price incl. VAT

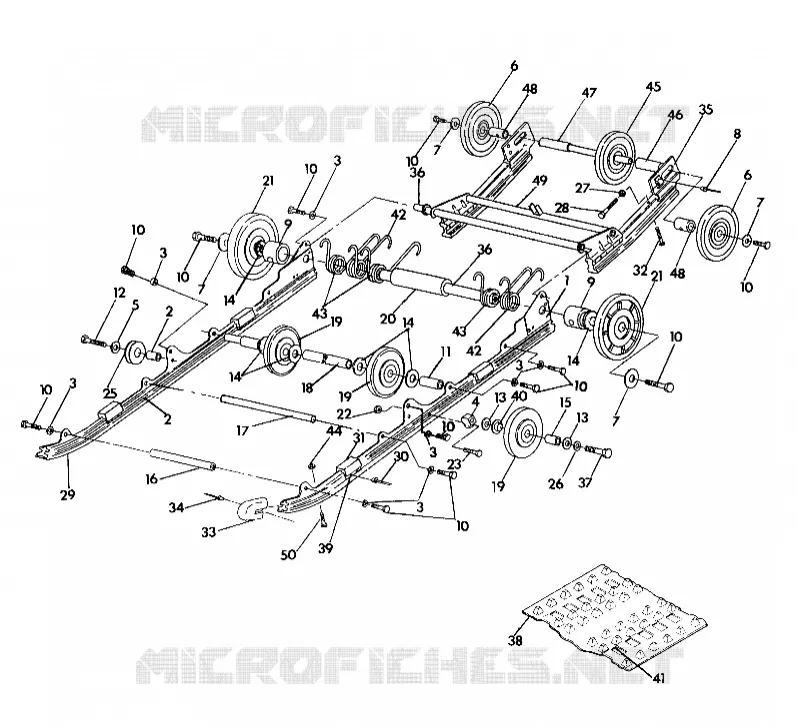

Find the detailed SUSPENSION SUPERTRAK (4921292129023A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
