CHASSIS, CAB FRAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
CAB FRAME WELD; REAR; MATTE BLACK
1022909458
Not Available
2
BOLT M10 X 1.5 X 45
7519906
$9,44 Unit Price incl. VAT
3
HEX NUT; 10 MM X 1.5 MM
7547746
$5,24 Unit Price incl. VAT
4
CAB FRAME WELD; FRONT; LEFT; MATTE BLACK
1023336458
Not Available
5
CAB FRAME WELD; FRONT; RIGHT; MT BLK
1023337458
Not Available
6
CAB FRAME WELD; CENTER; MATTE BLACK
1023318458
Not Available
7
CAB FRAME WELD; REAR; LEFT; MATTE BLACK
1023338458
Not Available
8
CAB FRAME WELD; REAR; RIGHT; MATTE BLACK
1023339458
Not Available
9
SCR-HEXFLGHD M12X90 0600086
7518705
$16,79 Unit Price incl. VAT
10
BOLSTER SEAT WELD; MATTE BLACK
1024839458
Not Available
11
HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM
7519905
$4,19 Unit Price incl. VAT
12
BOLSTER WELD; FRONT; RIGHT; MATTE BLACK
1024888458
Not Available
13
BOLSTER WELD; LEFT; MATTE BLACK
1024803458
Not Available
14
BOLSTER WELD; RIGHT; MATTE BLACK
1024804458
Not Available
15
SCR-M10X1.50X35 HX/FL-Y/D
7518334
$9,44 Unit Price incl. VAT
16
BOLT
7519650
$7,34 Unit Price incl. VAT
17
GLOSS BLACK HEADREST
5439110070
Not Available
18
HEX HEAD NUT; 8 MM X 1.25 MM
7547080
$13,64 Unit Price incl. VAT
19
HEX FLANGE NUT; 12 MM X 1.75 MM
7547441
$9,44 Unit Price incl. VAT
20
RIVET
7621460
$2,09 Unit Price incl. VAT
21
ROPS (ROPS) GRAB HANDLE GLOSS BLK
5450844070
Not Available
22
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
23
HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM
7519133
$3,14 Unit Price incl. VAT
24
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
25
HEX FLANGE NUT; 10 MM X 1.5 MM
7520117
$12,59 Unit Price incl. VAT
26
K-PLATE WSHLD MNT UPR RGR CREW
2208972
$388,49 Unit Price incl. VAT

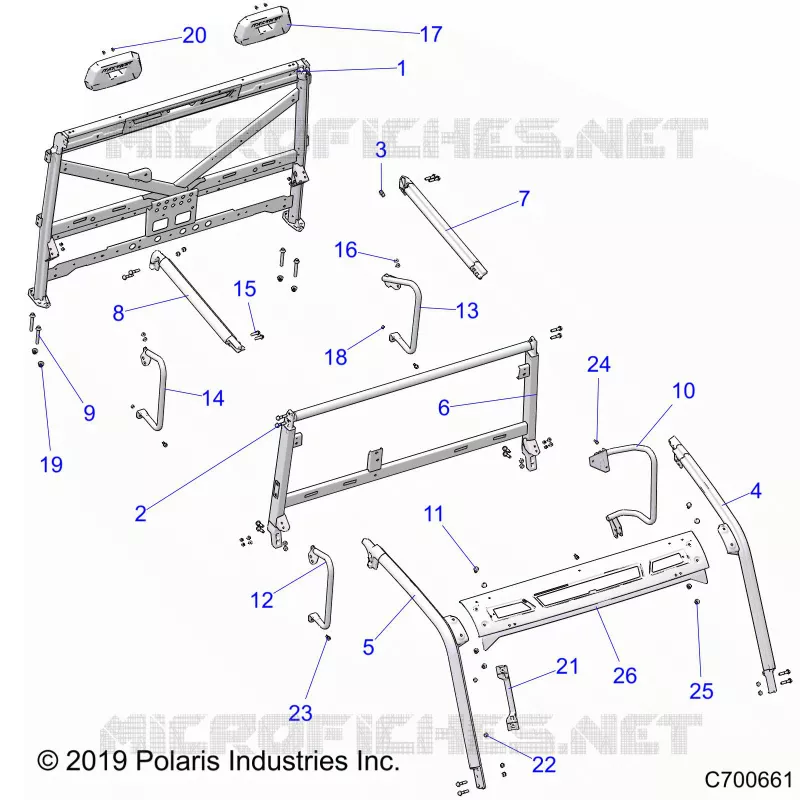

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
