1
Engine displacement
700
2
Year
1998
3
Trim
700 RMK - 0980966
4
Parts Catalog
CONSOLE 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372A013)
5
Parts Diagram
Parts Catalog
HOOD
by
MASTER CYLINDER 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372A014)
CONSOLE 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372A013)
1
2
3
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
2
3
4
5
6
7
8
8
9
10
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
1
RIVET (50)
7621477
9999999
Not Available
2
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT
3
BRKT ROPE GUIDE BLK.
5222682067
Not Available
4
CONSOLE
5222756067
Not Available
5
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
6
CABLE CHOKE
7080636
9999999
Not Available
7
KIT IGN. SWITCH
2200357
9999999
Not Available
8
SW;HEATER;HI-LOW
4110077
9999999
Not Available
9
HOUSING SOCKET
4020133
9999999
Not Available
10
HOUSING
4020057
9999999
Not Available
11
HARNESS MAIN WIRE(EURO)
2460580
9999999
Not Available
11
HARNESS MAIN WIRE
2460579
Not Available
12
HOUSING 1 CIRCUIT
4020153
9999999
Not Available
13
DECAL CONSOLE [No Longer Available]
7073075
Not Available
14
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
15
REGULATOR (14.3VAC) LR-7
4060123
2203873
$188,99 Unit Price incl. VAT
16
SPACERREGULATOR
5211573
9999999
Not Available
17
SCREW
7512031
9999999
Not Available
18
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
19
CAP W/KEY
5410611
9990000
Not Available
20
NUT IGNITION
7547035
$15,74 Unit Price incl. VAT
21
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
22
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT

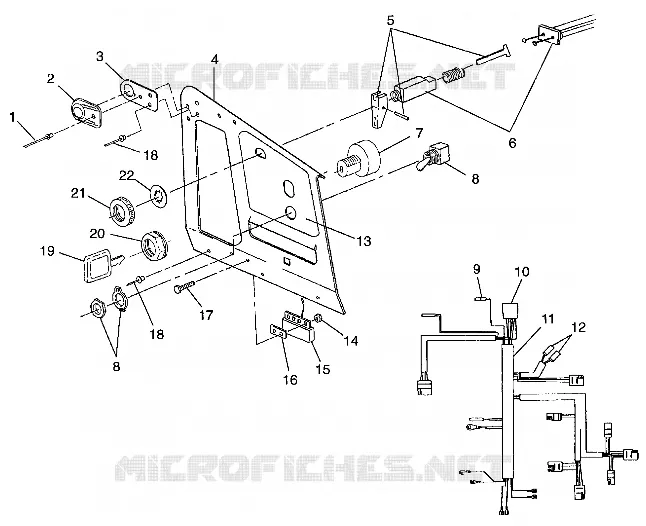

Find the detailed CONSOLE 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372A013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
