REAR BRAKE/FOOT PEDAL
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
22
1
2
3
4
4
4
4
5
6
7
8
9
10
11
11
12
13
14
14
15
15
16
17
18
19
20
21
22
1
BOLT(10)
7515497
9999999
Not Available
2
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
3
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
4
CALIPER ASM;BRAKE;WWOOD;4X4
1930818
9999999
Not Available
4
REAR AXLE WW BRAKE PADS KIT
2201189
2202411
$56,16 Unit Price incl. VAT
5
LINE R.BRAKE WWOOD
1930853
9999999
Not Available
6
LINE BRAKE CALIPER W/FTNGS.
1910305
9999999
Not Available
7
BOLT
7512111
9999999
Not Available
8
BRAKE RESERVOIR KIT; REAR
1930854
9999999
Not Available
9
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
10
HOSE RESERVOIR 1/4#ID
1930855
Not Available
11
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
12
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
13
TORSION SPRING; BRAKE
7041750
$16,79 Unit Price incl. VAT
14
WASHER
7555919
$7,34 Unit Price incl. VAT
15
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
16
ROD BRAKE BLK.
1910280067
Not Available
17
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
18
CYLINDER MASTER BRAKE REAR
1910301
1911113
$325,49 Unit Price incl. VAT
19
SCREW
7515158
$9,44 Unit Price incl. VAT
20
DISC BRAKE ASSEMBLY
1910188
9999999
Not Available
21
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
22
NUT NYLOC
7547046
9999999
Not Available

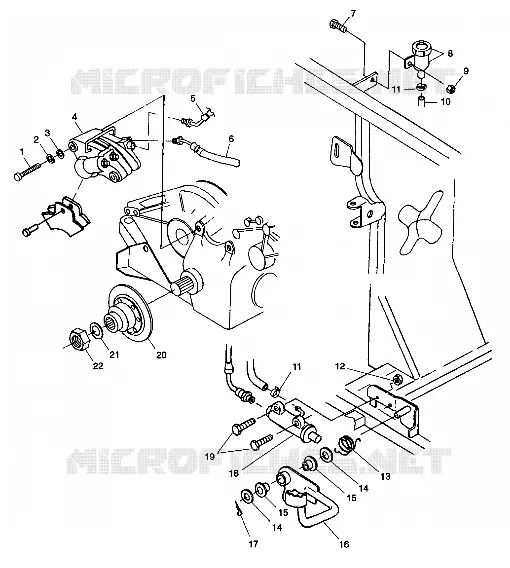

Find the detailed REAR BRAKE/FOOT PEDAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

SPORTSMAN 500 500 1998
