REAR SUSPENSION SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005)
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
12
12
12
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
18
19
20
20
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
35
35
35
35
36
37
38
39
40
41
41
42
42
42
42
43
44
45
1
1
2
3
3
4
4
5
5
5
5
6
6
6
6
7
8
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
12
12
12
13
14
14
15
15
16
16
17
17
17
17
18
18
18
18
18
19
20
20
20
20
21
22
23
24
24
25
26
27
28
29
30
31
32
33
33
34
35
35
35
35
36
37
38
39
40
41
41
42
42
42
42
43
44
45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
BOLT
7512329
$7,34 Unit Price incl. VAT
2
ARM STAB.BAR BLK
1580096067
Not Available
3
NUT FLEX-LOC
7542303
9999999
Not Available
4
SCREW
7517231
$13,64 Unit Price incl. VAT
5
WASHER
7555761
$4,19 Unit Price incl. VAT
6
BUSHING STABILIZER LINK
5432119
5432598
$12,59 Unit Price incl. VAT
7
LINKAGE ROD STABILIZER
5020827
$99,74 Unit Price incl. VAT
8
SHORT A-ARM SHAFT
5020826
$23,09 Unit Price incl. VAT
9
BUSHING A-ARM SHORT
5432091
5439270
$4,19 Unit Price incl. VAT
10
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
11
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
12
BOLT
7515472
$4,19 Unit Price incl. VAT
13
BAR STAB.TUBE BLK.
5333393067
Not Available
14
WASHER
7555939
9999999
Not Available
15
BUSHING STAB.TUBE
5432169
5438901
$16,79 Unit Price incl. VAT
16
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
17
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
18
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
19
SUPPORT STABILIZER BLK
1580097067
Not Available
20
NUT LOCK
7542403
9999999
Not Available
21
BRKT A-ARM PIVOT BLK
5224659067
Not Available
22
SCREW
7515433
$3,14 Unit Price incl. VAT
23
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
24
BOLT
7515321
9999999
Not Available
25
TRANSMISSION SUPPORT; UPPER; GS BLK
5224667067
Not Available
26
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
27
RETAINER SPRING
5131533
9999999
Not Available
28
SPRING R.COMP 100LB/IN BLK
7041546067
Not Available
29
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available
30
CAM ADJUSTING SPRING
5630334
9999999
Not Available
31
SHOCK; REAR; ATV
7041454
9999999
Not Available
32
ADAPTER SPRING SEAT
5630351
9999999
Not Available
33
BUSHING A-ARM LONG.
5431596
5436973
$9,44 Unit Price incl. VAT
34
SHAFT; A-ARM
5020681
5133806
$52,49 Unit Price incl. VAT
35
CONTROL RH LOW BLK.
1040446067
Not Available
35
CONTROLLHLOWBLK
1040445067
Not Available
36
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
37
SCREW
7515415
9999999
Not Available
38
BOLT
7515502
9999999
Not Available
39
WASHER
7555936
$7,34 Unit Price incl. VAT
40
BUSHING BRNG.CARRIER ALUM
5020825
9999999
Not Available
41
BUSHING CONTROL LOWER
5432092
5438902
$8,39 Unit Price incl. VAT
42
CONTROL LH UPPER BLK
1040443067
Not Available
42
CONTROL RH UPPER BLK
1040444067
Not Available
43
FITTING LUBE 45 DEG.(10)
7080586
9999999
Not Available
44
CARRIER BRG WHEEL (MACH)
5131186
5134206
$195,29 Unit Price incl. VAT
45
BEARING
3585502
3514635
$73,49 Unit Price incl. VAT

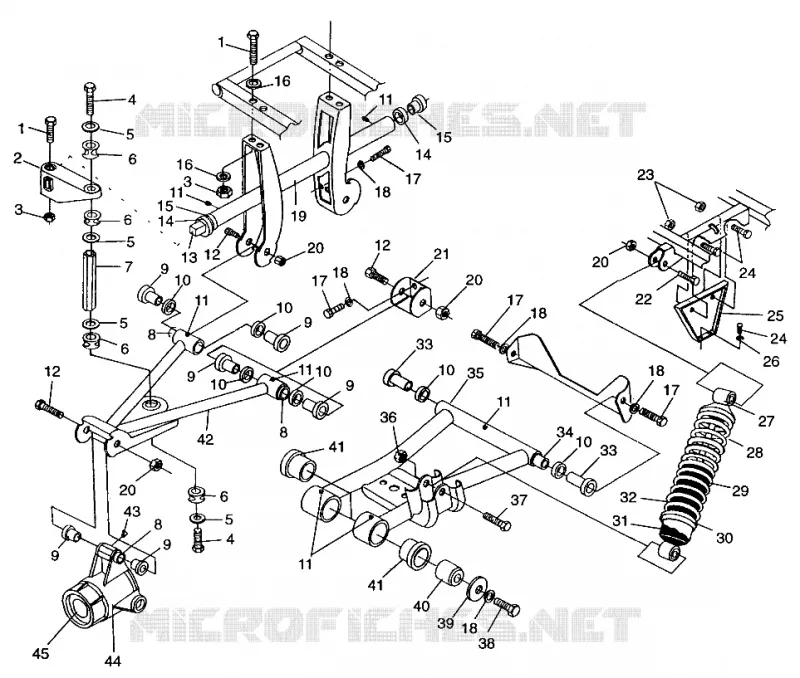

Find the detailed REAR SUSPENSION SPORTSMAN 500 W969244 AND SWEDISH SPORTSMAN 500 S969244 (4936093609C005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
