FRONT SUSPENSION AND SKI ULTRA SP 0970678 (4938093809B001)
1
2
2
3
4
5
6
6
7
8
9
10
10
11
11
11
11
12
12
12
12
13
13
14
15
16
17
17
17
17
18
19
19
19
20
21
21
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
42
43
44
45
46
47
48
49
50
51
52
1
BRACE FR.BULKH. BLK Substituted by 5242112-067
5241641067
Not Available
2
STRAP SPACER BOTTOM
5211345
9999999
Not Available
3
NUT FLEXOC;
7542703
9999999
Not Available
4
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
5
BOLT
7512551
9999999
Not Available
6
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
7
BOLT(10)
7515515
9999999
Not Available
8
BAR SWAY BLK
5224742067
Not Available
9
SWAY BAR BUSHING
5432038
9999999
Not Available
10
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
11
NUT; FLEXLOC B
7542456
9999999
Not Available
12
ARM RH STRG BLK.
5241661067
Not Available
12
ARM LH STRG BLK.
5241660067
Not Available
13
WASHER
7555721
$2,09 Unit Price incl. VAT
14
BUSHING TUBE
5010310
9999999
Not Available
15
RUBBER PIVOT
5410872
9999999
Not Available
16
BOLT
7512557
9999999
Not Available
17
ARM TRLG RH
1822450
9999999
Not Available
17
ARM;TRLG;LH
1822449
9999999
Not Available
18
SWAYBAR SLIDE; 5/8
5432331
9999999
Not Available
19
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
20
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
21
STOP RH STRG BLK.
5241778067
Not Available
21
STOP LH STRG BLK
5241777067
Not Available
22
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
23
BUSHING
7556509
$3,14 Unit Price incl. VAT
24
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
25
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
26
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
27
STOP; RUBBER
5411083
9999999
Not Available
28
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
29
SKI WELD
1820430067
Not Available
30
SCREW
7515462
9999999
Not Available
31
SKAG PR.3 CARBIDE(STEEL SKI)
2870693
$99,74 Unit Price incl. VAT
32
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
33
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
34
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
35
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
36
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
37
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
38
SPRING COMP IFS
7041550067
Not Available
39
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
40
SHOCK GAS IFS SELECT
7041523
9999999
Not Available
41
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
42
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
43
ROD RAD LOWER BLK
1822377067
Not Available
44
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
45
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
46
BOLT
7512678
$36,74 Unit Price incl. VAT
47
RIVET
7621452
9999999
Not Available
48
BRACE PAN
5223997067
Not Available
49
NUT FLEXLOCK
7542503
9999999
Not Available
50
ROD END; RH
7060155
9999999
Not Available
51
NUT JAM(10)
7542520
9999999
Not Available
52
RODRADUPPERBLK
1822375067
Not Available

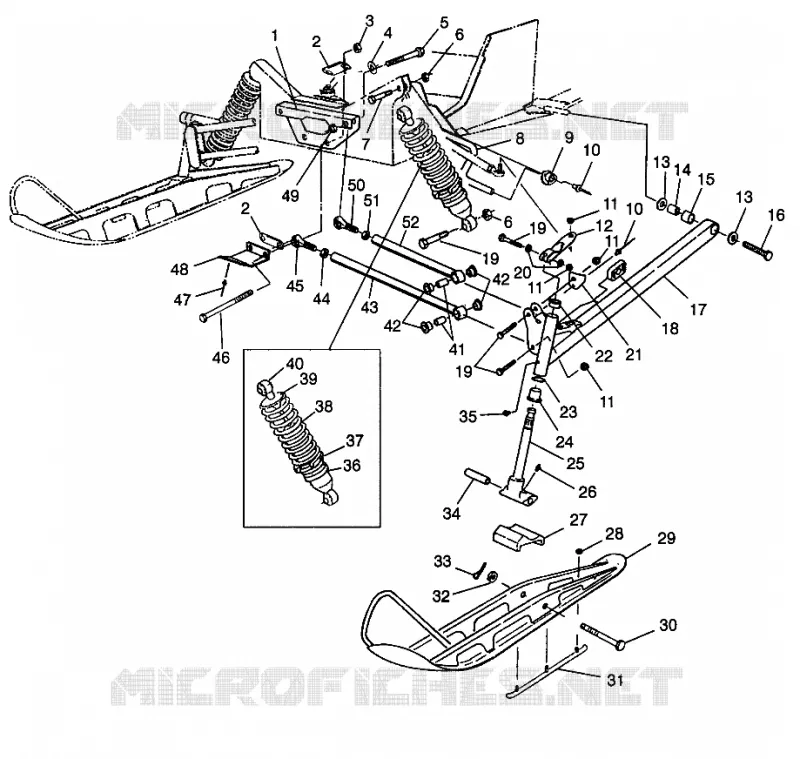

Find the detailed FRONT SUSPENSION AND SKI ULTRA SP 0970678 (4938093809B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
