1
Engine displacement
600
2
Year
1996
3
Trim
EURO 600 XCR SP - E965677
4
Parts Catalog
CARBURETOR 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D005)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D004)
by
RECOIL STARTER 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D006)
CARBURETOR 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D005)
1
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
2
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
3
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
4
CLIP
3130613
9999999
Not Available
5
HOSE
3130659
Not Available
6
NIPPLE
3130611
9999999
Not Available
7
HOSE
3130605
9999999
Not Available
8
CARBURETOR #1
3130656
9999999
Not Available
8
CARBURETOR #2
3130657
9999999
Not Available
9
CAP (Center Side Only)
3130658
Not Available
10
SPRING AIR ADJUST
3130012
9999999
Not Available
11
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
12
SPRING
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
JET PILOT #40(10)
3130067
9999999
Not Available
15
PLATE
3130243
9999999
Not Available
16
RING CARB
3130232
9999999
Not Available
17
HEX HEAD MAIN JET
3130141
9999999
Not Available
18
FLOAT CHAMBER GASKET
3130236
$20,99 Unit Price incl. VAT
19
CAP
3130237
$8,39 Unit Price incl. VAT
20
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
21
SCREW
3130056
9999999
Not Available
22
NIPPLE
3130573
$68,24 Unit Price incl. VAT
23
O-RING
3130239
9999999
Not Available
24
ARM FLOAT
3130048
9999999
Not Available
25
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
26
NEEDLE VALVE ASSEMBLY
3130643
9999999
Not Available
27
WASHER
3130047
$9,44 Unit Price incl. VAT
28
JET AIR (PAJ1) (PAJ1)
3130256
Not Available
29
CAP
3130479
$31,49 Unit Price incl. VAT
30
NEEDLE JET
3130477
9999999
Not Available
31
VALVE THROTTLE (2.5) (2.5)
3130606
Not Available
32
NEEDLE JET
3130476
9999999
Not Available
33
E-RING
3130508
$12,59 Unit Price incl. VAT
34
PLATE THROTTLE
3130054
9999999
Not Available
34
Desc not available Substituted by 3130045 (Throttle) (MAG & PTO Side)
3081400
Not Available
35
SPRING THROTTLE
3130444
9999999
Not Available
36
TOP ASM.
3130644
Not Available

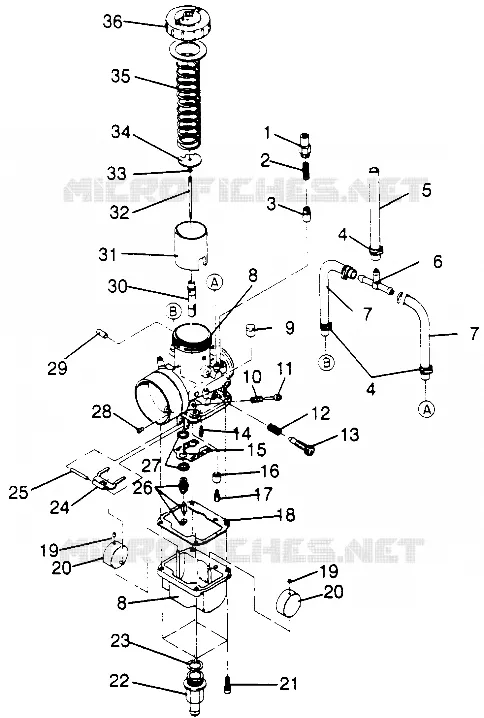

Find the detailed CARBURETOR 600 XCR SP 0965677 AND EUROPEAN 600 XCR SP E965677 (4932063206D005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
