CARBURETOR ASSEMBLY (4913491349034A) for POLARIS TRAIL BOSS

OIL PUMP ASSEMBLY (4913491349033A)

STARTING MOTOR ASSEMBLY (4913491349035A)

CARBURETOR

3130383

9999999

Not Available

CAP ASM.

3130363

Not Available

THROTTLE SPRING

3130354

9999999

Not Available

THROTTLE PLATE

3130002

9999999

Not Available

E RING

3130003

3130508

$12,59 Unit Price incl. VAT

NEEDLE-JET (5DP7-2)

3130356

3130155

$52,49 Unit Price incl. VAT

WASHER

3130355

9999999

Not Available

VALVE THROTTLE 2.5

3130384

9999999

Not Available

NEEDLE JET;O-0(169)

3130385

9999999

Not Available

CAP; PLUNGER

3130359

9999999

Not Available

SPRING PLUNGER

3130006

3131764

$18,89 Unit Price incl. VAT

PLUNGER ASSEMBLY

3130328

$68,24 Unit Price incl. VAT

SPRING

3130010

$18,89 Unit Price incl. VAT

SCREW THROTTLE STOP

3130324

9999999

Not Available

KIT-TANK VENT

2200190

9990000

Not Available

SCREW AIR Substituted by 3130011

3130233

Not Available

SPRING AIR ADJUST

3130012

9999999

Not Available

JET PILOT #50

3130069

9999999

Not Available

WASHER

3130014

$3,14 Unit Price incl. VAT

ASM. SCREW & WASHER(10)

3130025

$6,29 Unit Price incl. VAT

DRAIN PLUG

3130321

$41,99 Unit Price incl. VAT

O-RING

3130239

9999999

Not Available

HEX HEAD MAIN JET #145

3130112

9999999

Not Available

FLOAT ASSEMBLY

3130021

$83,99 Unit Price incl. VAT

CAP

3130237

$8,39 Unit Price incl. VAT

FLOAT CHAMBER GASKET

3130020

$31,49 Unit Price incl. VAT

NEEDLE VALVE

3130360

$89,24 Unit Price incl. VAT

ARM FLOAT

3130018

$52,49 Unit Price incl. VAT

FLOAT PIN

3130361

$18,89 Unit Price incl. VAT

NEEDLE VALVE PACKING

3130017

$7,34 Unit Price incl. VAT

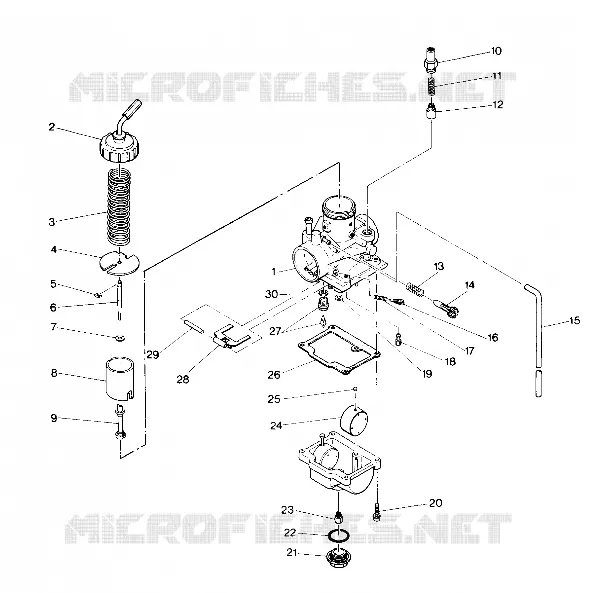

Find the detailed CARBURETOR ASSEMBLY (4913491349034A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
