CHASSIS, CAB for POLARIS RANGER 1000 BACK COUNTRY 49S from 2019

REAR CLOSEOFF AND FENDERS

DRIVE TRAIN, CLUTCH COVER AND DUCTING

CHASSIS, CAB

1

CAB FRAME WELD; REAR; MATTE BLACK

1022909458

Not Available

2

CAB FRAME WELD; FRONT; LEFT; MATTE BLACK

1022910458

Not Available

3

CAB FRAME WELD; FRONT; RIGHT; MT BLK

1022911458

Not Available

4

BOLSTER SEAT WELD; MATTE BLACK

1023194458

Not Available

5

BOLSTER WELD; RIGHT; MATTE BLACK

1023166458

Not Available

6

GLOSS BLACK HEADREST

5439110070

Not Available

7

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

7

PLATE-WNDSHLD MNT;UPR;BLK

5265996458

Not Available

8

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

9

SCR-HEXFLGHD M12X90 0600086

7518705

$16,79 Unit Price incl. VAT

10

HEX FLANGE NUT; 12 MM X 1.75 MM

7547441

$9,44 Unit Price incl. VAT

11

BOLT M10 X 1.5 X 45

7519906

$9,44 Unit Price incl. VAT

12

HEX NUT; 10 MM X 1.5 MM

7547746

$5,24 Unit Price incl. VAT

13

HEX HEAD NUT; 8 MM X 1.25 MM

7547080

$13,64 Unit Price incl. VAT

14

ROPS (ROPS) GRAB HANDLE GLOSS BLK

5450844070

Not Available

15

BOLT

7519650

$7,34 Unit Price incl. VAT

16

RIVET

7621460

$2,09 Unit Price incl. VAT

17

HEX FLANGE SCREW; 10 MM X 1.5 MM X 20 MM

7519905

$4,19 Unit Price incl. VAT

18

HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM

7519133

$3,14 Unit Price incl. VAT

19

HEX FLANGE NUT; 10 MM X 1.5 MM

7520117

$12,59 Unit Price incl. VAT

20

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

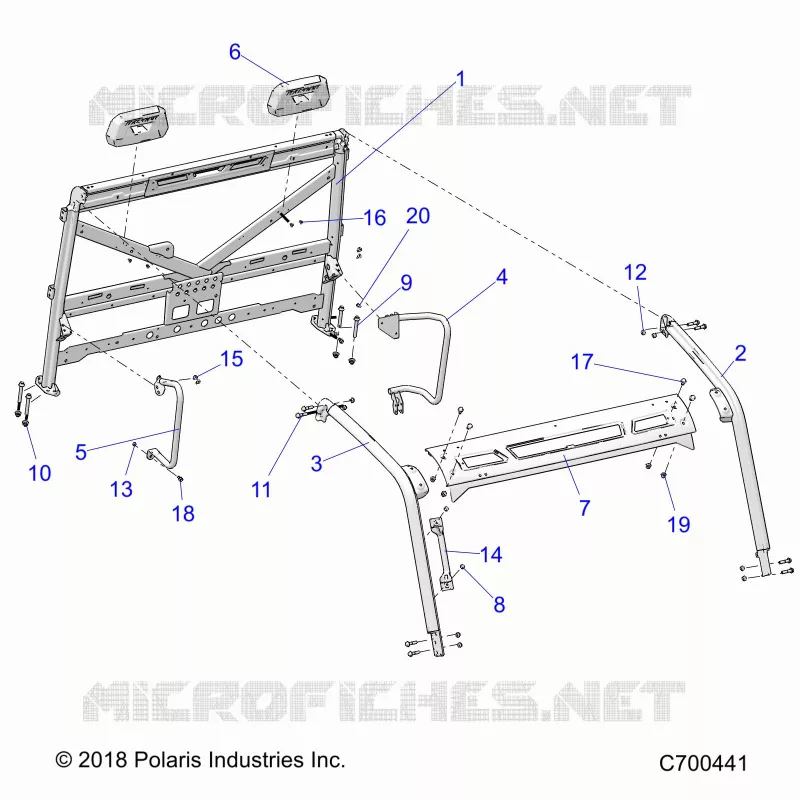

Find the detailed CHASSIS, CAB POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
