MASTER CYLINDER 500 SP/500 SKS (4921262126019A) for POLARIS 500 SP EFI - 0920674 from 1992

MASTER CYLINDER 500 SP/500 SKS (4921262126019A)

1

SCREW(10)

7512016

9999999

Not Available

2

COVER MASTER CYL.

5630338

9999999

Not Available

3

MASTER CYLINDER GASKET

5410527

9999999

Not Available

4

HSG; MASTER CYL.

5130790

2050056

Not Available

5

BUSHING BRAKE LEVER

5332931

9999999

Not Available

6

LEVER; BRAKE

5630381

9999999

Not Available

7

SPRING PK.BRAKE

7041229

9999999

Not Available

8

NUT

7542124

7542122

$2,09 Unit Price incl. VAT

9

LEVER PARK.BRAKE

5222669

9999999

Not Available

10

SCREW

7511866

$9,44 Unit Price incl. VAT

11

BUSHING PK.BRAKE LEVER

5020545

9999999

Not Available

12

WASHER

7555708

9999999

Not Available

13

COMPRESSION SPRING

7041203

9999999

Not Available

14

U-PACKING SEAL

5410164

9999999

Not Available

15

PISTON MASTER CYL.

5020520

9999999

Not Available

16

O-RING

5410163

$3,14 Unit Price incl. VAT

17

BOLT SOCKET HEAD

7512290

$9,44 Unit Price incl. VAT

18

CLAMP MASTER CYL.

5630342

9999999

Not Available

19

BOLT BRAKE LEVER

7512287

9999999

Not Available

20

MASTER CYL.ASM. Substituted by 2050056

2050054

Not Available

21

BAFFLE MASTER CYL.

1930673

9999999

Not Available

22

WASHER; BAFFLE

1930662

9999999

Not Available

23

STRAP PARK.BRAKE TAG

7080447

9999999

Not Available

24

TAG-PARK BRAKE WARNING [S99CM][FROM 5/18/2018]

5431389

Not Available

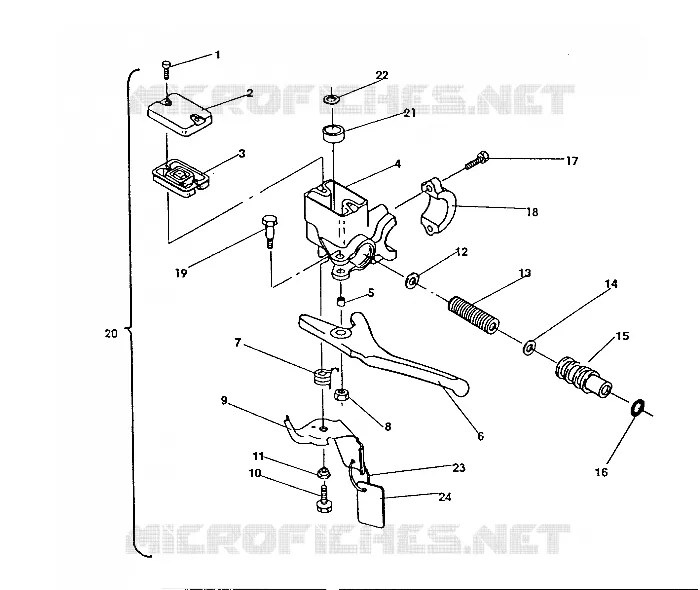

Find the detailed MASTER CYLINDER 500 SP/500 SKS (4921262126019A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
