1
Engine displacement
autre
2
Year
1996
3
Trim
XLT RMK - 0960956
4
Parts Catalog

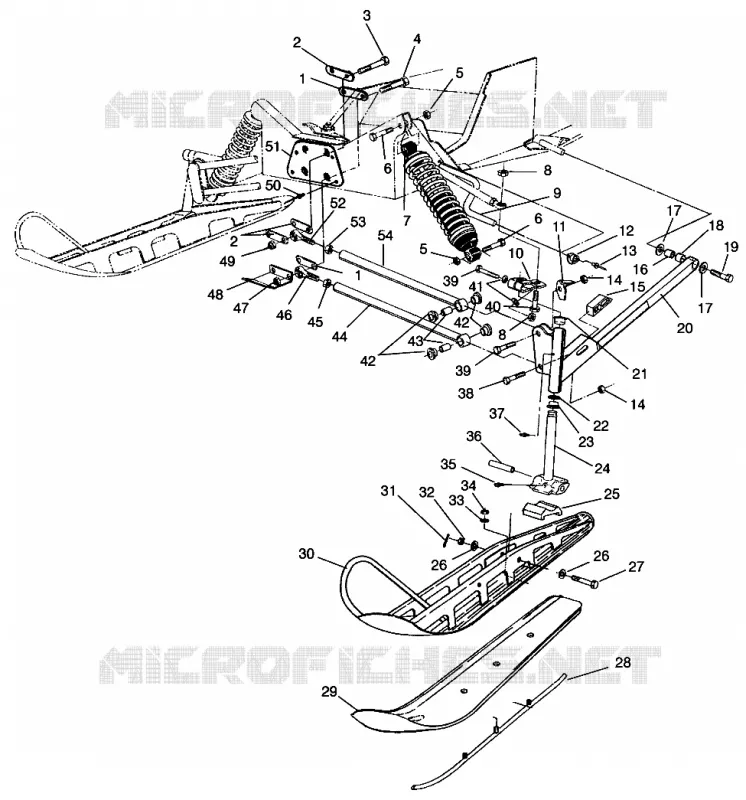

FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001)
5
Parts Diagram
Parts Catalog
HOOD
by
FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)
FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001)
1
STRAP SPACER BOTTOM
5211345
9999999
Not Available
2
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
3
BOLT
7512551
9999999
Not Available
4
BOLT
7512656
9999999
Not Available
5
NUT; NYLOC
7542453
7542439
$2,09 Unit Price incl. VAT
6
BOLT(10)
7515515
9999999
Not Available
7
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available
7
COMPRESSION SPRING
7041261067
Not Available
7
CAM ADJUSTING SPRING
5630334
9999999
Not Available
7
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
7
SHOCK FR.SUSP.
7041282
9999999
Not Available
8
NUT; FLEXLOC B
7542456
9999999
Not Available
9
BAR SWAY BLACK
5224237067
Not Available
10
STEERING ARM
5220326067
Not Available
11
STOP STRNG RH BLK.
5220238067
Not Available
11
STOP STRNG LH BLK.
5220237067
Not Available
12
BUSHING-SWAYBAR
5410383
9999999
Not Available
13
RIVET
7621433
$2,09 Unit Price incl. VAT
14
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
15
SLIDE-SWAYBAR
5410384
9999999
Not Available
16
PIVOT-TRAILING ARM
5410382
9999999
Not Available
17
WASHER
7555721
$2,09 Unit Price incl. VAT
18
TUBE TRAILING ARM
5010187
9999999
Not Available
19
BOLT
7512557
9999999
Not Available
20
ARM TRLG LH.
1822427
9999999
Not Available
20
ARM;TRLG;RH
1822428
9999999
Not Available
21
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
22
BUSHING
7556509
$3,14 Unit Price incl. VAT
23
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
24
SPINDLE BLK.
6230073067
Not Available
25
STOP RUBBER
5521276
9999999
Not Available
26
WASHER; WROUGHT
7555928
7555801
$7,34 Unit Price incl. VAT
27
BOLT(10)
7515541
9999999
Not Available
28
60 DEG4 CARBIDE(STEEL SKI)
2871288
$110,24 Unit Price incl. VAT
29
SKISKINS PUR(5 3/4#) (Lavender)
2871144171
Not Available
30
SKI BLK. [No Longer Available]
1820362067
Not Available
31
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
32
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
33
WASHER
7571628
9999999
Not Available
34
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
35
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
36
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
37
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
38
BOLT
7515492
7515540
$9,44 Unit Price incl. VAT
39
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
40
BOLT
7512404
$7,34 Unit Price incl. VAT
41
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
42
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
43
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
44
ROD RAD.LOW.
1822123067
Not Available
45
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
46
ROD END;RH
7060156
7061071
$99,74 Unit Price incl. VAT
47
NUT FLEXOC;
7542703
9999999
Not Available
48
BRACE PAN
5223997067
Not Available
49
NUT FLEXLOCK
7542503
9999999
Not Available
50
RIVET
7661637
$2,09 Unit Price incl. VAT
51
BRACE BLKHD/STRG BLK.
5211589067
Not Available
52
ROD END; RH
7060155
9999999
Not Available
53
NUT JAM(10)
7542520
9999999
Not Available
54
ROD RAD.UP.
1822121067
Not Available

Find the detailed FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
