PROPULSION SL 900 B974091 AND SL 1050 B974090 (4940974097B003)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
1
2
3
3
4
5
6
7
7
7
7
8
9
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
1
2
3
3
4
5
6
7
7
7
7
8
9
9
10
11
12
12
12
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
NUT HEX S.S.(10)
7542455
9999999
Not Available
2
BRKT;STRG.CABLE
5241741
9999999
Not Available
3
STUD PUMP MTG.
5020842
9999999
Not Available
4
SEAL WATER PIPE
5411107
9999999
Not Available
5
PIPE WATER ENG. RESTRICTED
5131545
9999999
Not Available
6
O RING;(10)
5410735
9999999
Not Available
7
STATOR PUMP MACH
5131708
9999999
Not Available
7
STATOR PUMP HI-PERF.
5131726
9999999
Not Available
8
SPACER
5010294
9999999
Not Available
9
BEARING
3514008
9999999
Not Available
10
SEAL BRG STATOR
3610043
9999999
Not Available
11
SPACER IMPELLER
5010295
9999999
Not Available
12
IMPELLER3 BLADE6.410
5131686
9999999
Not Available
12
IMPELLER 3-BLADE 17/25 SS .450
5131588
9999999
Not Available
13
EXTENSION PUMP
5131196
9999999
Not Available
14
SCREW(10)
7522019
9999999
Not Available
15
ANODE-ZINC
5630598
9999999
Not Available
16
WASHER PUMPSTUD SEAL
7555941
9999999
Not Available
17
HSG PUMP W/O RING INT STUD
5131573
9999999
Not Available
18
WASHER
7555966
$4,15 Unit Price incl. VAT
19
O-RING(10)
5410817
9999999
Not Available
20
SCREEN ENG.INLET
5431523
9999999
Not Available
21
NOZZLE STRG.REVERSE
5130960
9999999
Not Available
22
BOLT S.S.
7515366
9999999
Not Available
23
BOLT; S.S.
7515361
9999999
Not Available
24
FLAT WASHER; SS
7555874
$4,19 Unit Price incl. VAT
25
COLLAR
5130938
9999999
Not Available
26
SWIVELROD END
5131463
9999999
Not Available
27
NOZZLE TRIM
5431765
9999999
Not Available
28
WASHER
7555866
9999999
Not Available
29
PIN; COTTER
7661010
$1,56 Unit Price incl. VAT
30
WASHER LOCK S.S.
7552610
9999999
Not Available
31
WASHER FLAT S.S.(10)
7555835
9999999
Not Available
32
BRG STRG.NOZZLE
5431518
9999999
Not Available
33
BOLT
7515389
9999999
Not Available
34
NOZZLE STAT. 0X4 WEDGE
5131569
9999999
Not Available
35
WEDGE PUMP (0DEGX4DEG)
5630662
9999999
Not Available
36
SCREW
7512064
9999999
Not Available
37
CONE PUMP
5431519
9999999
Not Available
38
O-RING(10)
5410819
9999999
Not Available
39
SHAFT; STUB
5020697
9999999
Not Available
40
O-RING(10)
5410818
9999999
Not Available

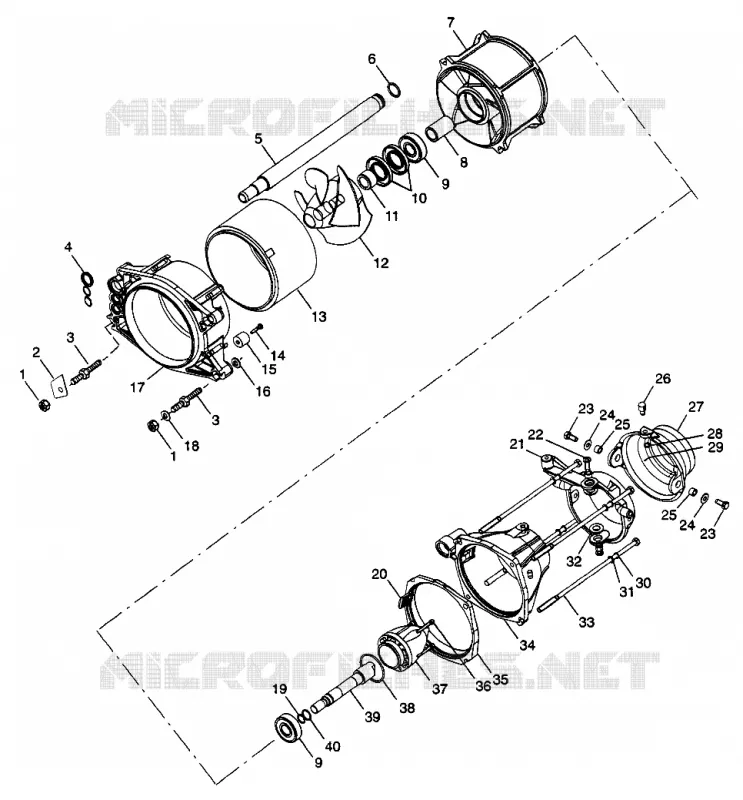

Find the detailed PROPULSION SL 900 B974091 AND SL 1050 B974090 (4940974097B003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

List of compatible models

SL 1050 1997
