1
Engine displacement
autre
2
Year
2001
3
Trim
DIESEL - A10CH46CA
4
Parts Catalog
GEAR SELECTOR
5
Parts Diagram
Parts Catalog
FRONT HOUSING
by
GOVERNOR
GEAR SELECTOR
-
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
14
14
14
15
15
16
17
17
18
19
20
21
22
23
-
SELECTOR ASM;GEAR
1341271
9999999
Not Available
1
KNOB ASM;HI/LO/REV.
3233195
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
SCREW
3233649
9999999
Not Available
4
WIRE STRAP
3233131
9999999
Not Available
5
GEAR SELECTOR BOOT COVER
3233648
9999999
Not Available
6
HANDLE GEAR SELECTOR SUBASSEMBLY
3233658
9999999
Not Available
7
SPHERE; PLASTIC
3233646
9999999
Not Available
8
DOWEL PIN
3233754
$14,69 Unit Price incl. VAT
9
PIN-DOWEL
3233644
9999999
Not Available
10
DETENT SPRING
3233642
9999999
Not Available
11
DETENT BULLET
3233060
9999999
Not Available
12
O-RING
3233076
$11,54 Unit Price incl. VAT
13
SLIDE-LOW
3233639
9999999
Not Available
14
NUT
7546707
7546703
$2,09 Unit Price incl. VAT
15
ROD END; RIGHT; 6 MM
7061014
9999999
Not Available
16
BOLT
7546702
9999999
Not Available
17
ROD END; LEFT; 6 MM
7061013
$120,74 Unit Price incl. VAT
18
ROD SHIFT LINKAGE 14.55
5132198
9999999
Not Available
19
ROD SHIFT LINKAGE 13.78
5020743
9999999
Not Available
20
NUT
7546701
9999999
Not Available
21
SLIDE-HIGH/REV
3233640
9999999
Not Available
22
SELECTOR GEAR; BODY
3233641
9999999
Not Available
23
SPRING-CENTERING
3233643
9999999
Not Available

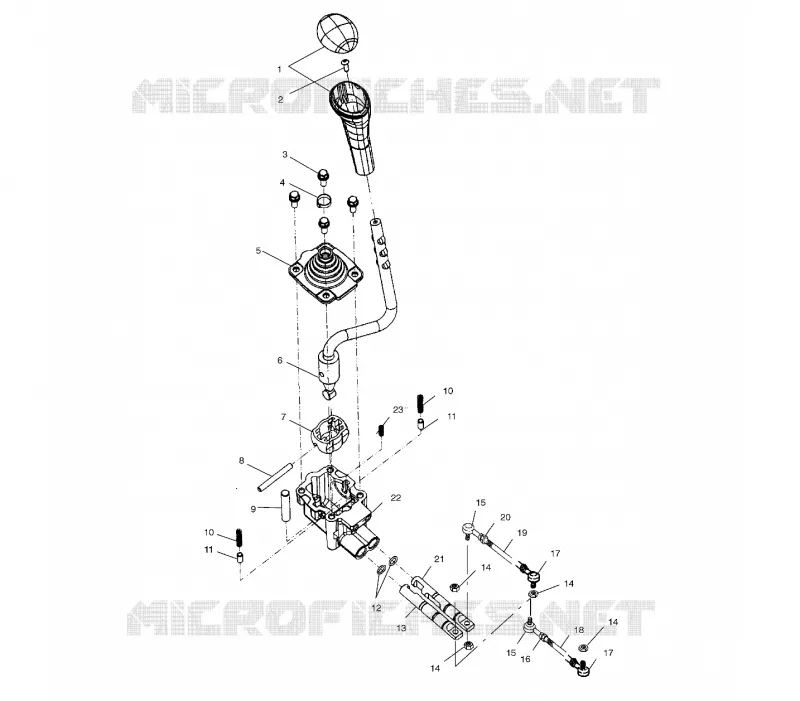

Find the detailed GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
