1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

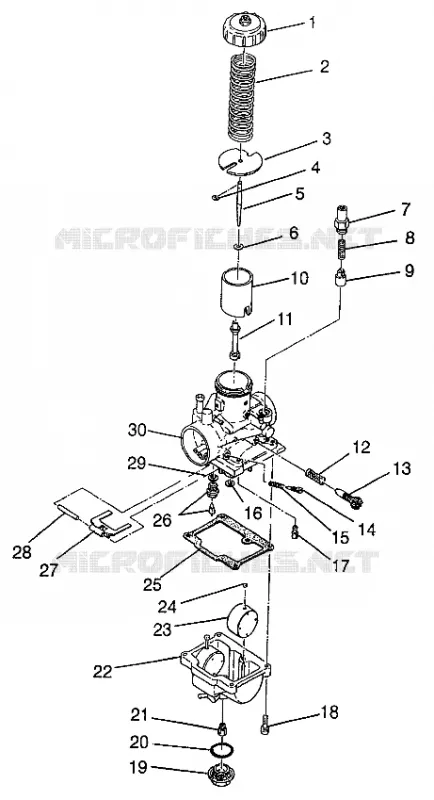

CARBURETOR (300) XPRESS 300 W97CA28C (4939603960E003)
5
Parts Diagram
Parts Catalog
STARTING MOTOR (300) XPRESS 300 W97CA28C (4939603960D011)
by
CARBURETOR (400L) XPRESS 400L W97CA38C (4939603960E004)
CARBURETOR (300) XPRESS 300 W97CA28C (4939603960E003)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
THROTTLE SPRING
3130354
9999999
Not Available
3
THROTTLE PLATE
3130002
9999999
Not Available
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE-JET (5DP7-2)
3130356
3130155
$52,49 Unit Price incl. VAT
6
WASHER
3130355
9999999
Not Available
7
CAP; PLUNGER
3130359
9999999
Not Available
8
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
9
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
10
THROTTLE VALVE
3130420
9999999
Not Available
11
NEEDLE JET
3130409
9999999
Not Available
12
SPRING
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130324
9999999
Not Available
14
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
15
SPRING AIR ADJUST
3130012
9999999
Not Available
16
WASHER
3130014
$3,14 Unit Price incl. VAT
17
JET PILOT #40(10)
3130067
9999999
Not Available
18
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
19
DRAIN PLUG
3130321
$41,99 Unit Price incl. VAT
20
O-RING
3130239
9999999
Not Available
21
HEX HEAD MAIN JET #155
3130114
9999999
Not Available
22
FLOAT CHAMBER ASSEMBLY
3130441
9999999
Not Available
23
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
24
CAP
3130237
$8,39 Unit Price incl. VAT
25
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
26
NEEDLE VALVE
3130360
$89,24 Unit Price incl. VAT
27
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
28
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
29
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
30
CARBURETOR
3130498
9999999
Not Available

Find the detailed CARBURETOR (300) XPRESS 300 W97CA28C (4939603960E003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
