1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN X2 500 EFI - A08TN50AT/AX/AZ
4
Parts Catalog
FRONT SUSPENSION STRUT
5
Parts Diagram
Parts Catalog
WHEELS, REAR
by
FUEL TANK ASM. (BUILT 8/20/07 AND BEFORE)
FRONT SUSPENSION STRUT
1
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
16
17
18
19
20
21
22
23
1
HUBSTRUT ASSEMBLY; RIGHT; 4 X 4
1822826
$572,24 Unit Price incl. VAT
1
HUBSTRUT ASSEMBLY; LEFT; 4 X 4
1822825
$572,24 Unit Price incl. VAT
2
WASHER
7555749
$2,09 Unit Price incl. VAT
3
SPACER RUBBER
5810291
$7,34 Unit Price incl. VAT
4
PIVOT BALL; TOP
5432872
$19,94 Unit Price incl. VAT
5
SPACER 1 2 20
5132062
$36,74 Unit Price incl. VAT
6
BALL BOTTOM PIVOT
5432871
$19,94 Unit Price incl. VAT
7
RETAINER SPRING
5243364
$36,74 Unit Price incl. VAT
8
COMPRESSION SPRING; MEDIUM GLOSS BLACK
7043247067
Not Available
9
MCU BUMPER; 17.8 MM
5412665
$12,59 Unit Price incl. VAT
10
BOLT
7515339
$9,44 Unit Price incl. VAT
11
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
12
NUT
7547104
$2,09 Unit Price incl. VAT
13
INTERNAL RETAINING RING
7710507
$4,19 Unit Price incl. VAT
14
WHEEL BEARING; 35 MM X 64 MM X 37 MM
3514634
$73,49 Unit Price incl. VAT
15
FRONT STRUT
7041762
$230,99 Unit Price incl. VAT
16
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
17
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
18
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
19
CABLE CLAMP
7080367
$4,19 Unit Price incl. VAT
20
WASHER
5211115
$7,34 Unit Price incl. VAT
21
GREASELESS STRUT BALL JOINT
7061158
7061306
$52,49 Unit Price incl. VAT
22
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
23
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT

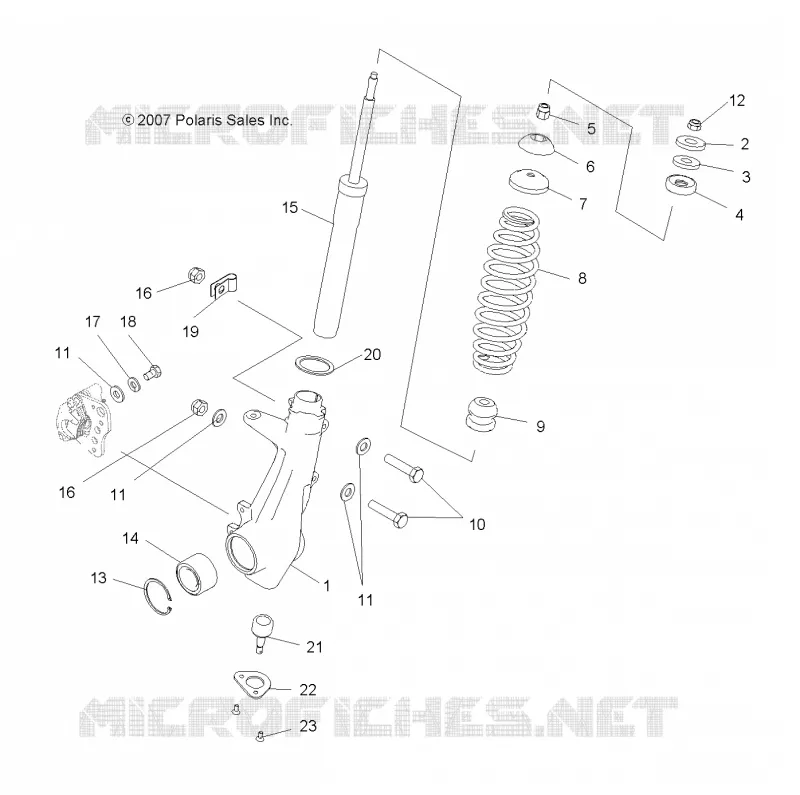

Find the detailed FRONT SUSPENSION STRUT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
