1
Engine displacement
300
2
Year
1997
3
Trim
XPRESS 300 - W97CA28C
4
Parts Catalog

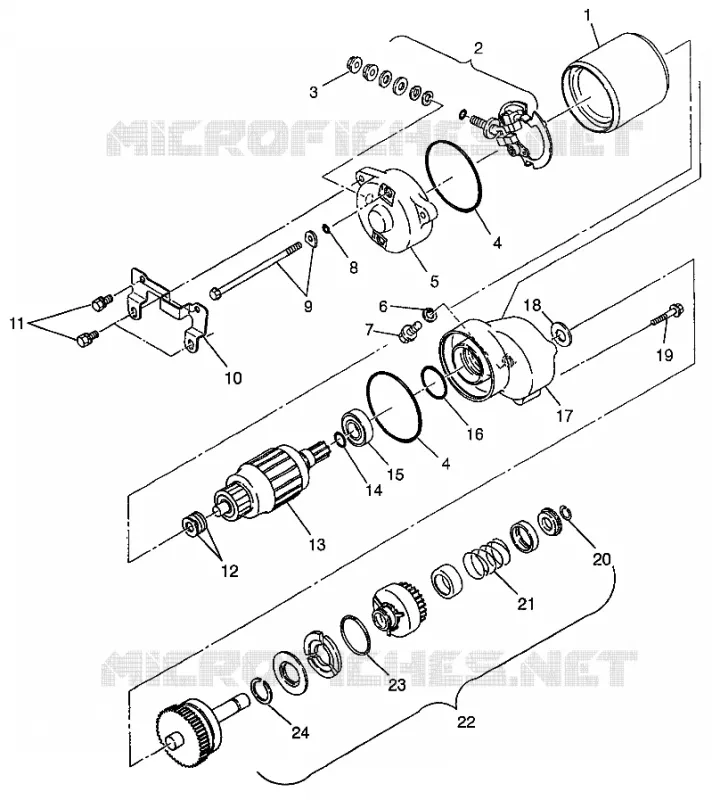

STARTING MOTOR (300) XPRESS 300 W97CA28C (4939603960D011)
5
Parts Diagram
Parts Catalog
MAGNETO (400L) XPRESS 400L W97CA38C (4939603960D010)
by
CARBURETOR (300) XPRESS 300 W97CA28C (4939603960E003)
STARTING MOTOR (300) XPRESS 300 W97CA28C (4939603960D011)
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1
ASM-STARTING MOTOR
3085392
9999999
Not Available
2
BRUSH COMPL.2-POLE
3084406
9999999
Not Available
3
FLANGE NUT
3083649
9999999
Not Available
4
RUBBER RING
3084405
9999999
Not Available
5
COVER REAR STARTER
3085032
9999999
Not Available
6
GASKET; ALUM;
3082758
7555998
$2,09 Unit Price incl. VAT
7
BOLT; FLANGE
3083568
7520710
$7,34 Unit Price incl. VAT
8
O-RING
3084408
9999999
Not Available
9
BOLT THROUGH
3084407
9999999
Not Available
10
BRACKET
3083650
9999999
Not Available
11
ASM. BOLT AND WASHER(10)
3081665
9999999
Not Available
12
WASHER SET
3083754
9999999
Not Available
13
ARMATURE ASSEMBLY
3084404
9999999
Not Available
14
O RING
3083934
9999999
Not Available
15
BALL BEARING
3083777
9999999
Not Available
16
O RING
3083741
9999999
Not Available
17
COVER FRONT
3085305
9999999
Not Available
18
WASHER
3083737
7556994
$6,29 Unit Price incl. VAT
19
BOLT AND WASHER ASSEMBLY
3082038
9999999
Not Available
20
CLIP
3084409
9999999
Not Available
21
SPRING RETURN
3084410
9999999
Not Available
22
ASM-GEAR SHAFT
3083647
9999999
Not Available
23
SPRING WEIGHT
3084411
9999999
Not Available
24
CLIP
3084412
9999999
Not Available

Find the detailed STARTING MOTOR (300) XPRESS 300 W97CA28C (4939603960D011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
