DRIVE TRAIN, CHAINCASE for POLARIS 550 INDY EVO 121 from 2022

DRIVE TRAIN, CHAINCASE

1

OIL SEAL

3610030

$36,74 Unit Price incl. VAT

2

ASM-CHAINCSE; INTERMD;191.26MM

1333807

$370,64 Unit Price incl. VAT

3

VENT TUBE; .155 X .75; DIA

5334764

$62,99 Unit Price incl. VAT

4

FUEL LINE; 3 MM X 7 MM

8450061600

Not Available

5

HYVO CHAIN

3221110

$262,49 Unit Price incl. VAT

6

CHAIN TIGHTENER ASSEMBLY

1332427

$135,44 Unit Price incl. VAT

7

WASHER-THREAD SEAL;3/8-16-UNC

7556340

$6,29 Unit Price incl. VAT

8

NUT

7547017

$10,49 Unit Price incl. VAT

9

SCR-HH-M10X1.5X70 8.8 ZOD BNC

7519587

$7,34 Unit Price incl. VAT

10

BALL BEARING #6205

3514309

3515910

$30,23 Unit Price incl. VAT

11

RETAINING RING

7718406

$11,54 Unit Price incl. VAT

12

SPKT 17T 3/4W 15 SPL HV PM

3221093

$68,24 Unit Price incl. VAT

13

CHAINCASE SLEEVE

5137587

$13,64 Unit Price incl. VAT

14

CHAINCASE COVER GASKET

5813295

$62,99 Unit Price incl. VAT

15

BALL BEARING

3514643

$40,94 Unit Price incl. VAT

16

CHAINCASE COVER ASSEMBLY; 191.26 MM

1332659

$220,49 Unit Price incl. VAT

17

SCR-M6X1.0X30 8.8 HXFL ZTB P30

7521293

$4,19 Unit Price incl. VAT

18

CHAMFERLESS SLEEVE

5140953

$47,24 Unit Price incl. VAT

19

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

20

HEX HEAD SCREW; 10 MM X 1.25 MM X 20 MM

7519004

$7,34 Unit Price incl. VAT

21

SPROCKET 44 TOOTH

3222239

$104,99 Unit Price incl. VAT

22

MAGNETIC PLUG

7052674

$36,74 Unit Price incl. VAT

23

DOWEL HOL M9X10(10)

7663007

$7,34 Unit Price incl. VAT

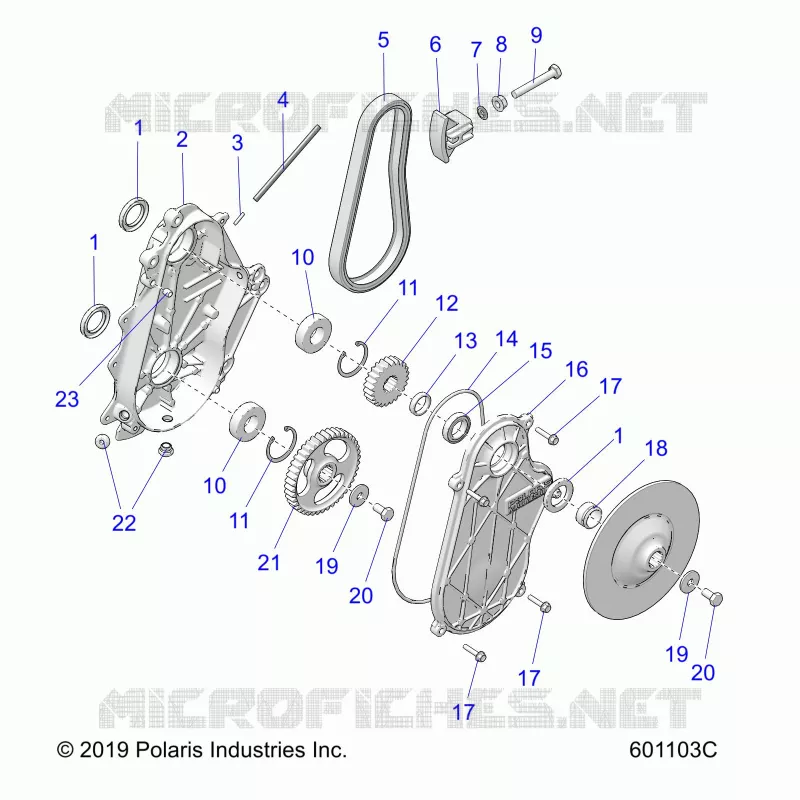

Find the detailed DRIVE TRAIN, CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
