DRIVE CLUTCH for POLARIS A04CH68AC SPORTSMAN 700 - A04CH68AC/AF/AH/AJ/AT/AV from 2004

DRIVE CLUTCH

-

EBS DRV CTCH ASM WIDE

1321971

$992,24 Unit Price incl. VAT

1

WASHER; 1.39 X 2.24 X .030

7556204

9999999

Not Available

2

ONE WAY DRIVE CLUTCH

1520231

9999999

Not Available

3

WASHER BRASS 1.39 X 1.99 X .

7556202

9999999

Not Available

4

SPACER-1.25X2.25 PM

5631119

9999999

Not Available

5

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

6

BUTTON CLUTCH (10)

5431936

5439254

$14,69 Unit Price incl. VAT

7

ROLLER PIN

5020422

$4,19 Unit Price incl. VAT

8

BEARING / BUSHING

3585712

$54,59 Unit Price incl. VAT

9

NUT JAM

7547130

9999999

Not Available

10

BEARING COVER

3576510

$16,79 Unit Price incl. VAT

11

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

12

BOLT

7512176

7512163

$7,34 Unit Price incl. VAT

13

CLUTCH SPRING

7041157

$89,24 Unit Price incl. VAT

14

ROLLER AND BUSHING ASSEMBLY

1321622

$62,99 Unit Price incl. VAT

15

WASHER(10)

5430945

5438247

$3,14 Unit Price incl. VAT

16

SHOULDER BOLT

7512266

$5,76 Unit Price incl. VAT

17

SHIFT WEIGHT; 20-56

5631215

$62,99 Unit Price incl. VAT

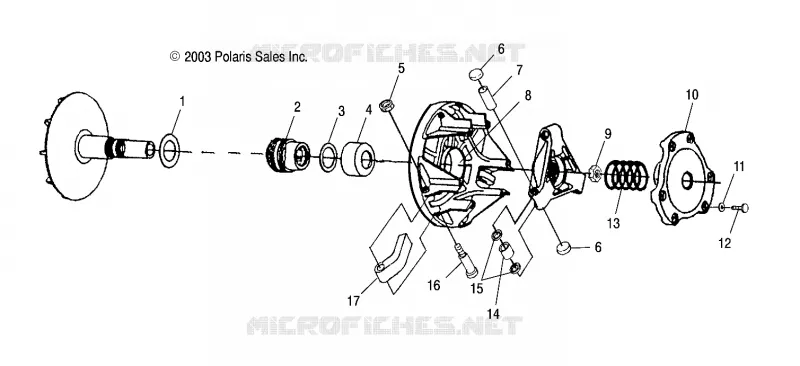

Find the detailed DRIVE CLUTCH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
