DRIVE CLUTCH ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303023A) for POLARIS STORM SKS - 0932570 from 1993

REAR TORQUE ARM STORM/0932770 AND STORM SKS/0932570 (4923032303022A)

DRIVEN CLUTCH ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303024A)

DRIVE CLUTCH ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303023A)

1

CLUTCH; BASIC#41

1321590

9999999

Not Available

2

BOLT

7512265

9999999

Not Available

3

SPRING LOCK WASHER

7552801

$3,14 Unit Price incl. VAT

4

BEARING COVER

3576510

$16,79 Unit Price incl. VAT

5

RETAINING RING COVER

7710417

$2,09 Unit Price incl. VAT

6

SPRING CLUTCH SIL/GOLD

7041286

9999999

Not Available

7

ROLLER PIN

5020422

$4,19 Unit Price incl. VAT

8

DRIVE CLUTCH KIT

2200387

$47,24 Unit Price incl. VAT

9

GUIDE BUTTON

5430445

$11,54 Unit Price incl. VAT

10

WASHER(10)

5430945

5438247

$3,14 Unit Price incl. VAT

11

ROLLER/BUSHING ASSEMBLY

1321457

$73,49 Unit Price incl. VAT

12

JAM NUT

5020425

$41,99 Unit Price incl. VAT

13

SPACER .020

5210752

$3,14 Unit Price incl. VAT

13

SPACER .050

5210754

$6,29 Unit Price incl. VAT

13

SPACER .032

5210753

$4,19 Unit Price incl. VAT

14

SNOWMOBILE CLUTCH WEIGHT 64 G(3)

1321585

$73,49 Unit Price incl. VAT

15

HARDENED WEIGHT PIN

7515105

$26,24 Unit Price incl. VAT

16

FLEXLOC NUT(10)

7541906

$6,29 Unit Price incl. VAT

17

BEARING SLEEVE

3576502

$40,94 Unit Price incl. VAT

18

INSERT MOVEABLE

5010188

$13,64 Unit Price incl. VAT

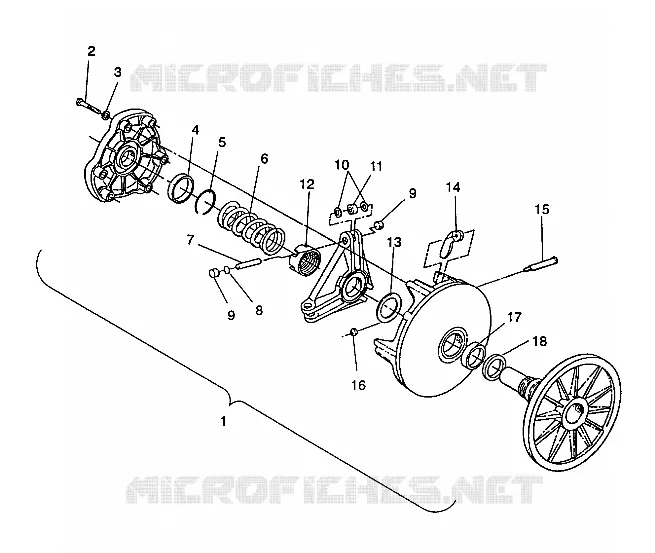

Find the detailed DRIVE CLUTCH ASSEMBLY STORM/0932770 AND STORM SKS/0932570 (4923032303023A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
