DRIVE TRAIN, MAIN GEARCASE INTERNALS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
1
2
3
4
5
6
6
7
7
8
9
10
10
11
12
12
13
14
14
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
26
27
27
27
28
29
30
30
31
32
33
34
35
35
36
36
37
37
38
38
39
39
39
40
41
42
43
43
43
44
44
45
45
46
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
89
90
91
92
93
94
95
96
97
98
99
99
100
101
102
103
104
105
1
EXPANSION PLUG; 1 1/4
3234249
$25,19 Unit Price incl. VAT
2
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
3
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
4
SCREW; TORX PAN HD M6 X 1 X 16
3234309
$13,64 Unit Price incl. VAT
5
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
6
SCREW
3235206
$13,64 Unit Price incl. VAT
7
SCREW-CAP HH;M8 X 1.25 X 20
3235096
3236169
$17,84 Unit Price incl. VAT
8
SCREW
3235207
$19,94 Unit Price incl. VAT
9
SCREW 6 MM X 1.0 MM 40 MM
3235208
$20,99 Unit Price incl. VAT
10
SOCKET HEAD SCREW; 6 MM X 1 MM X 18 MM
3235332
$7,34 Unit Price incl. VAT
11
HEXFLANGE NUT; NYLON; 8 MM X 1.25 MM
3235210
$14,69 Unit Price incl. VAT
12
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
13
WASHER-FENDER 5/16-1.25
3234952
$13,64 Unit Price incl. VAT
14
WASHER
3235211
$19,94 Unit Price incl. VAT
15
WASHER
3235212
$25,19 Unit Price incl. VAT
16
WASHER
3235213
$31,49 Unit Price incl. VAT
17
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
18
SPRING-SLOTTED PIN;6MM
7043746
$15,74 Unit Price incl. VAT
19
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
20
SNAP RING
3233106
$10,49 Unit Price incl. VAT
21
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
22
RETAINING RING
3233364
$12,59 Unit Price incl. VAT
23
EXTERNAL RETAINING RING
3234318
$5,76 Unit Price incl. VAT
24
RING RETAININGBASICINTRNL2.047
3234269
$17,84 Unit Price incl. VAT
25
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
26
RETAINING RING
3234205
$20,99 Unit Price incl. VAT
27
RETAINING RING
3235214
$17,84 Unit Price incl. VAT
28
RETAINING RING
3235216
$19,94 Unit Price incl. VAT
29
HELICAL INPUT SHAFT
3235395
$346,49 Unit Price incl. VAT
30
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
31
THRUST WASHER; .446 X .88 X .025
3234642
$19,94 Unit Price incl. VAT
32
SHIM 1.180 X .995(9)
3234272
$68,24 Unit Price incl. VAT
33
SHIM; 2.040 OD X 1.630 ID
3234273
$26,24 Unit Price incl. VAT
34
SPACER; 19.4 X 34.0 X 2
3235883
$41,99 Unit Price incl. VAT
35
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
36
BEARING
3233019
$54,59 Unit Price incl. VAT
37
BEARING
3233020
$80,84 Unit Price incl. VAT
38
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
39
BALL BEARNING
3234065
$80,84 Unit Price incl. VAT
40
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
41
BALL BEARING
3235218
$101,84 Unit Price incl. VAT
42
PLAIN BEARING; 10 X 12 X 25
3234239
$27,29 Unit Price incl. VAT
43
PLAIN BEARING; 40 X 44 X 15
3234241
$27,29 Unit Price incl. VAT
44
BALL BEARING
3234652
$27,29 Unit Price incl. VAT
45
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
46
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
47
TORSION RETURN SPRING
3234276
$16,79 Unit Price incl. VAT
48
SPRING COMPRSSN.54ODX.44IDX.05
3234277
$26,24 Unit Price incl. VAT
49
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
50
SPRING TORSION
3235885
$36,74 Unit Price incl. VAT
51
SPRING WASHER
3235327
$17,84 Unit Price incl. VAT
52
SNORKLE TUBE
3234278
$188,99 Unit Price incl. VAT
53
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
54
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
55
FORK SHIFT
3235455
$173,24 Unit Price incl. VAT
56
PARK PLATE
3235456
$73,49 Unit Price incl. VAT
57
DETENT STAR
3235982
$68,24 Unit Price incl. VAT
58
IDLER SHAFT; 29 TOOTH
3235223
$204,74 Unit Price incl. VAT
59
OUTPUT SHAFT; FRONT
3235225
$225,74 Unit Price incl. VAT
60
27T REVERSE SHAFT
3235380
$456,74 Unit Price incl. VAT
61
DISC BRAKE
3235372
$120,74 Unit Price incl. VAT
62
BELLCRANK
3235474
$62,99 Unit Price incl. VAT
63
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
64
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
65
ENGAGEMENT DOG
3234928
$136,49 Unit Price incl. VAT
66
LOW GEAR; 67 TOOTH
3235232
$230,99 Unit Price incl. VAT
67
6 FACE ENGAGEMENT DOG
3235233
$241,49 Unit Price incl. VAT
68
STAGE 3 GEAR; 46 TOOTH
3235236
$204,74 Unit Price incl. VAT
69
OUTPUT GEAR; FRONT; 13 TOOTH
3235237
$246,74 Unit Price incl. VAT
70
SHIFT SHAFT
3235238
$68,24 Unit Price incl. VAT
71
STAGE 3 GEAR; 46 TOOTH
3235381
$246,74 Unit Price incl. VAT
72
GEAR; 49 TOOTH
3235396
$246,74 Unit Price incl. VAT
73
PARK/LOW SHIFT DOG
3235457
$272,99 Unit Price incl. VAT
74
SHIFT RAIL; SHAFT
3235542
$52,49 Unit Price incl. VAT
75
48T 6 FACE SPROCKET
3235755
$152,24 Unit Price incl. VAT
76
PARK CAM
3235983
$283,49 Unit Price incl. VAT
77
SHIFT DRUM; MACHINED
3235984
$519,74 Unit Price incl. VAT
78
WELDMENT BRACKET; REAR
3235399
$89,24 Unit Price incl. VAT
79
GEAR SUBASSEMBLY
3234469
$136,49 Unit Price incl. VAT
80
SECTOR GEARS COVER
3235713
$209,99 Unit Price incl. VAT
81
LOCKING DIFFERENTIAL
3235373
$771,74 Unit Price incl. VAT
82
COVER SUBASSEMBLY
3235376
$262,49 Unit Price incl. VAT
83
GEAR SUBASSEMBLY; 39 TOOTH; SIDE
3235374
$351,74 Unit Price incl. VAT
84
GEAR SUBASSEMBLY; 39 TOOTH; SIDE
3235375
$351,74 Unit Price incl. VAT
85
GEAR SUBASSEMBLY; 53 TOOTH
3235378
9999999
Not Available
86
PINION SUBASSEMBLY
3235371
$782,24 Unit Price incl. VAT
87
ROLLER PAWL
3235452
$68,24 Unit Price incl. VAT
88
CASE SUBASSEMBLY; LEFT
3235831
$818,99 Unit Price incl. VAT
89
SHIFT FORK SUBASSEMBLY
3235920
$136,49 Unit Price incl. VAT
90
SUBASSY; RIGHT CASE
3236008
9999999
Not Available
91
FORK RETAINER
3234934
$19,94 Unit Price incl. VAT
92
CENTER DRIVE BEARING COVER
3235241
$89,24 Unit Price incl. VAT
93
BRKT-MOUNT(430592)
3235350
$16,79 Unit Price incl. VAT
94
BRACKET MOUNT; REAR
3235398
$125,99 Unit Price incl. VAT
95
SILENT CHAIN
3234737
$314,99 Unit Price incl. VAT
96
SOLENOID
3235478
$545,99 Unit Price incl. VAT
97
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
98
RESISTIVE 2 PIN ROTARY SWITCH
7662299
$209,99 Unit Price incl. VAT
99
SHAFT SEAL; OUTPUT
3235830
$104,99 Unit Price incl. VAT
100
SEAL
3234851
$68,24 Unit Price incl. VAT
101
VITON TRIPLE LIP SEAL
3234892
$68,24 Unit Price incl. VAT
102
O-RING
3234302
$13,64 Unit Price incl. VAT
103
O-RING
3233836
$12,59 Unit Price incl. VAT
104
O-RING
3233828
$12,59 Unit Price incl. VAT
105
TRIPLE LIP SEAL; 25 X 80 X 10
3234113
$68,24 Unit Price incl. VAT

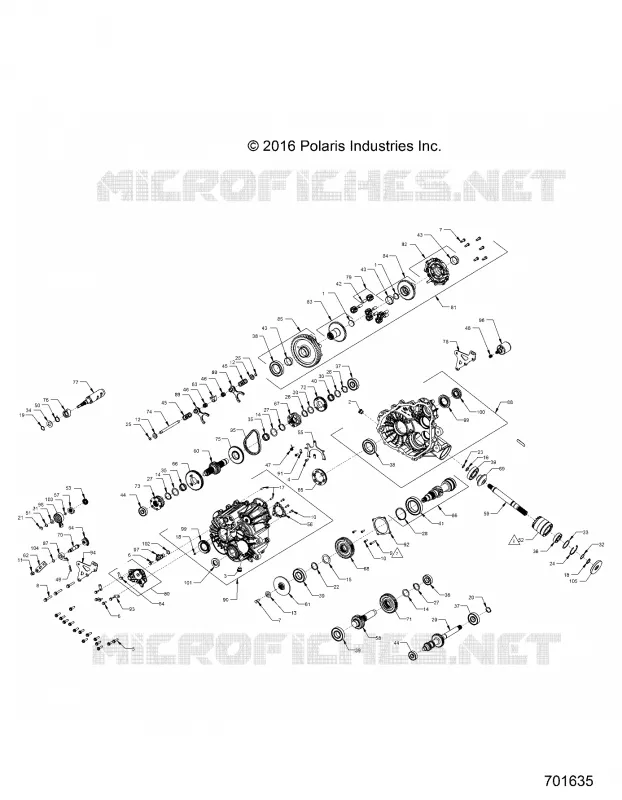

Find the detailed DRIVE TRAIN, MAIN GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
