37
1
NUT
7547108
$9,44 Unit Price incl. VAT
2
WASHER
7555801
$7,34 Unit Price incl. VAT
3
CABLE GND-ENGINE
4010132
9999999
Not Available
4
BOLT
7512232
$2,09 Unit Price incl. VAT
5
MOUNT RUBBER TOP
3110044
3024012
$83,99 Unit Price incl. VAT
6
BRKT-ENGINE MOUNTTOPPLTD
5242674
9999999
Not Available
7
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
8
BOLT
7512315
$9,44 Unit Price incl. VAT
9
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
10
FUEL LINE; 600 CM
8450040600
Not Available
11
FUEL LINE; 1/4 ID
84500031525
Not Available
12
FITTING TEE
7052075
$17,84 Unit Price incl. VAT
13
SCREW AND WASHER
3084205
9999999
Not Available
14
BRKT-CARB MNT(PLATED)
5246553
9999999
Not Available
15
WELL NUT
7541923
$10,49 Unit Price incl. VAT
16
BOLT
7512247
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
19
VALVE CHECK
7051011
9999999
Not Available
20
LINE FUEL-1/4 DP SAE J30R9
8450103
8450117-250
$99,74 Unit Price incl. VAT
21
REFLECT SLEEVE SHEATH; 16 MM X 65 CM
845010565
Not Available
22
MOUNT ENGINE REAR BLK
1012883067
Not Available
23
NUT-3/8-16 FLG LOCK-Y
7547089
9999999
Not Available
24
MOUNT RUBBER FRONT
3110046
9999999
Not Available
25
SCREW
7517289
9999999
Not Available
26
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
27
CLUTCH INTAKE BOOT
5412487
9999999
Not Available
28
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
29
BUSHING
5430261
$13,64 Unit Price incl. VAT
30
WASHER
5210748
$7,34 Unit Price incl. VAT
31
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
32
BOLT
7512566
9999999
Not Available
33
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
34
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
35
MOUNT FR.ENGINE BLK.
1040688067
Not Available
36
SCREW
7515398
9999999
Not Available
37
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
38
MOUNT MOTOR
3110067
9999999
Not Available
39
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
40
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
41
SCREW
7515417
9999999
Not Available
42
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
43
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
44
MANIFOLD 1.625 W/PN BLK
1261171489
Not Available
45
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
46
Engine Short Block [If built before 8/09/04] NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authoriza
3089538
Not Available
46
SHORT BLOCK EH500PLE104
3089513
9990000
Not Available

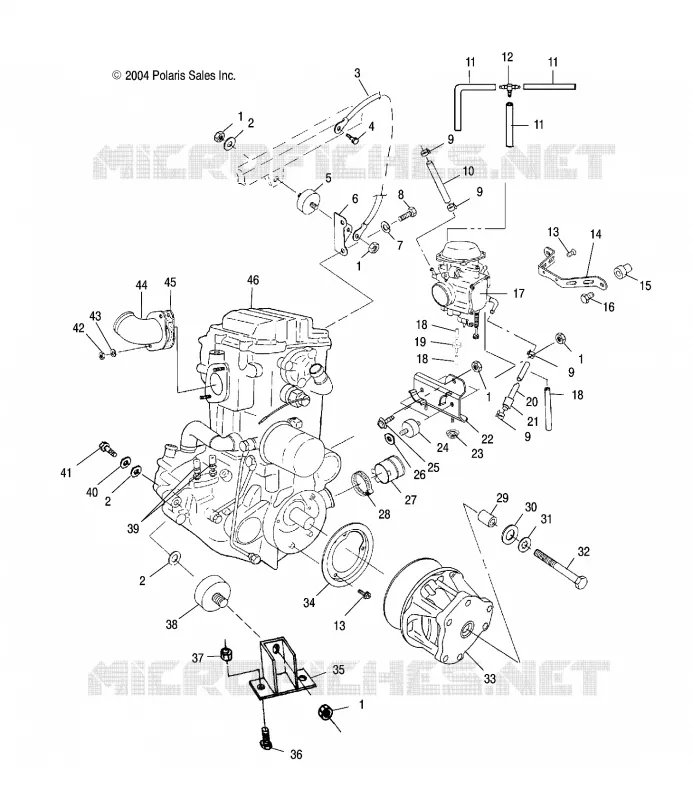

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
