1
Engine displacement
700
2
Year
2005
3
Trim
700 / 800 XC SP M-10 F/O
4
Parts Catalog
SHOCK (REAR TRACK)(M-10)
5
Parts Diagram
Parts Catalog
SHOCK (REAR TRACK)(M-10 ACE)
by
DRIVE CLUTCH (MANUAL START MODELS)
SHOCK (REAR TRACK)(M-10)
26
27
28
29
30
31
-
-
26
27
28
29
30
31
-
ASM-RESERVIOR NON ADJUST 1.459
1500449
9990000
Not Available
-
SHOCK-REAR TRACKREZY-M-10
7042216
9990000
Not Available
1
SEAL-O-RING
1500450
9999999
Not Available
2
PISTON-FLOATING
1500187
9999999
Not Available
3
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
4
O-RING OUTER
1500023
9999999
Not Available
5
RESERVOIR ENDCAP ASM.
1500160
9999999
Not Available
6
RESERVOIR
1500451
Not Available
7
O-RING ENDCAP
1500003
9999999
Not Available
8
ENDCAP ASMRESERVOIR
1500163
9999999
Not Available
9
HOSE-14.00 TLG
1500445
9999999
Not Available
10
BEARING-.5 IDX.5 TLG
1500488
9999999
Not Available
11
O-RING INNER
1500021
9999999
Not Available
12
URETHANE U-CUP
1500266
$52,49 Unit Price incl. VAT
13
O-RING 14MM IDX1 MM
1500484
9999999
Not Available
14
SCRAPER-FIST DELRIN
1500485
9999999
Not Available
15
RING-SNAP INTERNAL
1500486
9999999
Not Available
16
O-RING .103X.73ID
1500483
9999999
Not Available
17
O-RING; .103 X 1.299
1500020
9999999
Not Available
18
Asm. Bearing (Incl. 13-20)
1500545
Not Available
19
BEARING-RBC 003-10-000
1500444
1501035
$57,74 Unit Price incl. VAT
20
ASM-BODY CAP
1500448
9999999
Not Available
21
O-RING .103W-1.549ID
1500108
$15,74 Unit Price incl. VAT
22
BODY-6.825-TLG .58 THD L
1500446
9999999
Not Available
23
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
24
PLATE BACKUP
1500015
9999999
Not Available
25
DAMPER; PISTON RING
1500002
9999999
Not Available
26
PLATE TOP OUT
1500017
9999999
Not Available
27
SHAFT-.498 X 7.525 TLG
1500447
9999999
Not Available
28
EYELET BASE
1500164
9999999
Not Available
29
SLEEVE .56 X .81 X 1.2
1500310
$40,94 Unit Price incl. VAT
30
BUSHING .35ILG .595TLG
1500309
9999999
Not Available
31
BUMPER JOUNCE
5410855
9999999
Not Available

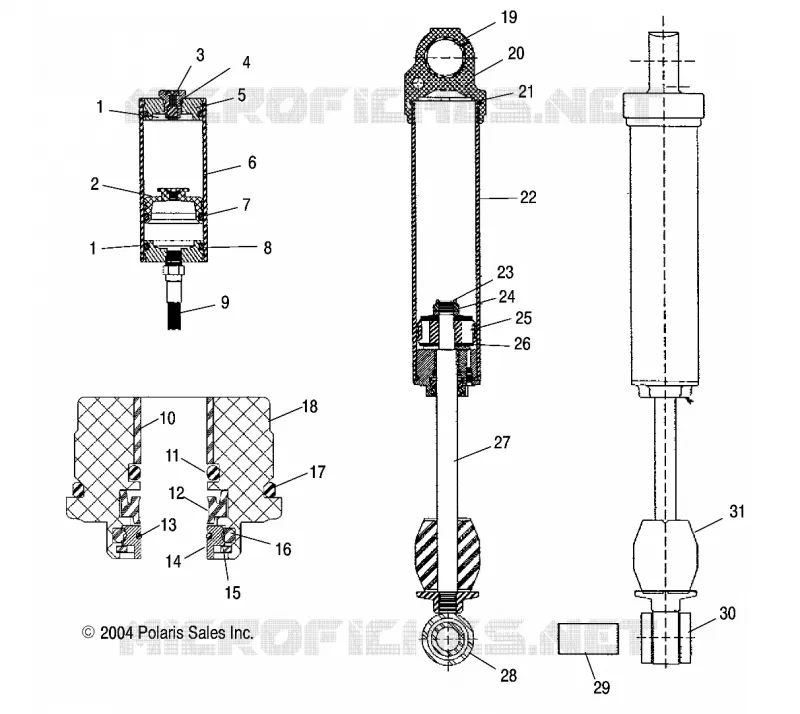

Find the detailed SHOCK (REAR TRACK)(M-10) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
