1
Engine displacement
autre
2
Year
1996
3
Trim
EURO XLT SKS - E960556
4
Parts Catalog

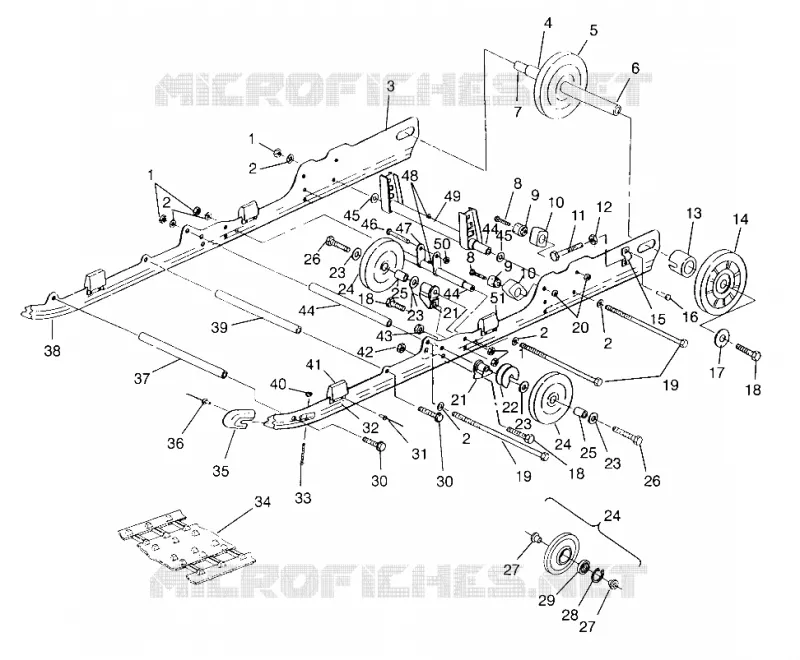

SUSPENSION XLT RMK 0960956, XLT SKS 0960556 AND EURO XLT SKS E960556 (4931813181B012)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B011)
by
FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181B014)
SUSPENSION XLT RMK 0960956, XLT SKS 0960556 AND EURO XLT SKS E960556 (4931813181B012)
1
1
1
2
2
2
2
2
3
3
3
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
21
22
23
23
23
23
24
24
24
25
25
26
26
27
27
28
29
30
30
31
32
33
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
35
36
37
38
39
40
41
42
43
44
44
44
45
45
46
47
48
1
50
1
1
1
2
2
2
2
2
3
3
3
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
21
22
23
23
23
23
24
24
24
25
25
26
26
27
27
28
29
30
30
31
32
33
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
35
36
37
38
39
40
41
42
43
44
44
44
45
45
46
47
48
1
50
1
1
1
2
2
2
2
2
3
3
3
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
16
17
18
18
18
19
19
20
21
21
22
23
23
23
23
24
24
24
25
25
26
26
27
27
28
29
30
30
31
32
33
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
34
35
36
37
38
39
40
41
42
43
44
44
44
45
45
46
47
48
1
50
1
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
2
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
3
RAIL ASMLH133"
1540946
9999999
Not Available
3
RAIL ASMRH133
1540947
9999999
Not Available
4
SPACER INNER IDLER
5010169
9999999
Not Available
5
WHEEL; IDLER
1594021
9999999
Not Available
6
SPACER IDLER R.INNER
5333086
9999999
Not Available
7
SHAFT IDLER
5020722
9999999
Not Available
8
BOLT(10)
7515537
$15,74 Unit Price incl. VAT
9
BUMPER MOUNT
5131113
$52,49 Unit Price incl. VAT
10
PIVOT ARM BUMPER
5410925
$26,24 Unit Price incl. VAT
11
ADJUSTER BOLT
7515455
9999999
Not Available
12
NUT
7542440
7542404
$3,14 Unit Price incl. VAT
13
SPACER-IDLER-OUTER
5332641
9999999
Not Available
14
WHEEL IDLER LAV.
1594049
9999999
Not Available
15
BLOCK-IDLER BOLT ADJ.
5130530
$62,99 Unit Price incl. VAT
16
RIVET
7621501
$4,19 Unit Price incl. VAT
17
WASHER
7571629
7556130
$11,54 Unit Price incl. VAT
18
BOLT(10)
7515526
7517731
$2,09 Unit Price incl. VAT
19
SCREW
7515549
9999999
Not Available
20
NUT LOCK
7542403
9999999
Not Available
21
SPACER
5630399
$20,99 Unit Price incl. VAT
22
SPRING ROLLER
5431366
$19,94 Unit Price incl. VAT
23
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
24
IDLER WHEEL; 5.35 IN
1543018
$115,49 Unit Price incl. VAT
25
WHEEL SPACER
5333116
$13,64 Unit Price incl. VAT
26
BOLT
7512538
9999999
Not Available
27
WHEEL INSERT
5431531
$19,94 Unit Price incl. VAT
28
RETAINING RING
7718407
$9,44 Unit Price incl. VAT
29
BEARING
3514303
$20,99 Unit Price incl. VAT
30
BOLT
7515542
9999999
Not Available
31
RIVET
7621476
$2,09 Unit Price incl. VAT
32
REINF.; BUMPER
5222629
9999999
Not Available
33
BOLT KIT
7515175
$7,34 Unit Price incl. VAT
34
CLIP; TRACK(CAMOPLAST);(10)
5222839
5251273
$18,89 Unit Price incl. VAT
34
TRACK Substituted by 2871368 (PT)
5410892
Not Available
34
TRACK-133 X 1 MOD LIGHTNING
5411060
9999999
Not Available
34
CLIP GUIDE(10)
5222840
5251274
$13,64 Unit Price incl. VAT
35
COVER RAIL TIP
5431421
9999999
Not Available
36
RIVET(10)
7621435
$2,09 Unit Price incl. VAT
37
PIVOT ARM SHAFT
5020723
$47,24 Unit Price incl. VAT
38
SLIDER; BLACK
5521320
9999999
Not Available
39
PIVOT ARM SHAFT
5020724
9999999
Not Available
40
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
41
BUMPER SUSPENSION
5811097
9999999
Not Available
42
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
43
NYLOK NUT
7542525
$9,44 Unit Price incl. VAT
44
SHAFT
5333404
$47,24 Unit Price incl. VAT
45
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
46
BOLT
7515472
$4,19 Unit Price incl. VAT
47
ARM SHOCK PIVOT
1541001067
Not Available
48
ARMR.PIVOT
1540981067
Not Available
49
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
50
BUMPER; RAIL
5810554
9999999
Not Available

Find the detailed SUSPENSION XLT RMK 0960956, XLT SKS 0960556 AND EURO XLT SKS E960556 (4931813181B012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for EURO XLT SKS - E960556

NOSEPAN XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181A009)

NOSEPAN XLT RMK 0960956, XLT SKS 0960556 and EUROPEAN XLT SKS E960556 (4931813181A009)

for EURO XLT SKS - E960556 from 1996

HOOD XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181A010)

HOOD XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181A010)

for EURO XLT SKS - E960556 from 1996

CONSOLE XLT RMK 0960956, XLT SKS 0960556, AND EUROPEAN XLT SKS E960556 (4931813181A012)

CONSOLE XLT RMK 0960956, XLT SKS 0960556, AND EUROPEAN XLT SKS E960556 (4931813181A012)

for EURO XLT SKS - E960556 from 1996

DECALS XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181A013)

DECALS XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181A013)

for EURO XLT SKS - E960556 from 1996

STEERING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B006)

STEERING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B006)

for EURO XLT SKS - E960556 from 1996

COOLING SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181B007)

COOLING SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181B007)

for EURO XLT SKS - E960556 from 1996

BRAKE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B008)

BRAKE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B008)

for EURO XLT SKS - E960556 from 1996

MASTER CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181B009)

MASTER CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181B009)

for EURO XLT SKS - E960556 from 1996

REAR TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E9605 (4931813181C002)

REAR TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E9605 (4931813181C002)

for EURO XLT SKS - E960556 from 1996

DRIVE CLUTCH XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C003)

DRIVE CLUTCH XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C003)

for EURO XLT SKS - E960556 from 1996

DRIVEN CLUTCH XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C004)

DRIVEN CLUTCH XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C004)

for EURO XLT SKS - E960556 from 1996

ENGINE MOUNTING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C005)

ENGINE MOUNTING XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C005)

for EURO XLT SKS - E960556 from 1996

WATER PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C010)

WATER PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C010)

for EURO XLT SKS - E960556 from 1996

PISTON CRANKSHAFT XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS (4931813181C011)

PISTON CRANKSHAFT XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS (4931813181C011)

for EURO XLT SKS - E960556 from 1996

CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C012)

CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C012)

for EURO XLT SKS - E960556 from 1996

FUEL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C013)

FUEL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C013)

for EURO XLT SKS - E960556 from 1996

CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D004)

CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D004)

for EURO XLT SKS - E960556 from 1996

ACCS SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D005)

ACCS SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D005)

for EURO XLT SKS - E960556 from 1996

TUNNEL XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181A005)

TUNNEL XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181A005)

for EURO XLT SKS - E960556 from 1996

SEAT GAS TANK XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96 (4931813181A007)

SEAT GAS TANK XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96 (4931813181A007)

for EURO XLT SKS - E960556 from 1996

NOSEPAN XLT RMK 0960956, XLT SKS 0960556, and EUROPEAN XLT SKS E960556 (4931813181A008)

NOSEPAN XLT RMK 0960956, XLT SKS 0960556, and EUROPEAN XLT SKS E960556 (4931813181A008)

for EURO XLT SKS - E960556 from 1996

HOOD

HOOD

for EURO XLT SKS - E960556 from 1996

FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001)

FRONT SUSPENSION AND SKI XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT (4931813181B001)

for EURO XLT SKS - E960556 from 1996

FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)

FRONT SUSPENSION AND SKI XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B003)

for EURO XLT SKS - E960556 from 1996

STEERING

STEERING

for EURO XLT SKS - E960556 from 1996

CHAINCASE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B010)

CHAINCASE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B010)

for EURO XLT SKS - E960556 from 1996

DRIVE TRAIN XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B011)

DRIVE TRAIN XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181B011)

for EURO XLT SKS - E960556 from 1996

SUSPENSION XLT RMK 0960956, XLT SKS 0960556 AND EURO XLT SKS E960556 (4931813181B012)

SUSPENSION XLT RMK 0960956, XLT SKS 0960556 AND EURO XLT SKS E960556 (4931813181B012)

for EURO XLT SKS - E960556 from 1996

FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181B014)

FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181B014)

for EURO XLT SKS - E960556 from 1996

FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C001)

FRONT TORQUE ARM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C001)

for EURO XLT SKS - E960556 from 1996

EXHAUST SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181C006)

EXHAUST SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181C006)

for EURO XLT SKS - E960556 from 1996

OIL TANK/AIR BOX XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C007)

OIL TANK/AIR BOX XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960 (4931813181C007)

for EURO XLT SKS - E960556 from 1996

CRANKCASE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C008)

CRANKCASE XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C008)

for EURO XLT SKS - E960556 from 1996

CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C009)

CYLINDER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C009)

for EURO XLT SKS - E960556 from 1996

OIL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C014)

OIL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C014)

for EURO XLT SKS - E960556 from 1996

MAGNETO XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D001)

MAGNETO XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D001)

for EURO XLT SKS - E960556 from 1996

RECOIL STARTER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181D002)

RECOIL STARTER XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E96055 (4931813181D002)

for EURO XLT SKS - E960556 from 1996

TOOL KIT XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D003)

TOOL KIT XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D003)

for EURO XLT SKS - E960556 from 1996

POLARIS EURO XLT SKS - E960556 1996

EURO XLT SKS - E960556

EURO XLT SKS - E960556

Model : SKS

Engine capacity : autre

Year : 1996

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
