HOOD 650 RXL (4919531953003A)
1
HOOD CLASSIC&RXL Substituted by 2631574-145
5431194145
Not Available
2
HSG INST.BOTT.BLK.
5430922070
Not Available
3
HSG INST TOP BLK
5430923070
Not Available
4
BEZEL INST.
5430924
Not Available
5
INDICATOR-TEMP-WARN.
4040011
9999999
Not Available
6
INDICATOR ACC WARN.
4040014
9999999
Not Available
7
DECAL(27.0##)PINSTRIPE [No Longer Available]
7072753
Not Available
8
ADAPTER DRIVE
3280095
3280540
$188,99 Unit Price incl. VAT
9
INDICATOR LOW-OIL WARN.
4040012
9999999
Not Available
10
SCREW SCKT.HD.CAP
7512008
9999999
Not Available
11
SCREW SEMS
7512283
$7,34 Unit Price incl. VAT
12
NUT SPEED
7670056
9999999
Not Available
13
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
14
PANEL INTAKE BLUE
5431195145
Not Available
15
SCREW
7511840
9999999
Not Available
16
SCREW
7512009
9999999
Not Available
17
HOOD LATCH CUP
5430733
9999999
Not Available
18
RIVET
7621334
$2,09 Unit Price incl. VAT
19
HEADLIGHT ASM.
4032040
9999999
Not Available
20
BULB; H/L
4030028
9999999
Not Available
20
HEADLIGHT BULB
2870448
$36,74 Unit Price incl. VAT
21
SCREW; ADJ.(10)
4032003
9999999
Not Available
22
SPRING-ADJ
4032002
9999999
Not Available
23
HINGE ASM HD. Substituted by 2635005-067
2635005
Not Available
24
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
25
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
26
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
27
SCREEN; HOOD
5211117
5211117-067
Not Available
28
SCREW
7511858
$7,34 Unit Price incl. VAT
29
CLIP WIRING
4020035
9999999
Not Available
30
SPEEDOMETER
3280092
9999999
Not Available
31
TACHOMETER;3 CYL.
3280096
3280192
Not Available
32
BRACKET (SPORT)
3280098
Not Available
33
NUT
3280063
Not Available
34
WINDSHIELD; SMOKE
5431144
9999999
Not Available
34
WINDSHIELD LO(90-96)STD
2870785
Not Available
35
LABEL U.S.A.
7073024
9999999
Not Available
36
DECAL OPER.CAUT SILVER [No Longer Available]
7072875
Not Available
37
DECAL OPER.CAUT(FR)SILVER [No Longer Available]
7072877
Not Available
38
DECAL DASH WARNING [No Longer Available]
7072870
Not Available
39
DECAL LH HOOD [No Longer Available]
7073063
Not Available
39
DECAL RH HOOD [No Longer Available]
7073064
Not Available
40
DECAL SPEC.(RXL#91) [No Longer Available]
7073118
Not Available
41
TAPE FOIL FOAM
5810405
9999999
Not Available
42
EMBLEM #650 EFI#(91) [No Longer Available]
5431244
Not Available
43
KNOB TRIP ODOMETER
3280103
9999999
Not Available
44
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
45
SPEEDO CABLE
3280094
$115,49 Unit Price incl. VAT
46
PLATE RE-INF. (HD.)
5222105
9999999
Not Available
47
SCREW
7511861
9999999
Not Available
48
FOAM HOOD RH
5810375
Not Available
48
FOAM HOOD LH
5810374
Not Available
49
FOAM HOOD CTR
5810376
9999999
Not Available
50
FOAM HOOD
5810389
9999999
Not Available
51
TAPE FOIL
5810395
Not Available
53
HOOD RETAINER CABLE
7080368
9999999
Not Available
54
HARNESS HEADLIGHT
2460308
Not Available
55
O RING(HEAVY)
5410387
5410970
$2,09 Unit Price incl. VAT
56
DECAL HOOD-H/L POD [No Longer Available]
7072676
Not Available
57
KIT DECAL (RXL#91) [No Longer Available] (Incl. 35-37 39 40)
2200373
Not Available
58
TAPE FOIL FOAM
5810407
Not Available
59
TAPE FOIL RH
5810394
Not Available
59
TAPE FOIL LH
5810393
Not Available
60
TAPE FOIL
5810396
Not Available
61
TAPE FOIL
5810397
Not Available
62
TAPE FOIL LOUVER PIPE SIDE
5810404
Not Available
63
TAPE;FOIL;FOAM
5810406
9999999
Not Available
64
RIVET (PLASTIC LOK)(50)
7621505
7621509
$2,09 Unit Price incl. VAT
65
PAD W/S RH BLACK
5810438
9999999
Not Available
65
PADW/SLHBLACK
5810437
9999999
Not Available
66
INDICATOR HI-BEAM WARN.
4040013
9999999
Not Available
67
DECAL RXL [No Longer Available]
7072910
Not Available
68
SEAL INTAKE Substituted by 5810597
5810503
Not Available
68
WINDSHIELD; SMOKE
5431144
9999999
Not Available

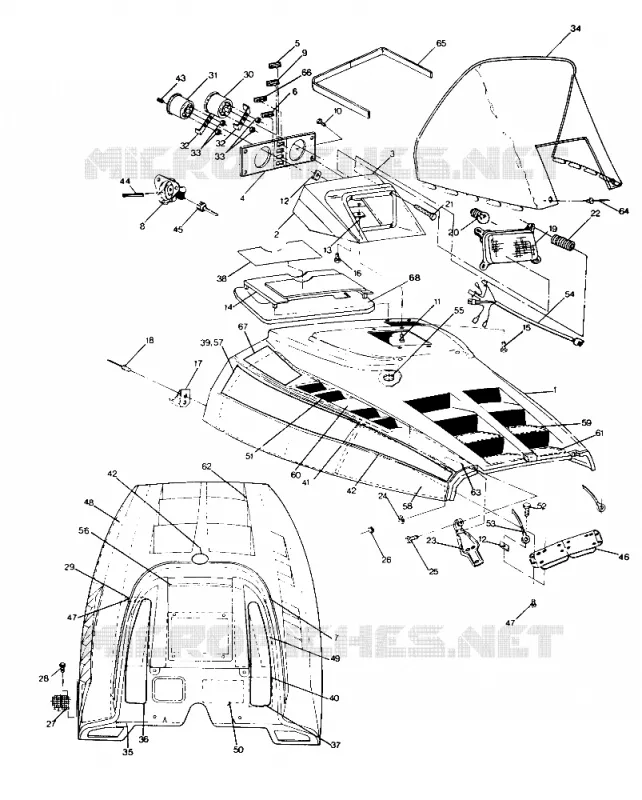

Find the detailed HOOD 650 RXL (4919531953003A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
