ENGINE MOUNTING for POLARIS MAGNUM 330 2X4 - A05CB32AA from 2005

ENGINE MOUNTING

1

FUEL LINE; 1/4 ID

84500031525

Not Available

2

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

3

ENGINE-ES32PFE103

1202789

9990000

Not Available

4

NUT

7547108

$9,44 Unit Price incl. VAT

5

BRACKET MOTOR MOUNT PLTD

5247341

9999999

Not Available

6

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

7

BOLT

7512232

$2,09 Unit Price incl. VAT

8

CABLE GND-ENGINE

4010132

9999999

Not Available

9

BOLT

7512315

$9,44 Unit Price incl. VAT

10

MOUNT-RUBBER 45 DURO

5412248

9999999

Not Available

11

WASHER

7555823

$7,34 Unit Price incl. VAT

12

CLUTCH INTAKE BOOT

5411721

9999999

Not Available

13

NARROW BAND CLAMP

7080511

$9,44 Unit Price incl. VAT

14

FUEL LINE;1/8 ID;100 CM.

8360009100

Not Available

15

FLAT WASHER

7555815

$7,34 Unit Price incl. VAT

16

MOUNT RUBBER REAR 60 DURO

3021119

9999999

Not Available

17

MOUNT ENGINE REAR BLK

1013133067

Not Available

18

SCREW

7517289

9999999

Not Available

19

SCREW

7515417

9999999

Not Available

20

MOUNT-LOWER FRONT ENG;PLTD

5247342

9999999

Not Available

21

MOUNT RUBBER ENGINE 45 DURO

3021181

9999999

Not Available

22

BUSHING

5430261

$13,64 Unit Price incl. VAT

23

WASHER

5210748

$7,34 Unit Price incl. VAT

24

WASHER LOCK

7575202

$9,44 Unit Price incl. VAT

25

BOLT

7512566

9999999

Not Available

26

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

27

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

28

LINE FUEL-1/4 DP SAE J30R9

8450103

8450117-250

$99,74 Unit Price incl. VAT

29

NYLOK NUT

7546601

$2,09 Unit Price incl. VAT

30

SMALL IN-LINE FILTER

2530009

$12,59 Unit Price incl. VAT

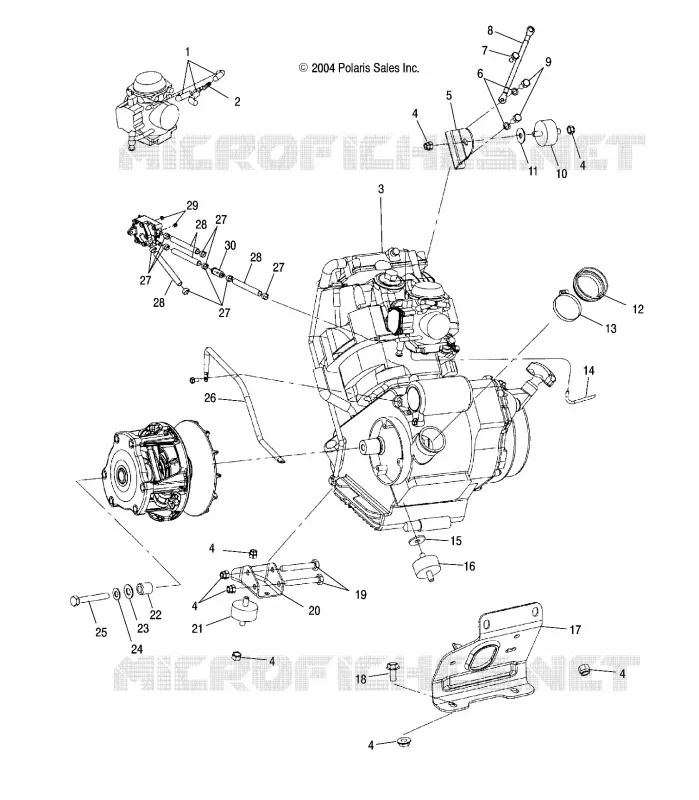

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
