GEARCASE ASM SHAFT MAG 500
1341363
9990000
Not Available
1
TRIPLE LIP SEAL
3233788
$57,74 Unit Price incl. VAT
2
SCREW
3233252
$9,44 Unit Price incl. VAT
3
GEARCASE LH
3233610
Not Available
4
KNOCK PIPE
3233529
9999999
Not Available
5
BEARING
3233019
$54,59 Unit Price incl. VAT
6
SHAFT-INPUT
3233756
9999999
Not Available
7
SILENT CHAIN
3233036
9999999
Not Available
8
GEAR-16T W/19T SPLINE
3233770
9999999
Not Available
9
BEARING
3233018
$47,24 Unit Price incl. VAT
10
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
11
WASHER
3233054
9999999
Not Available
12
BELLCRANK
3233153
$62,99 Unit Price incl. VAT
13
RETAINING RING
3233045
$9,44 Unit Price incl. VAT
14
WASHER
3233040
9999999
Not Available
15
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
16
VENT
3233037
9999999
Not Available
17
SCREW
3233749
$10,49 Unit Price incl. VAT
18
SWITCH
3233615
9999999
Not Available
19
GEARCASERH
3233902
9999999
Not Available
20
OIL FILL PLUG
3233711
9999999
Not Available
21
WASHER
3233324
9999999
Not Available
22
WASHER
3233628
9999999
Not Available
23
ENGAGEMENT DOG;LOW
3233629
9999999
Not Available
24
RETAINING RING
3233306
$9,44 Unit Price incl. VAT
25
WASHER THRUST
3233619
$36,74 Unit Price incl. VAT
26
GEAR 35T
3233631
9999999
Not Available
27
BEARING; NEEDLE
3233103
$54,59 Unit Price incl. VAT
28
SHIFT FORK
3233602
9999999
Not Available
29
SHAFT REVERSE
3233598
9999999
Not Available
30
WASHER
3233012
9999999
Not Available
31
NEEDLE BEARING
3233014
$74,54 Unit Price incl. VAT
32
SPROCKET 24T
3233599
9999999
Not Available
33
RING RETAINING
3233029
9999999
Not Available
34
DOG ENGAGE 12PT HI/REV
3233533
9999999
Not Available
35
GEAR; 30T
3233600
9999999
Not Available
36
SPACER
3233613
9999999
Not Available
37
GEARHELICAL40T
3233601
9999999
Not Available
38
BRACKET INTERLOCK
3233309
9999999
Not Available
39
SPRING
3233032
9999999
Not Available
40
PIN INTERLOCK
3233308
9999999
Not Available
41
SCREW-TAPPING W/LOCK WASHER
3233747
9999999
Not Available
42
GEAR HELICAL 44T
3233612
9999999
Not Available
43
SCREW
3233608
9999999
Not Available
44
COVER BEARING
3233609
9999999
Not Available
45
SNAP RING
3233106
$10,49 Unit Price incl. VAT
46
BALL BEARING
3233607
9999999
Not Available
47
SHAFT 10T
3233606
9999999
Not Available
48
SHIFT FORK LOW
3233605
9999999
Not Available
49
SWITCH ITW 2 POSITION
3233617
9999999
Not Available
50
SPROCKET 12T
3233620
9999999
Not Available
51
GEARSPIRAL BEVEL 31T
3233621
9999999
Not Available
52
SHAFT REAR OUTPUT
3233622
9999999
Not Available
53
BUTTON THRUST
3233582
$13,64 Unit Price incl. VAT
54
SHIM; .450 X .265
3233583
$52,49 Unit Price incl. VAT
55
COVER-OUTPUT FRONT
3233781
9999999
Not Available
56
HEX FLANGE PLUG
3233777
9999999
Not Available
57
PLUG WASHER
3233254
$14,69 Unit Price incl. VAT
58
SHIM KIT
3233611
$52,49 Unit Price incl. VAT
59
OUTPUT SHAFT; FRONT
3233625
$262,49 Unit Price incl. VAT
60
SPROCKET (12T)
3233093
9999999
Not Available
61
ROLLER CHAIN24P
3233626
9999999
Not Available
62
GARLOCK BUSHING
3233552
$41,99 Unit Price incl. VAT
63
SHIFT SHAFT
3233624
9999999
Not Available
64
SHIFT SHAFT
3233627
9999999
Not Available
65
O-RING
3233548
9999999
Not Available
66
RING RETAINING
3233618
9999999
Not Available

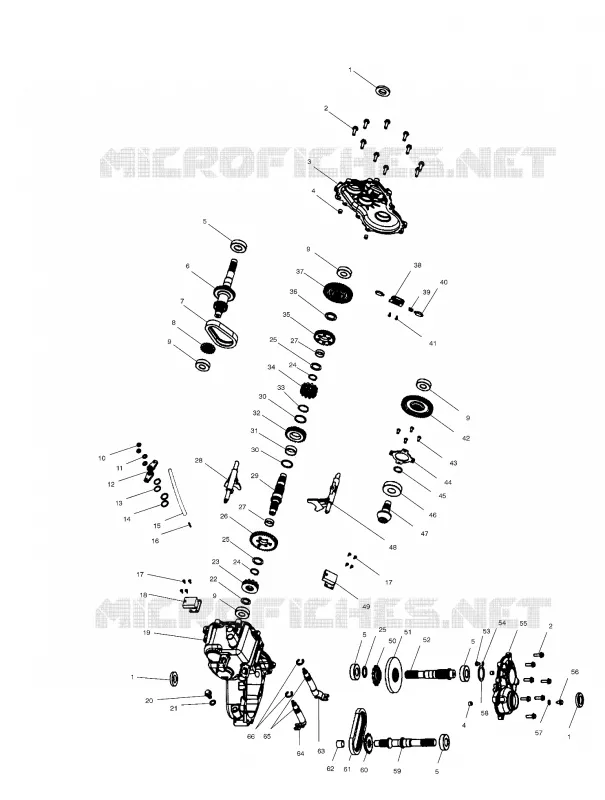

Find the detailed GEARCASE (NOT ALL INTERNAL SERVICE PARTS ARE READILY AVAILABLE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
