DRIVE TRAIN, FRONT GEARCASE INTERNALS (FROM 1/5/16) for POLARIS ACE 570 EFI HD from 2016

DRIVE TRAIN, MAIN GEARCASE (TO 3/16/16)

DRIVE TRAIN, MAIN GEARCASE (FROM 3/16/16)

DRIVE TRAIN, FRONT GEARCASE INTERNALS (FROM 1/5/16)

1

ASM-GEARCASE SEAL FRONT DRIVE

1333491

1337622

Not Available

2

OUTPUT COVER ASSEMBLY

3235799

3236656

$965,99 Unit Price incl. VAT

3

OUTPUT HUB ASSEMBLY

3235522

3236676

$955,49 Unit Price incl. VAT

4

FASTENER KIT

3235170

$34,64 Unit Price incl. VAT

5

K-SEAL REPAIR

3235800

3236685

$183,74 Unit Price incl. VAT

6

PLATE-4WD ARMATURE

3235485

3236048

$209,99 Unit Price incl. VAT

7

PINION BEARING

3235174

$135,44 Unit Price incl. VAT

8

CAGE ROLLER

3235624

$12,59 Unit Price incl. VAT

9

ROLL CAGE ASSEMBLY

3235625

$325,49 Unit Price incl. VAT

10

GEARCASE KIT ASSEMBLY

3235801

3236686

$624,74 Unit Price incl. VAT

11

DRAIN PLUG

2203738

$68,24 Unit Price incl. VAT

12

FILL PLUG

2203739

$83,99 Unit Price incl. VAT

13

PINION GEAR HOUSING ASSEMBLY KIT

3235623

3239869

$932,39 Unit Price incl. VAT

14

TORISON SPRING AND RETAINER KIT

3235712

$68,24 Unit Price incl. VAT

15

ARMATURE PLATE; BD

3235626

$188,99 Unit Price incl. VAT

16

SHAFT SEAL OUTPUT

3235829

$78,74 Unit Price incl. VAT

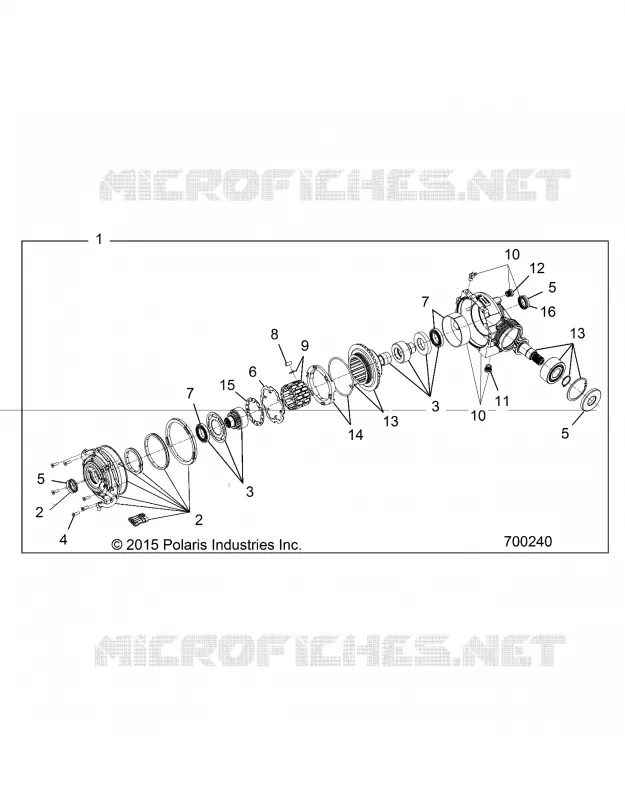

Find the detailed DRIVE TRAIN, FRONT GEARCASE INTERNALS (FROM 1/5/16) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
