CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301035A)
by
FUEL PUMP XLT/0930767,XLT SP/0930667 XLT SKS/0930567 (4923012301037A)
CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A)
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130439
$27,29 Unit Price incl. VAT
3
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET
3130374
9999999
Not Available
6
VALVE THROTTLE 2.0 (2.0)
3130464
Not Available
7
NEEDLE JET(Q-2)
3130376
9999999
Not Available
8
CAP
3130386
Not Available
9
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
10
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
11
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
12
SPRING
3130010
$18,89 Unit Price incl. VAT
13
SCREW THROTTLE STOP
3130009
9999999
Not Available
14
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
15
SPRING AIR ADJUST
3130012
9999999
Not Available
16
JET PILOT #35(10)
3130066
9999999
Not Available
17
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
18
HOSE CLAMP
7080236
$3,14 Unit Price incl. VAT
19
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
20
PLUG TRAP
5431001
5431893
$26,24 Unit Price incl. VAT
21
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
22
NIPPLE
3130387
9999999
Not Available
23
O-RING
3130239
9999999
Not Available
24
JET; MAIN
3130123
9999999
Not Available
25
WASHER
3130014
$3,14 Unit Price incl. VAT
26
CARBURETOR
3130463
9999999
Not Available
27
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
28
CAP
3130237
$8,39 Unit Price incl. VAT
29
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
30
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
31
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
32
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
33
PIN; FLOAT
3130235
3130361
$18,89 Unit Price incl. VAT

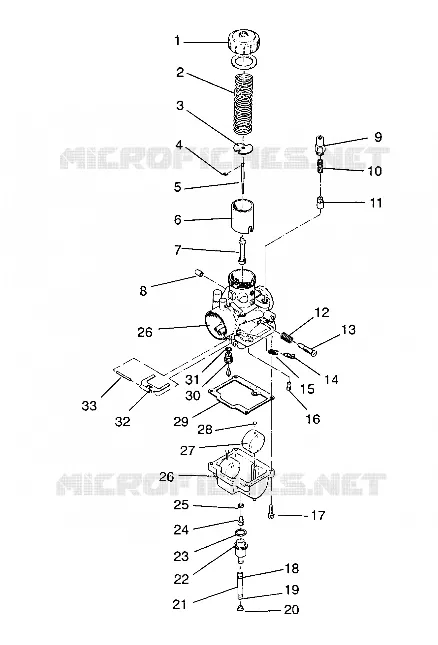

Find the detailed CARBURETOR XLT/0930767,XLT SP/0930667 XLT SKS/09305673 (4923012301036A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
