1
Engine displacement
autre
2
Year
1996
3
Trim
XLT RMK - 0960956
4
Parts Catalog
CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D004)
5
Parts Diagram
Parts Catalog
FUEL PUMP XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181C013)
by
ACCS SYSTEM XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D005)
CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D004)
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
SPRING THROTTLE
3130439
$27,29 Unit Price incl. VAT
3
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET
3130374
9999999
Not Available
6
VALVE THROTTLE 2.0 (2.0)
3130464
Not Available
7
NEEDLE JET(Q-6)
3130618
9999999
Not Available
8
CAP
3130479
$31,49 Unit Price incl. VAT
9
CARBURETOR 2 (Incl. 1-22 17-9) Center
3130634
Not Available
9
CARBURETOR #1 (Incl. 1-22 17-9) PTO & Mag
3130631
Not Available
10
JET (PAJ1) (PAJ1)
3130632
Not Available
11
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
12
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
13
NEEDLE VALVE PACKING
3130017
$7,34 Unit Price incl. VAT
14
VALVE NEEDLE
3130016
3131146
$99,74 Unit Price incl. VAT
15
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
16
CAP
3130237
$8,39 Unit Price incl. VAT
17
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
18
WASHER
3130014
$3,14 Unit Price incl. VAT
19
JET MAIN HX.HD#190(10)
3130121
9999999
Not Available
20
O-RING
3130239
9999999
Not Available
21
NIPPLE
3130573
$68,24 Unit Price incl. VAT
22
DESC NOT_AVAILABLE
8450045600
Not Available
23
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
24
CLAMP HOSE
7080544
9999999
Not Available
25
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
26
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
27
JET PILOT #35(10)
3130066
9999999
Not Available
28
JET (PAJ2) (PAJ2)
3130633
Not Available
29
CAP Substituted by 3130379
3130622
Not Available
30
SCREW THROTTLE STOP
3130009
9999999
Not Available
31
SPRING
3130010
$18,89 Unit Price incl. VAT
32
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT

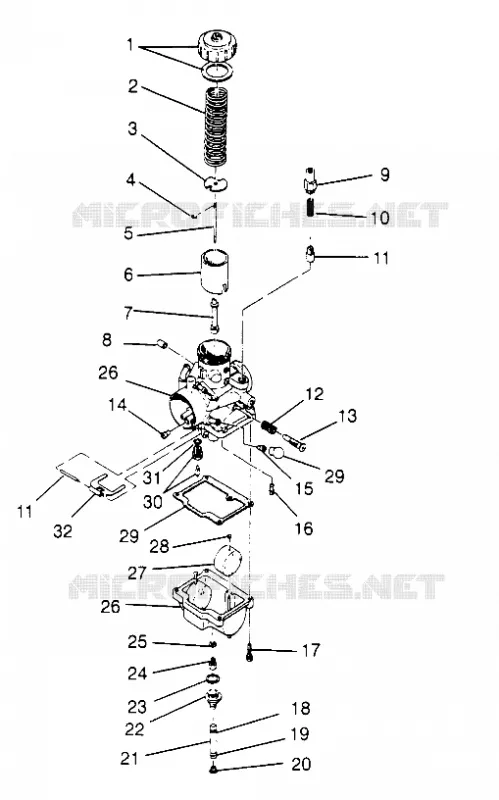

Find the detailed CARBURETOR XLT RMK 0960956, XLT SKS 0960556 AND EUROPEAN XLT SKS E960556 (4931813181D004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
