WISHBONES for POLARIS MAGNUM 330 2X4 - A03CB32AA from 2003

WISHBONES

1

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

2

WASHER WROUGHT

7558403

$9,44 Unit Price incl. VAT

3

SEAL BOOT ROD END 1/2 IN

5411291

5412928

$20,99 Unit Price incl. VAT

4

ROD END;RH

7061034

7061139

$115,49 Unit Price incl. VAT

5

NUT-JAM(10)

7542711

$4,19 Unit Price incl. VAT

6

TIE ROD

5020927

$83,99 Unit Price incl. VAT

7

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

8

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

9

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

10

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

11

TIE ROD 1/2-20X14.0 ASM.

1820806

1822851

$204,74 Unit Price incl. VAT

12

WASHER

7556099

$3,14 Unit Price incl. VAT

13

NUT-M10X1.25-HX-LOCK-Y

7547177

7548155

$1,56 Unit Price incl. VAT

14

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

15

BRACKET BALLJOINT

5240717

9999999

Not Available

16

SOCKET BOLT

7512284

$2,09 Unit Price incl. VAT

17

CASTLE NUT

7542438

$3,14 Unit Price incl. VAT

18

BOOT; RUBBER

5410548

5412658

$9,44 Unit Price incl. VAT

19

BALL-JOINT 52 DEG

7080927

7061306

$52,49 Unit Price incl. VAT

20

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

21

BUSHING-A-ARM LONG BLK

5434551

5436973

$9,44 Unit Price incl. VAT

22

KIT-A-FRAME RH(1541865)

2202277

2202277-067

$225,74 Unit Price incl. VAT

22

KIT-A-FRAME LH(1541864)

2202276

2202276-067

$225,74 Unit Price incl. VAT

23

SHAFT-A-ARM(4X4)

5133806

$52,49 Unit Price incl. VAT

24

SCREW

7512492

$2,09 Unit Price incl. VAT

25

LOCK WASHER

7571611

9999999

Not Available

26

BOLT-3/8-24X4 SPECIAL FLANGE-Y (10)

7518033

9999999

Not Available

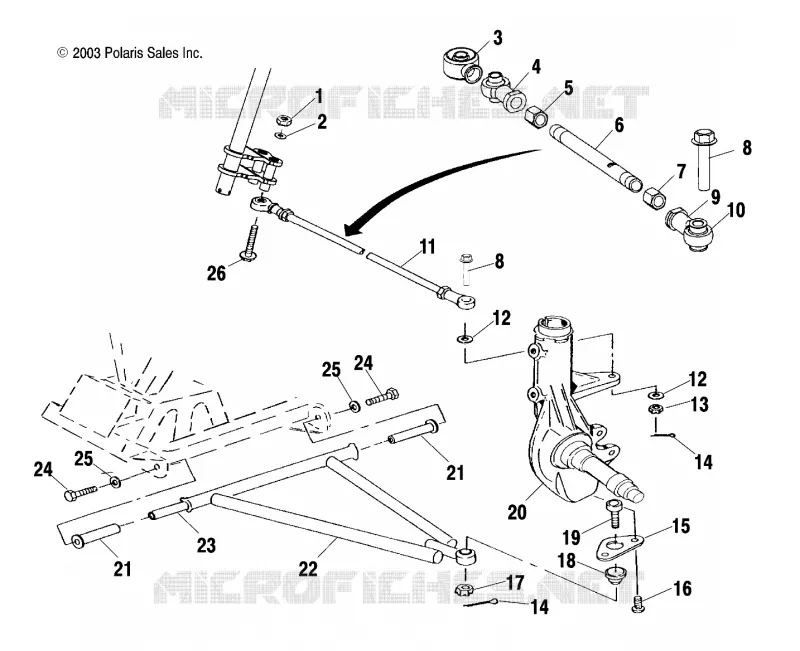

Find the detailed WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
