1
Engine displacement
700
2
Year
1998
3
Trim
700 RMK - 0980966
4
Parts Catalog
ENGINE MOUNTING 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C003)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C002)
by
EXHAUST SYSTEM 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C004)
ENGINE MOUNTING 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C003)
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
13
13
13
14
15
15
16
17
17
18
19
19
19
19
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
13
13
13
14
15
15
16
17
17
18
19
19
19
19
19
19
19
20
20
20
20
21
22
23
24
25
26
27
28
29
1
SCREW SPEC.CLUTCH
7517347
9999999
Not Available
2
WASHER
7556003
$11,54 Unit Price incl. VAT
3
CABLE THROTTLE TWIN
7080721
9999999
Not Available
4
SHORT B SN70-70LSDC-01 [No Longer Available] (SN70-70LCDC-01) (See Footnote)
2201138
Not Available
5
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
6
WASHER(10)
7555944
9999999
Not Available
7
RING-E RET.
7710427
9999999
Not Available
8
FLEX LOCK; NUT
7547008
$11,54 Unit Price incl. VAT
9
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
10
HANDLE RECOIL
5431499
9999999
Not Available
11
MOUNT ENGINE
3110072
9999999
Not Available
12
NUT
7547022
9999999
Not Available
13
CLAMP
7080603
$3,14 Unit Price incl. VAT
14
PLATE ENG.MOUNT
5241588
Not Available
15
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
16
BOLT
7512539
$7,34 Unit Price incl. VAT
17
LINE FUEL 82 CM.
845006182
Not Available
18
VALVE CHECK IN-LINE
7051019
Not Available
19
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
20
FUEL LINE; 600 CM
8450040600
Not Available
21
PUMPFUEL
2520127
9999999
Not Available
22
FUEL FILTER
2530008
9999999
Not Available
23
BOLT
7517442
$12,59 Unit Price incl. VAT
24
WASHER
5210748
$7,34 Unit Price incl. VAT
25
BRACE ENGINE MT.
5211881
9999999
Not Available
26
VALVE FUEL SHUT-OFF
7052040
Not Available
27
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
28
ENGINE MOUNT
3110062
9999999
Not Available
29
PLATE SHIM SN70 ENGINE
5211894
9999999
Not Available

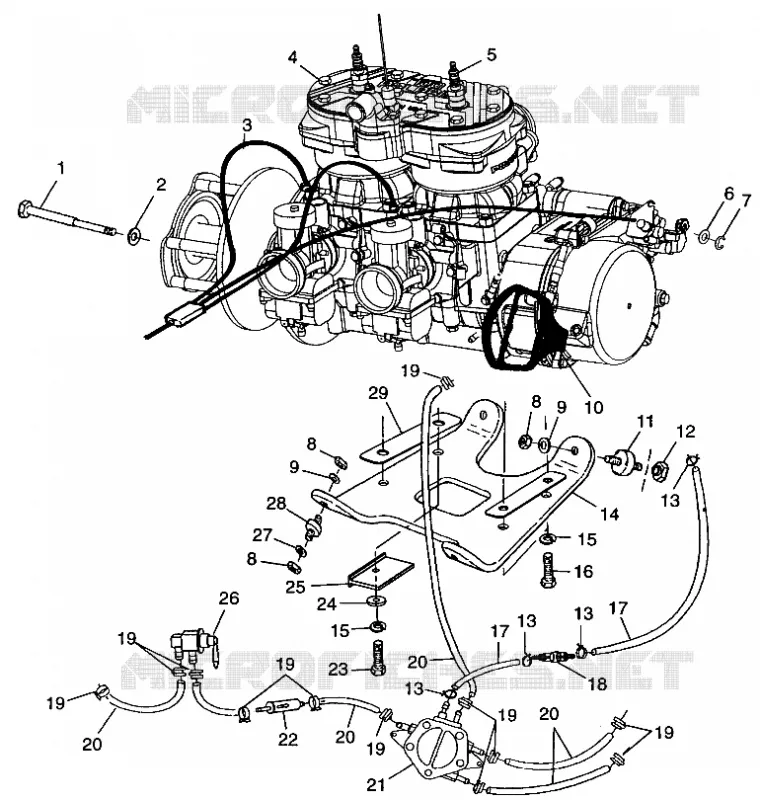

Find the detailed ENGINE MOUNTING 700 RMK 0980966 AND EUROPEAN 700 RMK E980966 (4943724372C003) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
