1
Engine displacement
700
2
Year
1997
3
Trim
700 RMK - 0970966
4
Parts Catalog
FRONT TORQUE ARM (RMK) 700 RMK 0970966 (4938573857B012)
5
Parts Diagram
Parts Catalog
BRAKE 700 RMK 0970966, 700 SKS 0970566, AND EUROPEAN 700 SKS E970566 (4938573857B007)
by
FRONT TORQUE ARM (SKS) 700 SKS 0970566 AND EUROPEAN 700 SKS E970566 (4938573857B013)
FRONT TORQUE ARM (RMK) 700 RMK 0970966 (4938573857B012)
1
2
3
4
4
5
5
5
6
6
7
8
8
9
10
11
12
13
14
14
16
17
17
14
19
19
20
20
21
21
22
14
24
1
2
3
4
4
5
5
5
6
6
7
8
8
9
10
11
12
13
14
14
16
17
17
14
19
19
20
20
21
21
22
14
24
1
2
3
4
4
5
5
5
6
6
7
8
8
9
10
11
12
13
14
14
16
17
17
14
19
19
20
20
21
21
22
14
24
1
SCREW SEMS
7517236
9999999
Not Available
2
SHAFT
5020908
9999999
Not Available
3
Desc not available [No Longer Available]
1541158067
Not Available
4
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
5
WASHER
7555716
$3,14 Unit Price incl. VAT
6
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
7
EYE BOLT
7010050
9999999
Not Available
8
WASHER FLAT(10)
7555893
$1,56 Unit Price incl. VAT
9
RETAINER SPRING
5241276067
Not Available
10
SPRING SHIELD
5430671
9999999
Not Available
11
SHOCK F.TRK X10 136
7041606
9999999
Not Available
12
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
13
COMPRESSION SPRING MEDIUM GLOSS BLACK
7041253067
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
SPACER OUTER
5332784
9999999
Not Available
17
BUSHING
7556301
$6,29 Unit Price incl. VAT
18
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
19
SCREW
7515415
9999999
Not Available
20
NUT LOCK
7542403
9999999
Not Available
21
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
22
STRAP LIMITER FRONT
5411045
9999999
Not Available
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
NUT NYLOK
7542344
$7,34 Unit Price incl. VAT

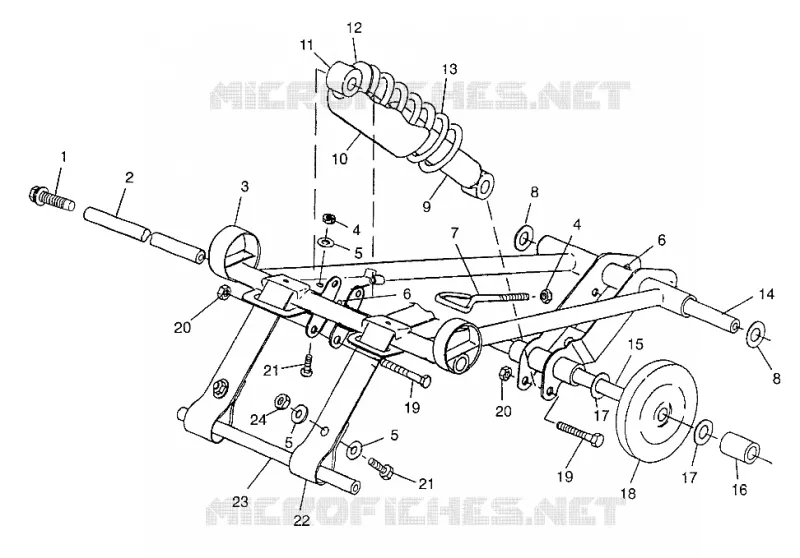

Find the detailed FRONT TORQUE ARM (RMK) 700 RMK 0970966 (4938573857B012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
